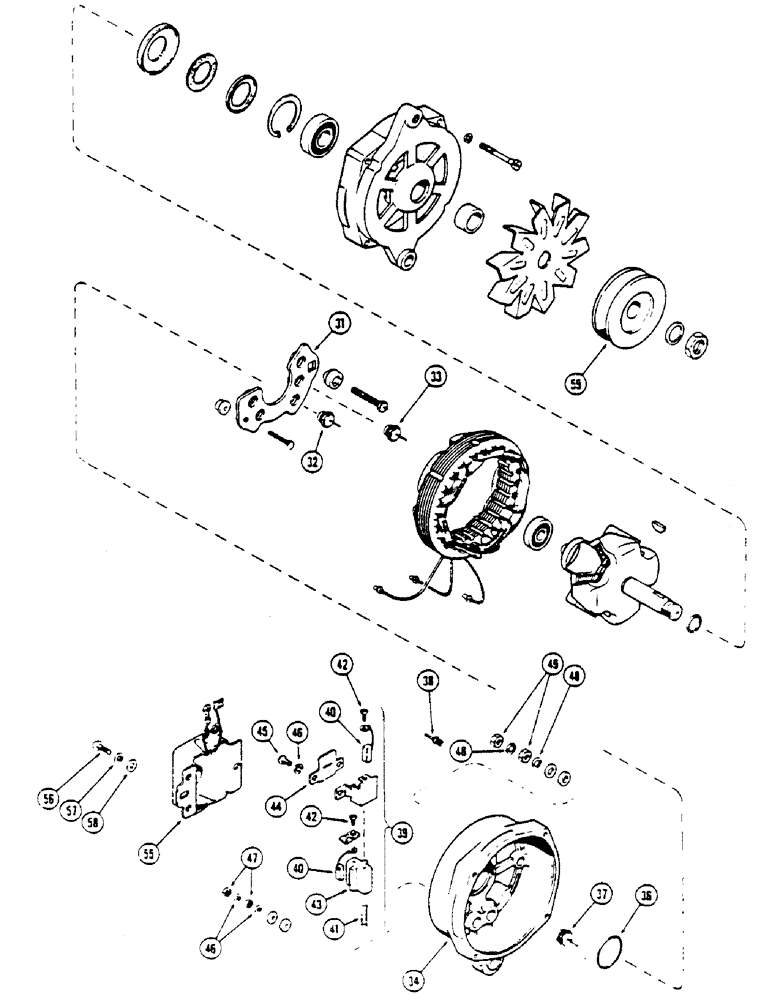

Запчасти Case IH 1175 (069A) - A137183 ALTERNATOR, PRESTOLITE (04) - ELECTRICAL SYSTEMS

A45304

ALTERNATOR

ALTERNATOR ASSY. - , Includes: Ref. 31 - 49 and Ref. 1 - 30 on Fig. 68

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

A47625

ALTERNATOR

Alternator - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

31

A44349

PLATE ASSY.

HEAT SINK ASSY. - diode (Replaces A42265), Includes: Ref. 32 and 33

1шт.

32

A42773

HEAD (CYLINDER)

DIODE - positive (Replaces A41075)

3шт.

33

A42261

DIODE

KIT - output diode (matched set of 2)

1шт.

34

A45321

HEAD ASSY.

HEAD ASSY. - slip ring, Includes: Ref. 36 - 38

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - sealing

1шт.

37

A44180

KIT

DIODE - negative (Replaces A41071) (Set of 4)

3шт.

38

A42266

KIT

PLUG KIT - (Set of 10)

1шт.

39

A43952

HOLDER

HOLDER ASSY. - brush (Replaces A42495), Includes: Ref. 40 and 41

1шт.

40

A41063

BRUSH, COMMUTATOR

BRUSH BRUSH KIT - armature (Set of 2)

1шт.

41

A41064

VALVE SPRING

SPRING KIT - brush (Set of 2)

1шт.

44

A41073

COVER

INSULATION - cover, brush holder

1шт.

45

182-1012

SCREW,Rnd Hd, #10 - 24 x 3/8"

SCREW - #10-24 x 3/8" rd. hd.

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

47

129-667

NUT,#10-32, LH

NUT - #10-32 hex. jam

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

NUT - 1/4" N.F. hex.

2шт.

55

A44543

REGULATOR

REGULATOR ASSY. - voltage (Replaces A42098), Includes: Ref. 42 and 43

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - brush retainer

2шт.

43

NSS

NOT SOLD SEPARAT

CLIP - brush holder

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW - regulator mounting

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER - plain

2шт.

59

A42267

DRIVE

PULLEY - drive

1шт.
