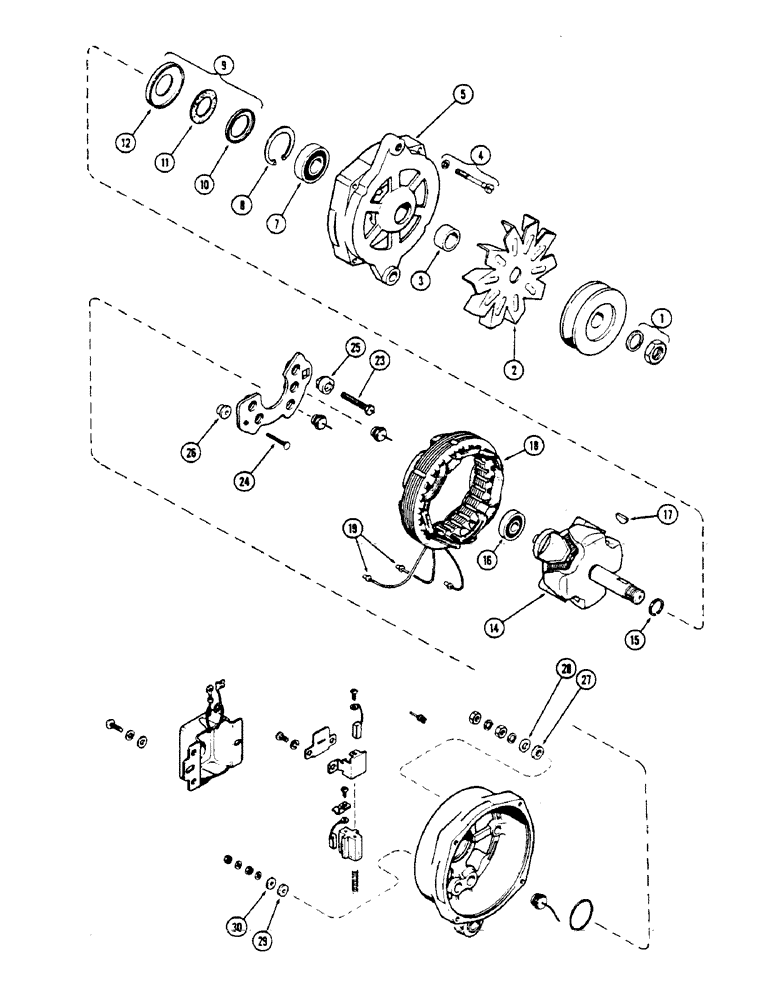

Запчасти Case IH 1175 (068) - A137183 ALTERNATOR, PRESTOLITE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A137183
ALTERNATOR
ALTERNATOR ASSY. - (w/2 mtg. feet) (Eltra #ALH-7321) (Order 1-A45304 alternator, 1-A42267 pulley and 1-A44543 regulator) (Production Only) (Replaces A61062), Includes: Ref. 1 - 30 and Ref. 31 - 49 on Fig. 69A
1шт.
A45304
ALTERNATOR
ALTERNATOR ASSY. - (w/2 mtg. feet) (Eltra #ALH-5321) (less pulley and regulator) (Repairs Only) (Replaces A42444 & A45237), Includes: Ref. 1 - 30 and Ref. 31 - 49 on Fig. 69A
1шт.
87297244
REMAN-ALTERNATOR
Remanufactured Alternator, 12 volt, 61 ampere,
1шт.
87297245
CORE-ALTERNATOR
Return Number, Alternator, 12 volt, 61 ampere,
1шт.
103801A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 61 AMP Alternator
1шт.
103801A1C
CORE-ALTERNATOR
Return Number, 12 VOLT, 61 AMP Alternator
1шт.
A47625
ALTERNATOR
ALTERNATOR - 12 Volt 72 ampere
1шт.
103804A1GV
ALTERNATOR
Value, 12V, 72A
1шт.
103804A1R
REMAN-ALTERNATOR
Reman For New PN A47625
1шт.
103804A1C
CORE-ALTERNATOR
Return Number
1шт.
ZAP804A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)
1шт.
1
A40581
KIT
KIT - nut & washer, rotor shaft
1шт.
2
A41066
FAN
FAN - ventilating
1шт.
3
A41078
BUSHING
SPACER - fan
1шт.
4
A41094
BOLT
BOLT KIT - through (Set of 4 w/washers)
1шт.
5
A44361
COVER
HEAD ASSY. - drive end (Replaces A42441), Includes: Ref. 7 - 12
1шт.
7
A42263
BALL
BEARING - ball
1шт.
8
NSS
NOT SOLD SEPARAT
RING - snap, bearing
1шт.
9
A42268
KIT
RETAINER KIT - seal, Includes: Ref. 10 - 12
1шт.
10
NSS
NOT SOLD SEPARAT
RETAINER - seal
1шт.
11
NSS
NOT SOLD SEPARAT
SEAL - felt
1шт.
12
NSS
NOT SOLD SEPARAT
RETAINER - felt
1шт.
14
A45323
ROTOR
ROTOR ASSY., Includes: Ref. 15 and 16
1шт.
15
A25626
RING
RING - snap
1шт.
16
A42270
BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"
BEARING - ball, sealed
1шт.
17
126-112
WOODRUFF KEY,#6, 5/32" x 5/8", HT
WOODRUFF KEY, #6, 5/32" x 5/8", HT
1шт.
18
A42271
STATOR
STATOR ASSY. - alternator
1шт.
19
A41065
KIT
KIT - wire end (Set of 6)
1шт.
A41080
KIT
STUD KIT - terminal, Includes: Ref. 23 - 30
1шт.
23
NSS
NOT SOLD SEPARAT
STUD - battery terminal
1шт.
24
NSS
NOT SOLD SEPARAT
STUD - auxiliary terminal
1шт.
25
NSS
NOT SOLD SEPARAT
BUSHING - insulation, battery terminal
1шт.
26
NSS
NOT SOLD SEPARAT
BUSHING - insulation, auxiliary terminal
1шт.
27
NSS
NOT SOLD SEPARAT
WASHER - insulating, battery term.
1шт.
28
NSS
NOT SOLD SEPARAT
WASHER - plain, battery term
1шт.
29
NSS
NOT SOLD SEPARAT
WASHER - insulating, auxiliary term
1шт.
30
NSS
NOT SOLD SEPARAT
WASHER - plain, auxiliary term
1шт.
Выбрано товаров: 37
