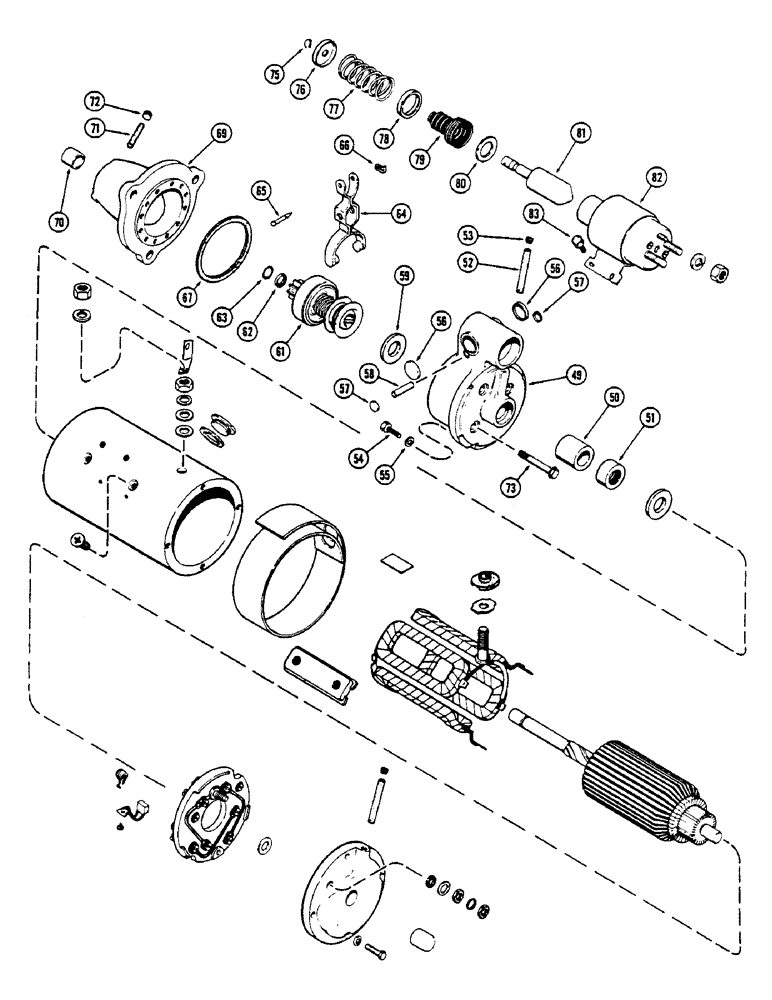

Запчасти Case IH 1175 (065A) - A59217 STARTER, USED PRIOR TO TRACTOR SERIAL NUMBER 8696753 (04) - ELECTRICAL SYSTEMS

A59217

STARTER MOTOR

ASSY, Includes Ref. 49 - 83 and Ref. 2 - 47 on Fig. 64

1шт.

49

A42325

SPARE PART ASSY, shift lever, Includes Ref. 50 - 53

1шт.

50

A40944

BUSHING

Armature

1шт.

51

A25407

OIL SEAL

Oil

1шт.

52

A41417

WICK

Oil

1шт.

53

221-1849

PLUG

Oil, 1/8" headless slotted

1шт.

54

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

55

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

5шт.

56

A42013

PLUG

Expansion, 1-3/16" dia.

2шт.

57

A42064

PLUG

Expansion, 5/8" dia.

2шт.

58

A25402

STUD

SHAFT - shift lever

1шт.

59

R15043

WASHER

Brake (25/32 x 2 x 3/32")

1шт.

61

A42331

DRIVE

ASSY, starter

1шт.

62

R15049

COLLAR

Pinion stop

1шт.

63

R15048

RING

Retainer, pinion stop

1шт.

64

A25398

LEVER

Shift

1шт.

65

A25400

PIN

Shift, Serial Range: lever-plunger

1шт.

66

A25406

OIL SEAL

RETAINER - shift lever pin

1шт.

67

A41508

GASKET

Drive housing

1шт.

69

A25347

SPARE PART ASSY, starter drive, Includes Ref. 70

1шт.

70

A40868

BUSHING

Armature shaft

1шт.

71

R15023

WICK

Oil

1шт.

72

221-1041

PLUG

Oil, 1/8" slotted

1шт.

73

A42012

BOLT (SPREADER),5/16" x 2 13/32"

SCREW - lever housing to drive housing

4шт.

75

G46146

SNAP RING,#37, Ext

Plunger

1шт.

76

R21571

RETAINER

Spring (outer w/13/32" hole)

1шт.

77

A41242

SPRING

Return, plunger

1шт.

78

A43380

BACK-UP RING

RETAINER - spring (inner w/1-13/64" hole)

1шт.

79

A42308

BOOT

Solenoid

1шт.

80

A42008

WASHER

Retainer (31/32 x 1-7/16 x 1/32")

1шт.

81

A25394

PLUNGER

Solenoid

1шт.

82

REF

INSTRUCTION

SOLENOID ASSY. - (See Figure 066)

1шт.

83

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

Solenoid to housing

2шт.
