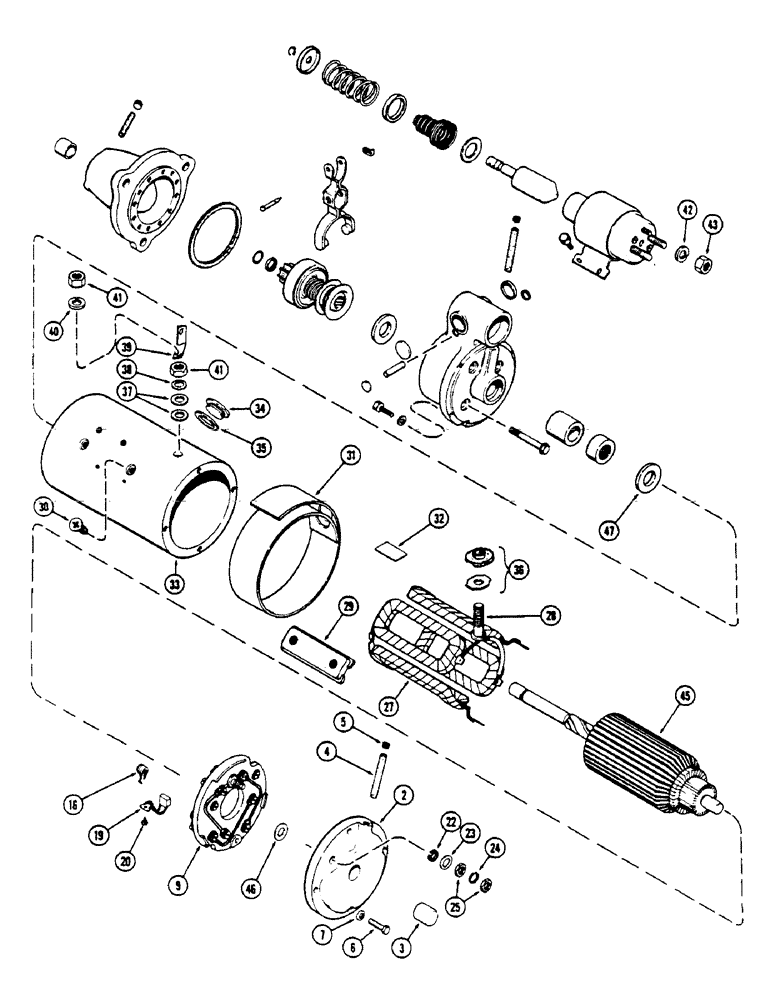

Запчасти Case IH 1175 (064) - A59217 STARTER, USED PRIOR TO TRACTOR SERIAL NUMBER 8696753 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A59217
STARTER MOTOR
STARTER ASSY. - (Delco #1113689) (Order 1-A64907 starter, 2-113-483 bolts, 1-166-94 screw and 3-L30674 washers), Includes: Ref. 2 - 47 and Ref. 50 - 83 on Fig. 66
1шт.
2
A42341
FRAME
ASSY. - commutator end, Includes: Ref. 3 - 5
1шт.
3
A42323
BUSHING
- frame
1шт.
4
R15023
WICK
- oil
1шт.
5
222-1041
PLUG - oil hole, 1/8" slotted hd.
1шт.
6
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
4шт.
7
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
9
A42786
LARGE PLATE
PLATE ASSY. - brush, Oncludes: Ref. 16
1шт.
16
A42333
SPRING
- brush
4шт.
19
A40891
BRUSH, COMMUTATOR
BRUSH ASSY.
4шт.
20
174-211
SCREW,Sl Rnd Hd, #8 - 32 x 5/16"
- brush, #8-24 x 5/16" rd. hd.
4шт.
22
A42085
BUSHING
WASHER - rubber, commutator end
1шт.
23
R15013
WASHER
- terminal, 25/64 x 11/16 x 1/16"
1шт.
24
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
27
A42332
COIL
ASSY. - field, Includes: Ref. 28
1шт.
28
A40896
STUD
- field terminal
1шт.
29
R15115
SHOE
- pole
4шт.
30
A42127
SCREW,3/8" - 24 x 0.20"
- pole shoes
8шт.
31
A42342
INSULATOR
- field terminal
1шт.
32
A42327
INSULATOR
- field coil
2шт.
33
NSS
NOT SOLD SEPARAT
FRAME - field
1шт.
34
R21587
PLUG
- inspection hole
1шт.
35
A41924
GASKET
- plug
1шт.
36
A41925
BUSHING
PACKING - terminal
1шт.
37
D30005
INSULATOR
WASHER - insulator, term. stud
2шт.
38
D30006
WASHER
- plain, term. stud
1шт.
39
NLS
NO LONGER SERVICED
CONNECTOR - field, Serial Range: term.-solenoid
1шт.
40
192-113
LOCK WASHER,1/2"
WASHER - lock, 1/2"
1шт.
41
129-145
JAM NUT,Jam, 1/2"-13, G5
1шт.
42
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
45
A40800
ARMATURE
- starter
1шт.
46
A41917
WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk
- armature, commutator end
1шт.
47
A42202
WASHER
- armature, drive end
1шт.
Выбрано товаров: 35
