Запчасти Case IH 1175 (063E) - A64907 STARTER, USED TRACTOR SERIAL NUMBERS 8896753 TO 8814501 (04) - ELECTRICAL SYSTEMS

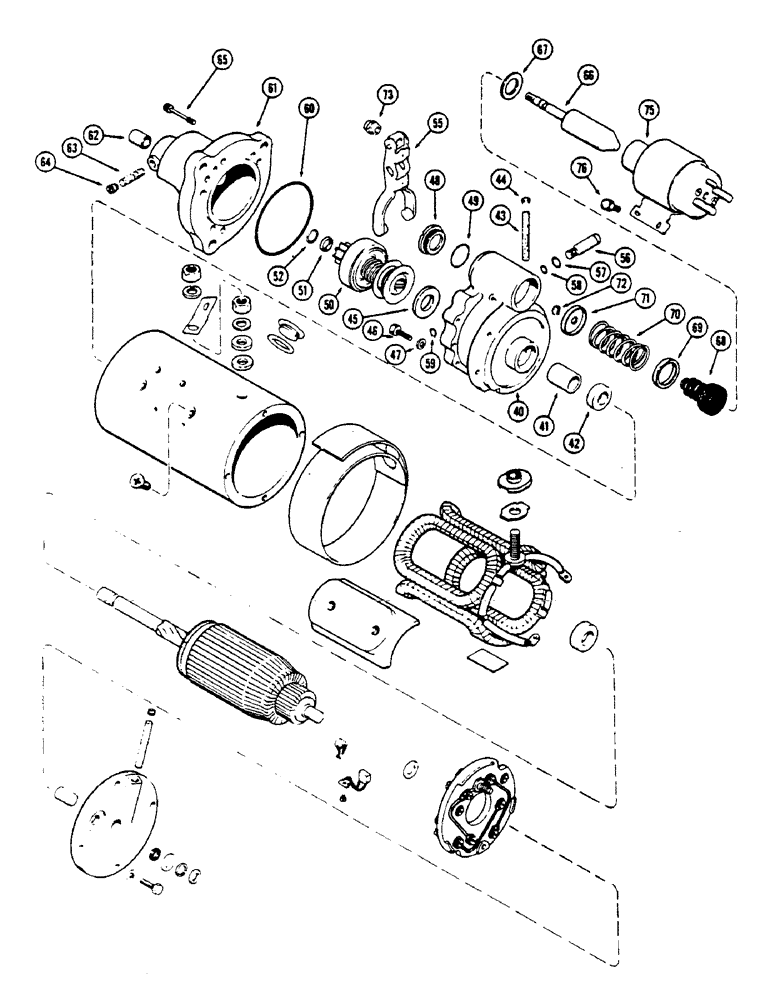

Схема запчастей Case IH 1175 - (063E) - A64907 STARTER, USED TRACTOR SERIAL NUMBERS 8896753 TO 8814501 (04) - ELECTRICAL SYSTEMS
42
65
52
48
55
46
45
67
64
66
43
49
68
73
57
75
60
62
59
63
69
51
56
41
61
70
71
47
44
76
72
58
40
50

Артикул

Название

Примечание

Количество

A64907

ELECTRIC MOTOR

STARTER ASSY, Includes Ref. 40 - 65 and Ref. 1 - 37 on Fig. 63C

1шт.

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104212A1C

CORE-STARTER

Return Part Number

1шт.

40

A43859

HOUSING

ASSY, shift lever, Includes Ref. 41 - 45

1шт.

41

A40944

BUSHING

3/4 x 7/8 x 3/4"

1шт.

42

A25407

OIL SEAL

Oil, 3/4 x 1-3/8 x 13/32"

1шт.

43

A41417

WICK

Oil

1шт.

44

221-1849

PLUG

1/8" hex. sckt. hd., pipe

1шт.

45

R15043

WASHER

Brake, 25/32 x 2 x 3/32"

1шт.

46

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Lever housing attaching

5шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

5шт.

48

R21587

PLUG

Inspection, lever housing

1шт.

49

A41924

GASKET

Plug, 1-23/64 x 1-9/16 x 3/32"

1шт.

50

A47106

DRIVE

ASSY, clutch (Replaces A42331)

1шт.

51

R15049

COLLAR

Pinion stop

1шт.

52

R15048

RING

Retainer, pinion stop

1шт.

55

A43852

LEVER

SHIFT, ASSY

1шт.

56

A43851

SHAFT

Shift lever

1шт.

57

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

23/64 x 33/64 x 1/16"

1шт.

56

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

15/64 x 25/64 x 1/16"

1шт.

59

G46146

SNAP RING,#37, Ext

Shift lever attaching pin

1шт.

60

A43854

O-RING,3.237" ID x 0.106" THK

Lever housing to drive housing

1шт.

61

A43858

HOUSING

ASSY, drive, Includes Ref. 62 - 64

1шт.

62

A40868

BUSHING

9/16 x 3/4 x 3/4"

1шт.

63

R15023

WICK

Oil

1шт.

64

221-1849

PLUG

1/8" hex. sckt. hd., pipe

1шт.

65

62-414

HEX SOC SCREW,1/4"-28 x 7/8"

Drive hsg. attaching

6шт.

66

A43857

PLUNGER

ASSY

1шт.

67

A41922

WASHER

53/64 x 1-3/8 x 1/32"

1шт.

68

A42308

BOOT

Plunger

1шт.

69

A43380

BACK-UP RING

RETAINER - spring, w/1-13/64" hole

1шт.

70

A41242

SPRING

Shift lever, 1-3/8" O.D. x 2-25/32" long

1шт.

71

A43419

SEAT

RETAINER - spring, w/13/32" hole

1шт.

72

G46146

SNAP RING,#37, Ext

Plunger spring retainer

1шт.

73

A43856

NUT

Plunger rod guide adjusting

1шт.

75

REF

INSTRUCTION

SOLENOID ASSY. - (See Figure 066)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

4шт.

Выбрано товаров: 37
