Запчасти Case IH 1175 (063A) - A145555 STARTER, FIRST USED TRACTOR SERIAL NUMBER 8814501 (04) - ELECTRICAL SYSTEMS

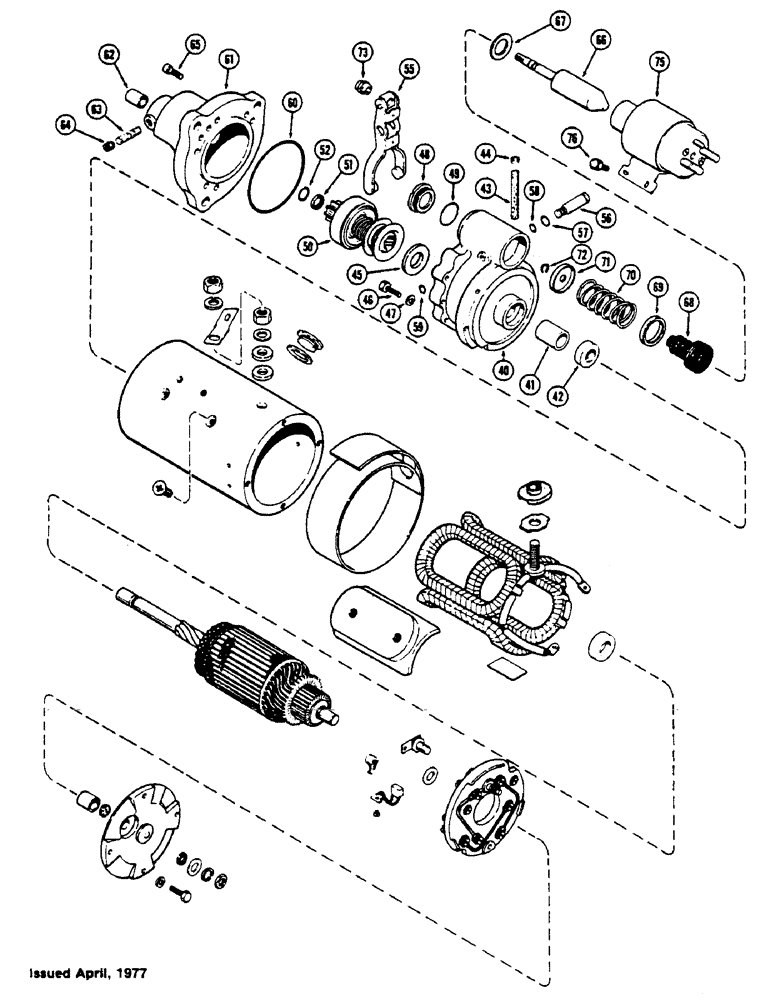

Схема запчастей Case IH 1175 - (063A) - A145555 STARTER, FIRST USED TRACTOR SERIAL NUMBER 8814501 (04) - ELECTRICAL SYSTEMS
40
65
64
62
60
45
47
42
58
67
55
52
49
44
55
69
68
70
46
73
51
59
75
57
50
41
61
56
76
63
48
43
72
71

Артикул

Название

Примечание

Количество

A145555

STARTING MOTOR

ASSY, Includes Ref. 40 - 76 and Ref. 1 - 37 on Fig. 62

1шт.

40

A43859

HOUSING

ASSY, shift lever, Includes Ref. 41 - 45

1шт.

41

A40944

BUSHING

HOUSING - 3/4 x 7/8 x 3/4"

1шт.

42

A25407

OIL SEAL

Oil, 3/4 x 1-3/8 x 13/32"

1шт.

43

A41417

WICK

Oil

1шт.

44

221-1849

PLUG

1/8" hex. sckt. hd., pipe

1шт.

45

R15043

WASHER

Brake, 25/32 x 2 x 3/32"

1шт.

46

D32484

SCREW,Hex, 1/4" - 28 x 1"

Lever housing attaching, 1/4 x 1" N.F. hex.

5шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

5шт.

48

R21587

PLUG

Inspection, lever housing

1шт.

49

A41924

GASKET

Plug, 1-23/64 x 1-9/16 x 3/32"

1шт.

50

A47106

DRIVE

ASSY, clutch

1шт.

51

R15049

COLLAR

Pinion stop

1шт.

52

R15048

RING

Retainer, pinion stop

1шт.

55

A43852

LEVER

SHIFT, ASSY

1шт.

56

A43851

SHAFT

Shift lever

1шт.

57

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

23/64 x 33/64 x 1/16"

1шт.

58

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

15/64 x 25/64 x 1/16"

1шт.

59

A40422

RING

Snap, shift lever attaching pin

1шт.

60

A43854

O-RING,3.237" ID x 0.106" THK

Lever housing to drive housing

1шт.

61

A43858

HOUSING

ASSY, drive, Includes Ref. 62 - 64

1шт.

62

A40868

BUSHING

9/16 x 3/4 x 3/4"

1шт.

63

R15023

WICK

Oil

1шт.

64

221-1849

PLUG

1/8" hex. sckt. hd., pipe

1шт.

65

A47141

SCREW,Hex, 1/4" - 28 x 7/8"

Drive hsg. attaching, 1/4 x 7/8" N.F. sckt. hd. cap

6шт.

66

A43857

PLUNGER

ASSY

1шт.

67

A41922

WASHER

53/64 x 1-3/8 x 1/32"

1шт.

68

A42308

BOOT

Plunger

1шт.

69

A43380

BACK-UP RING

RETAINER - spring, w/1-13/64" hole

1шт.

70

A41242

SPRING

Shift lever, 1-3/8" O.D. x 2-25/32" long

1шт.

71

A43419

SEAT

RETAINER - spring, w/13/32" hole

1шт.

72

A40422

RING

Snap, plunger spring retainer

1шт.

73

A43856

NUT

Plunger rod guide adjusting

1шт.

75

REF

INSTRUCTION

SOLENOID ASSY. - (See Figure 066)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

4шт.

Выбрано товаров: 35
