Запчасти Case IH 1175 (060) - PYROMETER KIT (04) - ELECTRICAL SYSTEMS

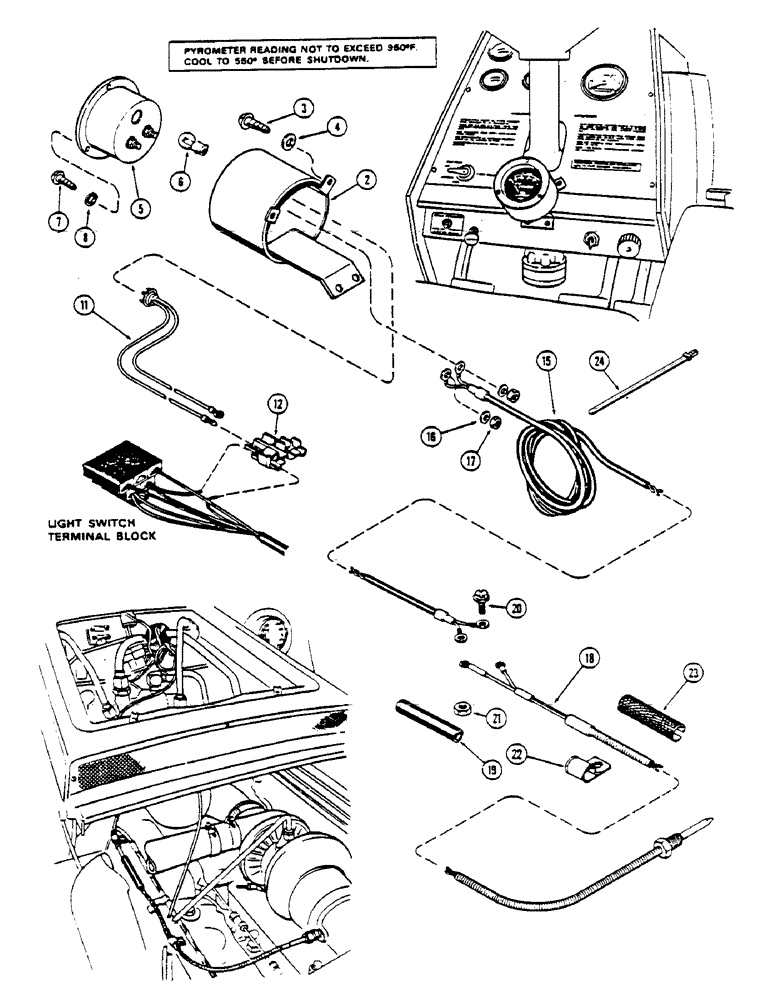

Схема запчастей Case IH 1175 - (060) - PYROMETER KIT (04) - ELECTRICAL SYSTEMS
4
6
5
2
11
8
20
23
24
18
17
12
16
19
22
3
21
7
15

Артикул

Название

Примечание

Количество

A139032

KIT

PYROMETER KIT - (Replaces A62554), Includes: Ref. 2 - 25

1шт.

2

A139453

TUBE

- mounting, pyrometer (Replaces A62558)

1шт.

3

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - #8-32 x 1/2" self-tapping

4шт.

4

A139021

ELECTRICAL GAUGE

PYROMETER - engine exhaust

1шт.

6

B50213

BULB

- 12 volt

1шт.

7

187-1104

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - #6-32 x 3/4" self-tapping

3шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

11

A139030

SOCKET/RECEPTACLE

WIRE - pyrometer light

1шт.

12

A62556

CONNECTOR, ELEC

CONNECTOR - bullet, light wire

1шт.

15

A139025

HARNESS

- wire

1шт.

16

195-12

WASHER,#10

- 1/4 x 1/2 x 1/16"

2шт.

17

129-27

NUT,Hex, #10 - 32

- N.C. hex #10-32

2шт.

18

A139024

PROBE

THERMOCOUPLE - pyrometer

1шт.

19

A139029

BOOT

- connector

1шт.

20

175-93

SCREW,Sl Truss Hd, #10 - 24 x 1/4"

- #10-24 x 1/4" truss hd.

2шт.

21

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

2шт.

22

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- lead wire

2шт.

23

A12458

SLEEVE

- wire harness

2шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire harness

1шт.

25

321-1778

DECAL

- pyrometer temperatures

1шт.

Выбрано товаров: 20
