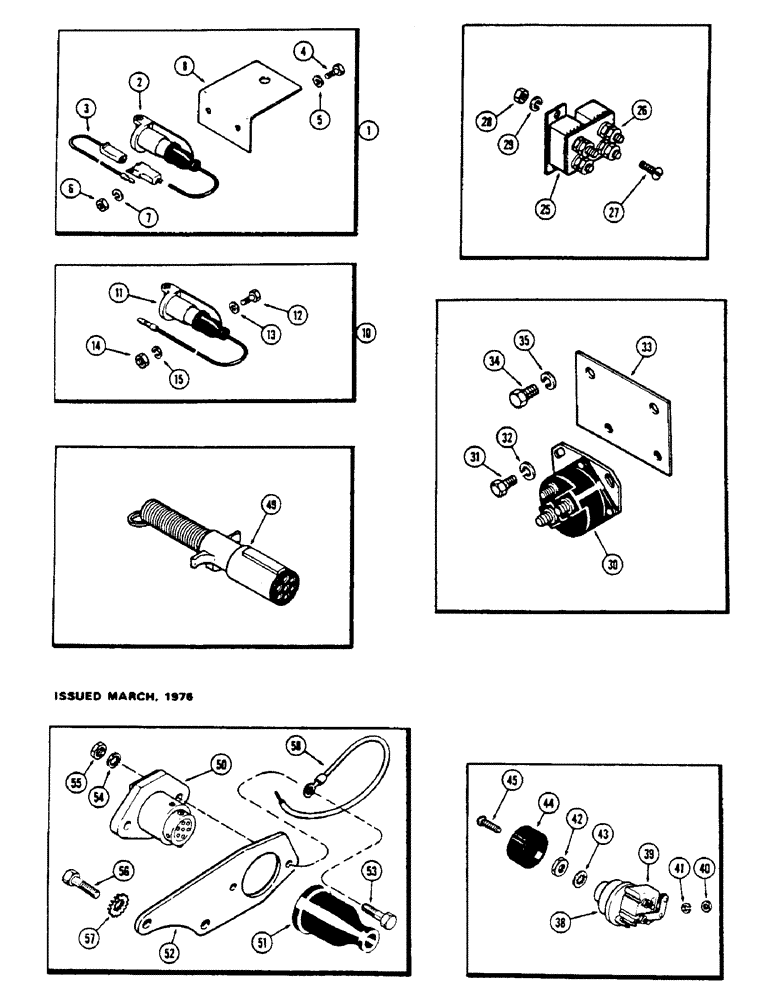

Запчасти Case IH 1175 (057C) - ELECTRICAL EQUIPMENT HARDWARE (04) - ELECTRICAL SYSTEMS

1

A61680

SCREW

SOCKET ATT. - auxiliary outlet (w/cab), Includes: Ref. 2 - 8

1шт.

2

A65059

SOCKET/RECEPTACLE

SOCKET - auxiliary electric outlet

1шт.

3

A65060

ELECTRICAL WIRE

WIRE - lead

1шт.

4

163-4

SCREW,Hex, #10 - 32 x 5/8"

- #10-32 x 5/8" N.F. hex.

2шт.

5

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16"

2шт.

6

129-37

NUT,#10-32

2шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

8

A61679

BRACKET - mounting, outlet socket

1шт.

10

A60512

SOCKET/RECEPTACLE

SOCKET ATT. - auxiliary outlet (w/o cab), Includes: Ref. 11 - 15

1шт.

11

A8170

SOCKET

- auxiliary electrical outlet

1шт.

12

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" hex.

2шт.

13

195-513

WASHER,#10

- 7/32 x 1/2 x 1/16"

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT - hex. #10-24

2шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

25

A59704

BREAKER

- circuit, Includes: Ref. 26

1шт.

26

129-667

NUT,#10-32, LH

4шт.

27

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- #8-24 x 3/8" rd. hd.

2шт.

28

129-16

NUT,#8-32

- #8-24 hex.

2шт.

29

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

30

A39079

SOLENOID

- manifold heater

1шт.

31

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

A60880

PLATE - mounting, Serial Range: solenoid-block

1шт.

34

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

35

92-5

LOCK WASHER,5/16"

2шт.

38

A64499

SWITCH

ASSY. - light, Includes: Ref. 39

1шт.

39

A45686

CIRCUIT-BREAKER

BREAKER - circuit (40 amp.)

1шт.

40

129-37

NUT,#10-32

Terminal #10-32

2шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

42

A20467

NUT

- lock, Serial Range: switch-panel

1шт.

43

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock, 3/8" int. Shakeproof

1шт.

44

A59695

KNOB

- turn, switch

1шт.

45

A59696

SCREW,#8 - 32 x 5/8"

-, Serial Range: knob-switch

1шт.

49

A67189

CONNECTOR, ELEC

ATTACHMENT - 7 point auxiliary plug (Male half) w/cable guard

1шт.

A66932

OUTLET

ATTACHMENT - 7 point auxiliary socket (Female half) (Mach. Item), Includes: Ref. 50 - 58

1шт.

50

A38739

CONNECTOR, ELEC

CONNECTOR - 7 point

1шт.

51

A38740

GUARD

BOOT - connector

1шт.

52

A66891

BRACKET - connector mtg.

1шт.

53

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

54

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

55

9635082

NUT,5/16" - 18, Gr 5

2шт.

56

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

57

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

2шт.

58

A66893

ELECTRICAL WIRE

WIRE - auxiliary outlet ground

1шт.
