Запчасти Case IH 1175 (056) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

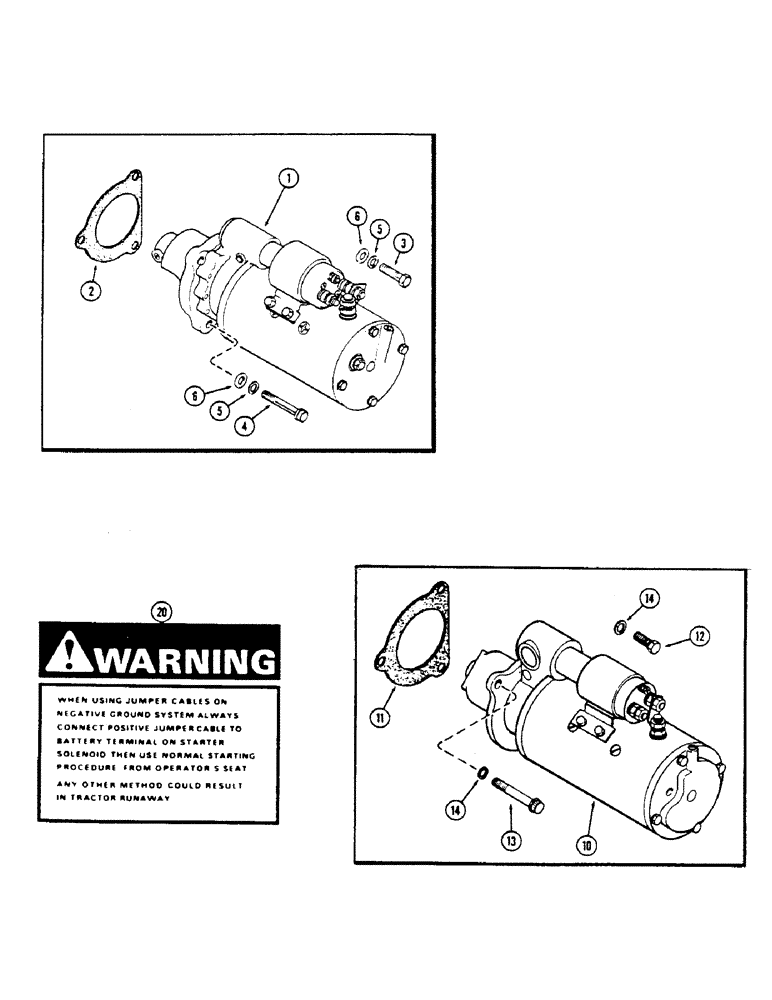

Схема запчастей Case IH 1175 - (056) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS
20
13
6
4
5
3
14
6
11
1
12
2
5
14
10

Артикул

Название

Примечание

Количество

1

A145555

STARTING MOTOR

STARTING MOTOR - (Delco #1113478) (See Figure 062) (1st used trac. ser. no. 8814501) (Replaces A64907)

1шт.

1

A64907

ELECTRIC MOTOR

STARTING MOTOR - (Delco #1113399) (See Figure 063C) (Used trac. ser. nos. 8696753 to 8814501) (Order A145555)

1шт.

1

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104212A1C

CORE-STARTER

Return Part Number

1шт.

2

A27933

GASKET

GASKET - starting motor

1шт.

3

113-2437

PREV TORQUE BOLT,Locking, 1/2"-13 x 1 3/4", G5

BOLT - lock, 1/2 x 1-3/4" N.C. hex. Poly-lok

2шт.

4

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" N.C. ferry hd.

1шт.

5

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

1шт.

6

L30674

WASHER

WASHER - 17/32 x 1 x 1/8"

3шт.

10

A59217

STARTER MOTOR

STARTING MOTOR - (Delco #1113689) (See Figure 064) to trac., Serial Range: -8696753

1шт.

11

A27933

GASKET

GASKET - starting motor

1шт.

12

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

BOLT - lock (1/2 x 1-1/4" N.C. hex.)

2шт.

13

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - cap, 1/2 x 3" N.C. 12 pt. ferry

1шт.

14

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

20

321-2788

DECAL

DECAL - warning

1шт.

Выбрано товаров: 15
