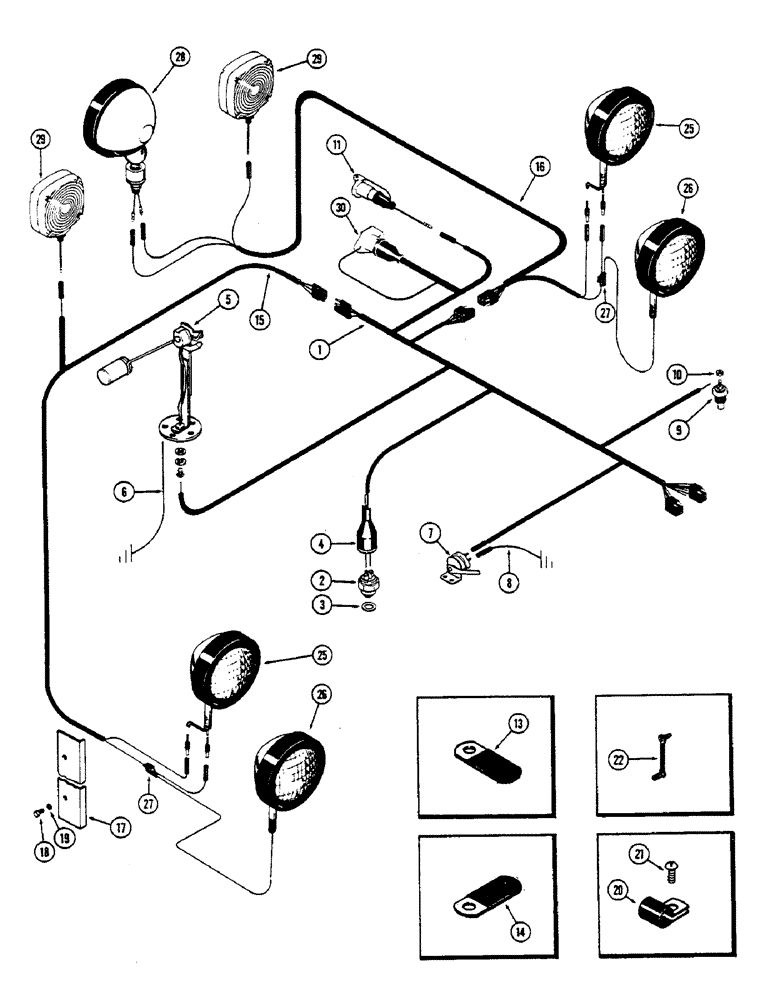

Запчасти Case IH 1175 (054) - ELECTRICAL SYSTEM, TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A66899

HARNESS

Trans. wire (Used w/turn signals and 7 point auxiliary outlet)

1шт.

1

A62413

HARNESS

Trans. wire (Used w/o turn signals or 7 point outlet)

1шт.

2

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

3

G49401

SHIM,.005" Thk

Switch

1шт.

3

G49402

SHIM,.010" Thk

Switch

1шт.

4

A61028

BOOT

Neutral start switch

1шт.

5

A62092

UNIT

Sending, fuel tank

1шт.

6

A59710

ELECTRICAL WIRE

WIRE Ground, fuel sender

1шт.

7

A33977

SWITCH

Hand brake warning

1шт.

8

A59711

ELECTRICAL WIRE

WIRE Ground, hand brake switch

1шт.

9

A21462

SENDER UNIT

SENDER Transmission temp.

1шт.

10

129-661

NUT

#10-32 hex. brass

1шт.

11

REF

INSTRUCTION

SOCKET - auxiliary outlet (Order from Figure 057C)

1шт.

12

A65060

ELECTRICAL WIRE

WIRE Auxiliary outlet

1шт.

13

A37179

CLIP

Trans. wire

1шт.

14

A22880

CLIP

Fuel sender wire and harness

1шт.

15

A62412

HARNESS

Wire, RH fender (w/o cab)

1шт.

15

A62414

HARNESS

Wire, RH fender (w/cab)

1шт.

16

A59709

HARNESS

Wire, LH fender (w/o cab)

1шт.

16

A61146

HARNESS

Wire, LH fender (w/cab)

1шт.

17

A59720

SPARE PART LH fender harness (12" fender)

1шт.

17

A59721

SPARE PART RH fender harness (12" fender)

1шт.

17

A60893

GUARD

SHIELD - fender harness, RH and LH (w/24" fender)

2шт.

18

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Fender harness

4шт.

21

187-1009

BOLT

SCREW - 1/4 x 3/8" hex. hd. self-tapping

4шт.

22

A62547

CLAMP

Fender wires

1шт.

25

A64498

LAMP

Head, driving (See Figure 070)

1шт.

26

A59724

HEADLAMP

Cultivating (12" fender) (See Figure 072)

2шт.

26

A59723

LAMP

Cultivator (24" fender) (See Figure 072)

2шт.

27

A62556

CONNECTOR, ELEC

CONNECTOR Splice, cultivating lamp

2шт.

28

A59703

LAMP

Rear flood and tail (See Figure 72)

1шт.

29

A44201

LIGHT ASSY.

Flasher (Order from Figure 074)

2шт.

30

A38739

CONNECTOR, ELEC

CONNECTOR 7 point auxiliary outlet (See Figure 057C for attachment)

1шт.
