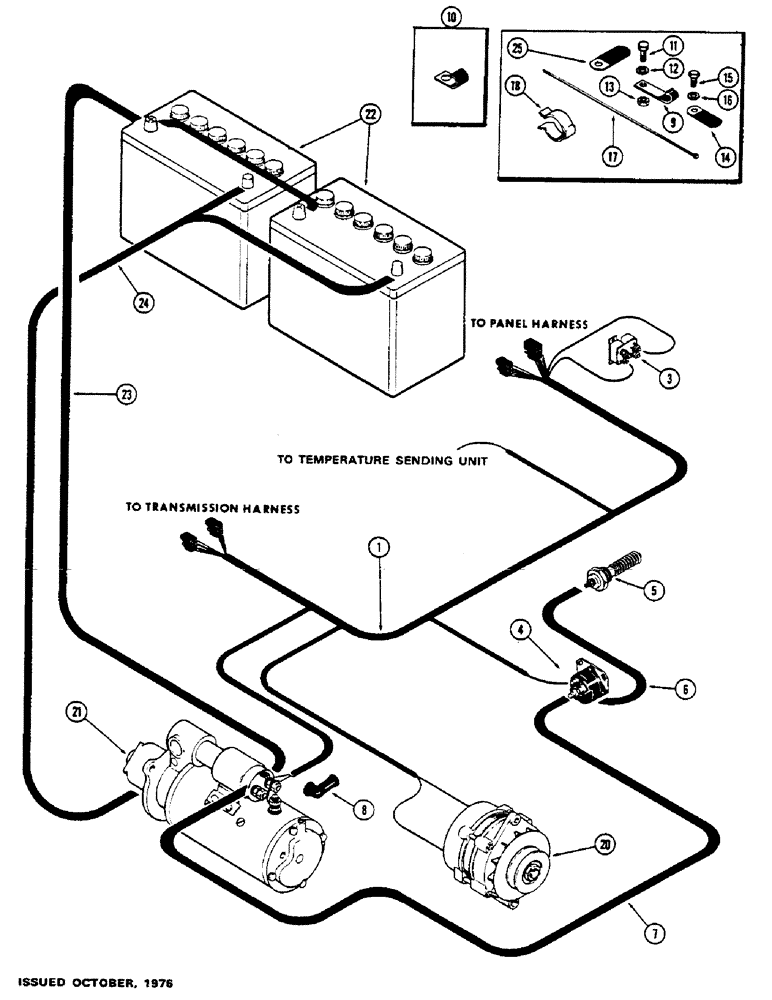

Запчасти Case IH 1175 (052) - ELECTRICAL SYSTEM, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A135743

HARNESS

Engine wire (Used w/turn signal)

1шт.

1

A135744

HARNESS

Wire (used w/Delco alternator)

1шт.

1

A63737

HARNESS

Wire (used w/Prestolite alternator)

1шт.

3

A59704

BREAKER

Circuit (See Figure 057C)

1шт.

4

A39079

SOLENOID

Manifold heater (See Figure 057C)

1шт.

5

A37775

HEATER

Manifold

1шт.

6

A61932

SPARE PART WIRE -, Serial Range: solenoid-heater

1шт.

7

A59713

ELECTRICAL WIRE

WIRE Starter to heater solenoid

1шт.

8

A21753

CAP

BOOT - terminal

2шт.

9

A143668

CLIP

Wire harness (1st used trac. S/N 8802211)

1шт.

10

A59718

CLAMP

SPARE PART Wire harness to trac., Serial Range: -8802211

1шт.

11

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

1шт.

14

A37179

CLIP

Alternator wire

1шт.

15

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Nylon, wire harness

1шт.

18

A60894

CLIP

Alt. wire to breather tube

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSY (See Figure 057A)

1шт.

21

REF

INSTRUCTION

STARTING MOTOR (See Figure 056)

1шт.

22

A38411

DRY BATTERY

12 volt

2шт.

23

A65817

CABLE

Positive, battery to starter (Replaces A62141)

1шт.

24

A59728

CABLE

Battery ground

1шт.

25

A22883

CLIP

Battery cable

1шт.
