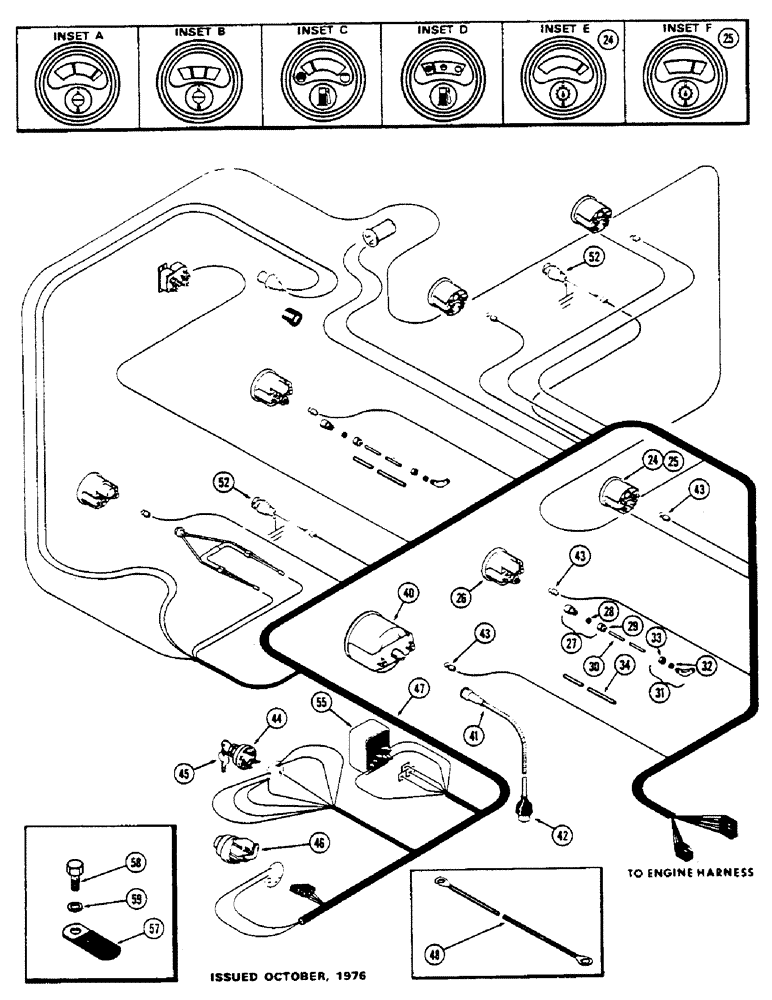

Запчасти Case IH 1175 (051A) - INSTRUMENTS AND WIRING (04) - ELECTRICAL SYSTEMS

24

A143678

ELECTRICAL GAUGE

Trans. oil temp. (Replaces A64491) (See Inset E)

1шт.

25

A64491

ELECTRICAL GAUGE

Trans. oil temp. (Order A143678) (See Inset F)

1шт.

26

A59684

ELECTRICAL GAUGE

Pressure, transmission oil

1шт.

27

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube x 1/8" P.T., Includes: Ref. 28 and 29

1шт.

28

222-100

TUBE NUT,1/8" Tube

1шт.

29

222-110

TUBE NUT,3/8"-24

For 1/8" tube

1шт.

30

A59685

TUBE

Transmission pressure

1шт.

31

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

1/8" tube x 1/8" P.T., Includes: Ref. 32 and 33

1шт.

32

222-100

TUBE NUT,1/8" Tube

1шт.

33

222-110

TUBE NUT,3/8"-24

For 1/8" tube

1шт.

34

A59686

LOOM

Pressure tube (1/4" plastic x 73")

1шт.

40

A62600

TACHOMETER

ASSY

1шт.

41

A59691

CABLE

ASSY, tachometer drive (46-1/4" cable), Includes: Ref. 42

1шт.

42

A24523

KIT

Repair, drive cable

1шт.

43

A14553

BULB

Gauge lights

3шт.

44

A59693

SWITCH

ASSY, starting

1шт.

45

A60319

KEY

Ignition (Set of 2)

1шт.

46

REF

INSTRUCTION

SWITCH - light (See Figure 56)

1шт.

47

A135869

HARNESS

Inst. panel wire (used w/turn signals)

1шт.

47

A65987

HARNESS

Instrument panel wire (used w/o turn signal) (1st used eng. S/N 2529467)

1шт.

47

A59705

HARNESS

Wire, instrument panel to eng., Serial Range: -2529467

1шт.

48

A64704

STRAP

Ground, panel (20")

1шт.

52

A77188

LAMP

ASSY, right and left turn indicator

2шт.

A44797

BULB

Lamp (green)

1шт.

A66892

ELECTRICAL WIRE

WIRE Signal lamp ground

2шт.

55

A77184

SWITCH

Comb. dual-rate flasher and turn signal (See Figure 074)

1шт.

57

A37179

CLIP

Wire harness

1шт.

58

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

59

92-5

LOCK WASHER,5/16"

1шт.
