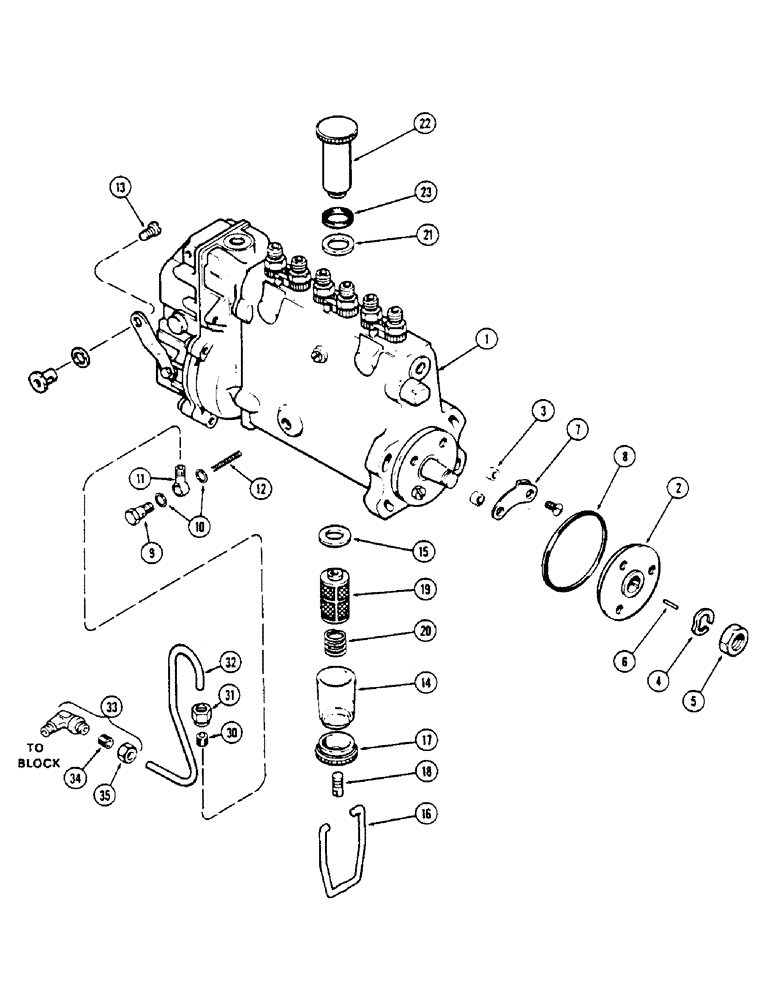

Запчасти Case IH 1175 (049E) - (451B) TURBO DIESEL ENGINE, FUEL INJECTION PUMP, WITH LUBE LINE ON ENGINE SIDE OF PUMP (03) - FUEL SYSTEM

1

A62331

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (2100 R.P.M.), Includes: Ref. 2 - 23

1шт.

LATER PRODUCTION PUMPS HAVE A HEAVY DUTY DRIVE SHAFT. THESE PUMPS ARE IDENTIFIED BY SERIAL NO. WITH 132 AS FIRST THREE DIGITS. THESE PUMPS WILL REQUIRE HEAVY DUTY PARTS LISTED ABOVE, ALL OTHERS USE STD. PARTS.

1шт.

2

A41853

HUB

- drive (w/1/8" key way) (Std.)

1шт.

LATER PRODUCTION PUMPS HAVE A HEAVY DUTY DRIVE SHAFT. THESE PUMPS ARE IDENTIFIED BY SERIAL NO. WITH 132 AS FIRST THREE DIGITS. THESE PUMPS WILL REQUIRE HEAVY DUTY PARTS LISTED ABOVE, ALL OTHERS USE STD. PARTS.

1шт.

2

A41857

HUB

- drive (w/11/64" key way) (Heavy Duty)

1шт.

LATER PRODUCTION PUMPS HAVE A HEAVY DUTY DRIVE SHAFT. THESE PUMPS ARE IDENTIFIED BY SERIAL NO. WITH 132 AS FIRST THREE DIGITS. THESE PUMPS WILL REQUIRE HEAVY DUTY PARTS LISTED ABOVE, ALL OTHERS USE STD. PARTS.

1шт.

3

A42312

LOCK WASHER

- lock (31/64" I.D.) (Std.)

1шт.

LATER PRODUCTION PUMPS HAVE A HEAVY DUTY DRIVE SHAFT. THESE PUMPS ARE IDENTIFIED BY SERIAL NO. WITH 132 AS FIRST THREE DIGITS. THESE PUMPS WILL REQUIRE HEAVY DUTY PARTS LISTED ABOVE, ALL OTHERS USE STD. PARTS.

1шт.

3

A41851

LOCK WASHER

- lock (9/16" I.D.) (Heavy Duty)

1шт.

LATER PRODUCTION PUMPS HAVE A HEAVY DUTY DRIVE SHAFT. THESE PUMPS ARE IDENTIFIED BY SERIAL NO. WITH 132 AS FIRST THREE DIGITS. THESE PUMPS WILL REQUIRE HEAVY DUTY PARTS LISTED ABOVE, ALL OTHERS USE STD. PARTS.

1шт.

4

A42313

NUT

- hub (12 mm. thrd.) (Std.)

1шт.

LATER PRODUCTION PUMPS HAVE A HEAVY DUTY DRIVE SHAFT. THESE PUMPS ARE IDENTIFIED BY SERIAL NO. WITH 132 AS FIRST THREE DIGITS. THESE PUMPS WILL REQUIRE HEAVY DUTY PARTS LISTED ABOVE, ALL OTHERS USE STD. PARTS.

1шт.

4

A41852

LOCK NUT

- hub (14 mm. thrd.) (Heavy Duty)

1шт.

LATER PRODUCTION PUMPS HAVE A HEAVY DUTY DRIVE SHAFT. THESE PUMPS ARE IDENTIFIED BY SERIAL NO. WITH 132 AS FIRST THREE DIGITS. THESE PUMPS WILL REQUIRE HEAVY DUTY PARTS LISTED ABOVE, ALL OTHERS USE STD. PARTS.

1шт.

5

A20933

KEY

- hub to shaft (1/8" wide) (Std.)

1шт.

LATER PRODUCTION PUMPS HAVE A HEAVY DUTY DRIVE SHAFT. THESE PUMPS ARE IDENTIFIED BY SERIAL NO. WITH 132 AS FIRST THREE DIGITS. THESE PUMPS WILL REQUIRE HEAVY DUTY PARTS LISTED ABOVE, ALL OTHERS USE STD. PARTS.

1шт.

5

A41850

KEY

- hub to shaft (11/64" wide) (Heavy Duty)

1шт.

LATER PRODUCTION PUMPS HAVE A HEAVY DUTY DRIVE SHAFT. THESE PUMPS ARE IDENTIFIED BY SERIAL NO. WITH 132 AS FIRST THREE DIGITS. THESE PUMPS WILL REQUIRE HEAVY DUTY PARTS LISTED ABOVE, ALL OTHERS USE STD. PARTS.

1шт.

6

A41854

INDICATOR

POINTER - hub adjustment

1шт.

7

A41855

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting (2-21/64 x 3-3/16 x 1/8")

1шт.

9

A25192

BANJO BOLT

BOLT- fitting, oil tube

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil tube

1шт.

12

A25190

SPRING

- banjo fitting

1шт.

13

A44259

SCREW

- lock, stop cable

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

- bail

1шт.

18

A43349

STUD

- bail nut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element

1шт.

21

A43351

SEAL

- copper, primer pump

2шт.

22

A43343

CARTRIDGE

PUMP ASSY. - hand primer, Includes: Ref. 23

1шт.

23

A45342

GASKET

- primer pump (rubber)

1шт.

30

222-102

SLEEVE,1/4" Tube

Oil gallery to pump 1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - oil gallery to pump

1шт.

32

A58717

TUBE

- oil, Serial Range: gallery-pump

1шт.

33

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube x 1/4" P.T., 90 Degrees, Includes: Ref. 34 and 35

1шт.

34

222-102

SLEEVE,1/4" Tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
