(049C) - (451B) TURBO DIESEL ENGINE, FUEL INJECTION PUMP, WITH LUBE LINE ON OUTSIDE OF PUMP

Запчасти Case IH 1175 (049C) - (451B) TURBO DIESEL ENGINE, FUEL INJECTION PUMP, WITH LUBE LINE ON OUTSIDE OF PUMP (03) - FUEL SYSTEM

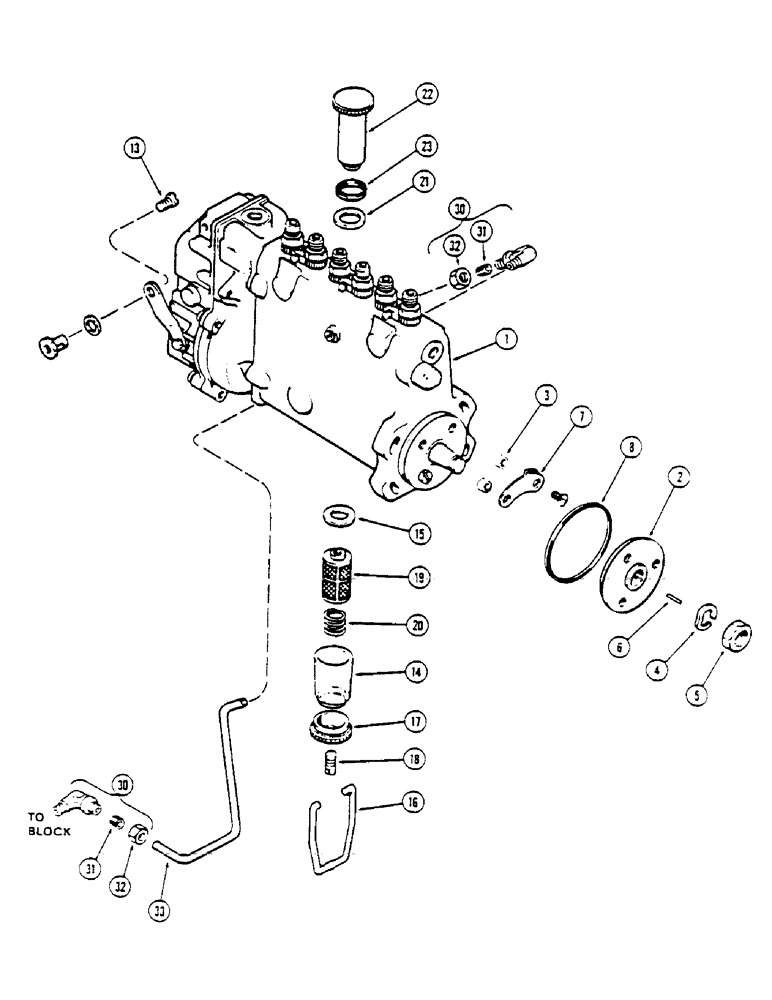

Схема запчастей Case IH 1175 - (049C) - (451B) TURBO DIESEL ENGINE, FUEL INJECTION PUMP, WITH LUBE LINE ON OUTSIDE OF PUMP (03) - FUEL SYSTEM
22
6
20
30
33
1
7
5
32
16
8
13
23
2
31
18
3
30
31
14
21
4
15
19
32
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A138036

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (2100 RPM), Includes: Ref. 2 - 23

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41859

BUSHING

SPACER - hub

2шт.

4

A41851

LOCK WASHER

- lock, hub nut

1шт.

5

A41852

LOCK NUT

- hub

1шт.

6

A41850

KEY

-, Serial Range: hub-shaft

1шт.

7

A41858

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - 2-21/64 x 3-3/16 x 1/8"

1шт.

13

A44259

SCREW

- pump stop control cable lock

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

- bail

1шт.

18

A43349

STUD

- bail nut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element

1шт.

21

A43351

SEAL

- copper, primer pump

2шт.

22

A43343

CARTRIDGE

PUMP ASSY. - hand primer, Includes: Ref. 23

1шт.

23

A45342

GASKET

- primer pump (rubber)

1шт.

30

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube x 1/4" P.T., 90 Degrees, Includes: Ref. 31 and 32

2шт.

31

222-102

SLEEVE,1/4" Tube

1шт.

32

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

33

A136903

TUBE

- oil, Serial Range: gallery-pump

1шт.
