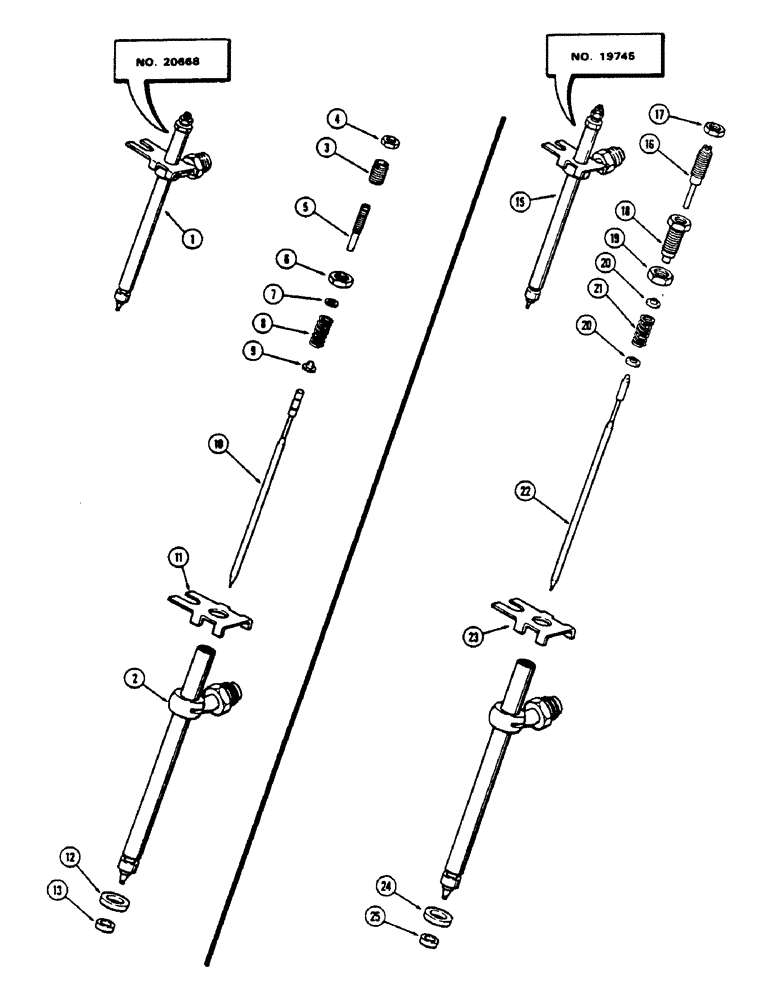

Запчасти Case IH 1175 (049A) - (451B) TURBO DIESEL ENGINE, FUEL INJECTION NOZZLE (03) - FUEL SYSTEM

1

A138322

NOZZLE CAP

NOZZLE ASSY. - fuel injection (Supplier's No. 20668 stamped on body) (color coded red) (Replaces A62809), Includes: Ref. 2 - 13

6шт.

WHENEVER NOZZLE IS REMOVED FROM HEAD, THE SEAL REF. 13 OR 25 AND WASHER REF. 12 OR 24 MUST BE REPLACED BEFORE NOZZLE IS INSTALLED BACK IN HEAD.

1шт.

A138322R

REMAN-INJECT NOZZLE

1175 DIESEL (1/71-12/78)

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - injector

1шт.

3

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting (#10-56 hex.)

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting (5/16"-48 hex.)

1шт.

7

A45632

SHIM

- pressure adjusting (Replaces A45291)

1шт.

8

A45290

SPRING

- pressure adjusting

1шт.

9

A45289

SEAT

- spring

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

15

A62809

NOZZLE CAP

NOZZLE ASSY. - fuel injection (Supplier's No. 19745 stamped on body) (color coded red) (Order A138322), Includes: Ref. 16 - 25

6шт.

WHENEVER NOZZLE IS REMOVED FROM HEAD, THE SEAL REF. 13 OR 25 AND WASHER REF. 12 OR 24 MUST BE REPLACED BEFORE NOZZLE IS INSTALLED BACK IN HEAD.

1шт.

A138322R

REMAN-INJECT NOZZLE

1175 (1/71-12/78) REMAN FOR NEW P/N A62809

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - adjusting, lift

1шт.

17

A43602

NUT

- lock, lift adjusting (#10-56 hex.)

1шт.

18

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - adjusting, pressure

1шт.

19

A42424

LOCK NUT

- lock, pressure adjusting (5/16"-48 hex.)

1шт.

20

A44369

SEAT

- spring

2шт.

21

A43601

SPRING

- nozzle pressure adjusting

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

23

A41768

PLATE

- nozzle locating

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
