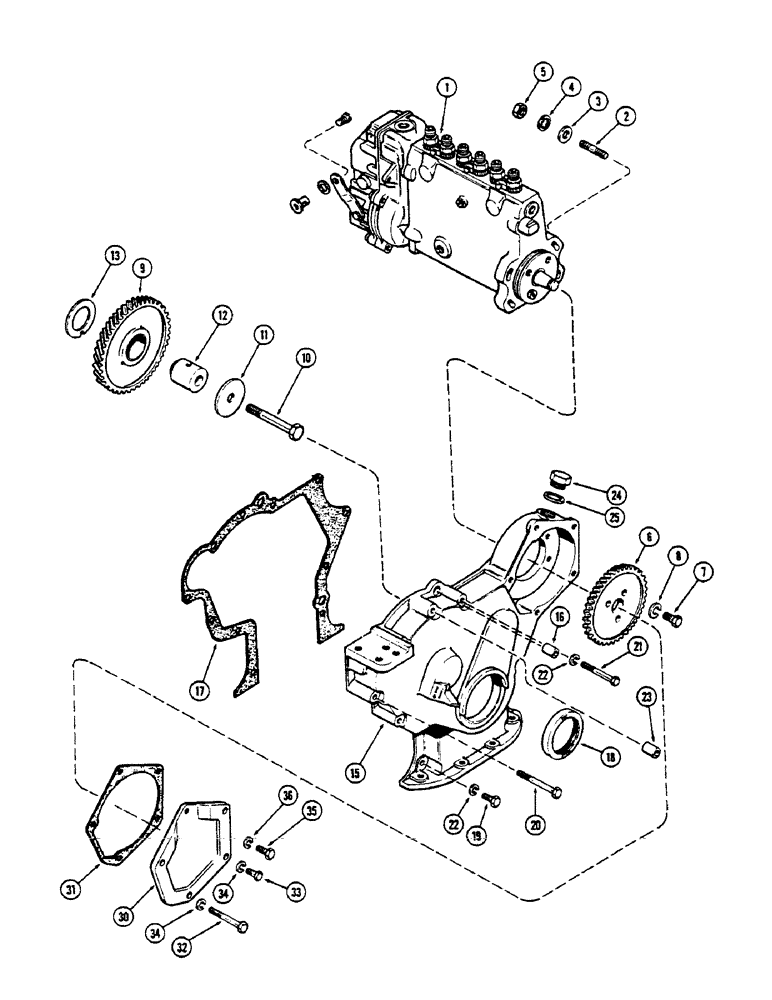

Запчасти Case IH 1175 (048) - FUEL INJECTION PUMP DRIVE, (451BDT) TURBO DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY, fuel injection (See Figures 049C and 049E)

1шт.

2

A142092

STUD

3/8" N.C. x 1-7/8" (drilled) (For anti-tamper wire)

1шт.

2

A58689

STUD

Pump mounting, 3/8" N.C. x 1-7/8"

3шт.

3

A57470

WASHER

13/32 x 11/16" x 16 ga

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

Shakeproof, 3/8" Int./ext

4шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

(Used w/A142092 stud)

1шт.

5

25-106

NUT,3/8"-16, G5

(Used w/A58689 stud)

3шт.

6

A58693

GEAR

Drive, injection pump

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A62542

GEAR

ASSY, idler (Includes bushing)

1шт.

10

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

11

A58692

PLATE

Thrust, idler shaft

1шт.

12

A58690

SHAFT

Idler gear

1шт.

13

A58691

WASHER

Thrust, idler shaft

1шт.

15

A58609

COVER

ASSY, timing gears, Includes: Ref. 16

1шт.

16

A58611

PIN

Dowel, cover, timing gear

2шт.

17

A58612

GASKET

Cover to block, timing gear

1шт.

18

A62049

OIL SEAL

Oil, crankshaft front, timing gear cover

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Timing gear cover

4шт.

20

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

BOLT - 3/8 x 2-1/2" N.C. hex., timing gear cover

1шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Timing gear cover

3шт.

22

92-6

LOCK WASHER,3/8"

Timing gear cover

9шт.

23

A19774

BUSHING

SPACER - alternator pry point, timing gear cover

1шт.

24

A21140

PLUG

Timing hole, gear cover

1шт.

25

A58613

SEALING WASHER

Plug, timing hole, gear cover

1шт.

30

A61053

COVER

Front, pump drive, timing gear

1шт.

31

A58615

GASKET

Front cover, timing gear

1шт.

32

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Timing gear cover

2шт.

33

A150118

BOLT

3/8 x 1-3/4" N.C. hex. (drilled) (Replaces A148253) (For anti-tamper wire), timing gear cover

2шт.

34

92-6

LOCK WASHER,3/8"

Timing gear cover

4шт.

35

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Timing gear cover

1шт.

36

92-5

LOCK WASHER,5/16"

Timing gear cover

1шт.
