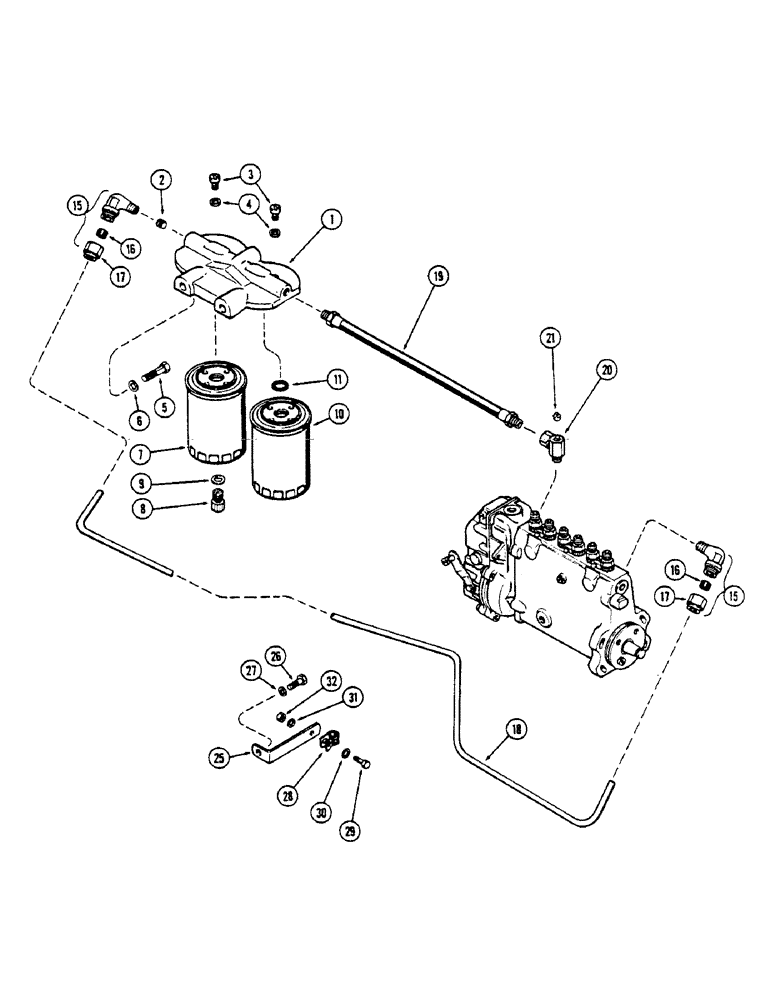

Запчасти Case IH 1175 (046) - (451B) TURBO DIESEL ENGINE, FUEL INJECTION FILTER SYSTEM (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY. - filter mounting, Includes: Ref. 2

1шт.

2

221-1041

PLUG

- pipe, 1/8" slotted

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter

2шт.

4

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw (Replaces A20662 & A66619)

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

CASA41745

FUEL FILTER

KIT - replacement, filter elements, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes: Ref. 8 and 9

1шт.

8

G49080

PLUG

- plastic (3/8" N.F.)

1шт.

9

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - plug (3/8 x 9/16 x 3/32")

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes: Ref. 11

1шт.

11

A42315

GASKET

-, Serial Range: filter-head

1шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 5/16" tube x 1/4" P.T., Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

18

A62342

TUBE

- transfer, Serial Range: pump-filter

1шт.

19

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter to pump (16")

1шт.

20

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" P.T. sq. hd.

1шт.

25

A64856

BRACKET

- tube support

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clip Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.
