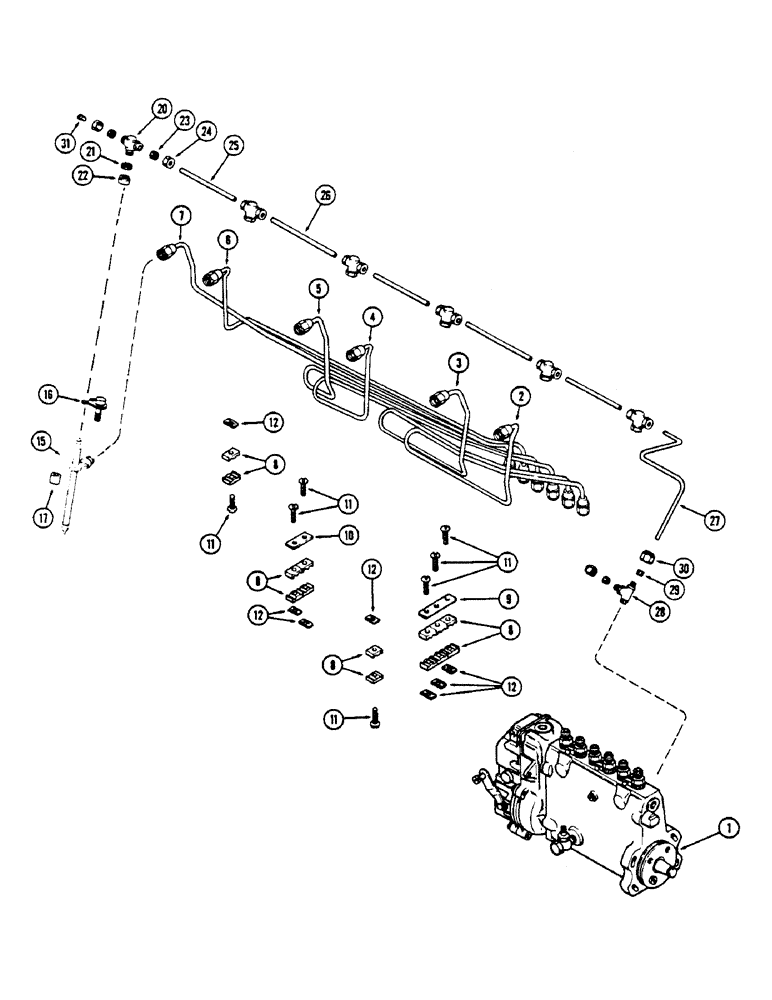

Запчасти Case IH 1175 (044) - (451B) TURBO DIESEL ENGINE, FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY, fuel injection (See Figures 049C & 049E)

1шт.

2

A58702

TUBE

ASSY, #1 fuel injector nozzle

1шт.

3

A58703

TUBE

ASSY, #2 fuel injector nozzle

1шт.

4

A58704

TUBE

ASSY, #3 fuel injector nozzle

1шт.

5

A58705

TUBE

ASSY, #4 fuel injector nozzle

1шт.

6

A58706

TUBE

ASSY, #5 fuel injector nozzle

1шт.

7

A58707

TUBE

ASSY, #6 fuel injector nozzle

1шт.

8

A58709

BRACKET

Injection tube

14шт.

9

A58708

PLATE

Bracket screw (6 line)

1шт.

10

A58710

PLATE

Bracket screw (4 line)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

Machine

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

7шт.

15

REF

INSTRUCTION

NOZZLE ASSY, fuel injection (See Figure 049A)

6шт.

16

A58695

CLAMP

ASSY, Serial Range: nozzle-head

6шт.

17

A58696

SPACER

SPACER - nozzle clamp

6шт.

20

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSY, nozzle leak-off

6шт.

21

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

, Serial Range: Cap-nozzle

6шт.

22

A58961

NUT

, Serial Range: Cap-nozzle

6шт.

23

222-102

SLEEVE,1/4" Tube

12шт.

24

87017024

TUBE NUT,1/2"-24

1/4" tube

12шт.

25

A58965

TUBE

Leak-off cap (4-5/8" long)

3шт.

26

A58964

TUBE

Leak-off cap (5-5/8" long)

2шт.

27

A58963

TUBE

Leak-off, #1 nozzle, Serial Range: cap-valve

1шт.

28

A59097

VALVE

Check, leak-off (on pump), Includes: Ref. 29 and 30

1шт.

29

222-102

SLEEVE,1/4" Tube

2шт.

30

87017024

TUBE NUT,1/2"-24

1/4" tube

2шт.

31

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - rear leak-off cap

1шт.
