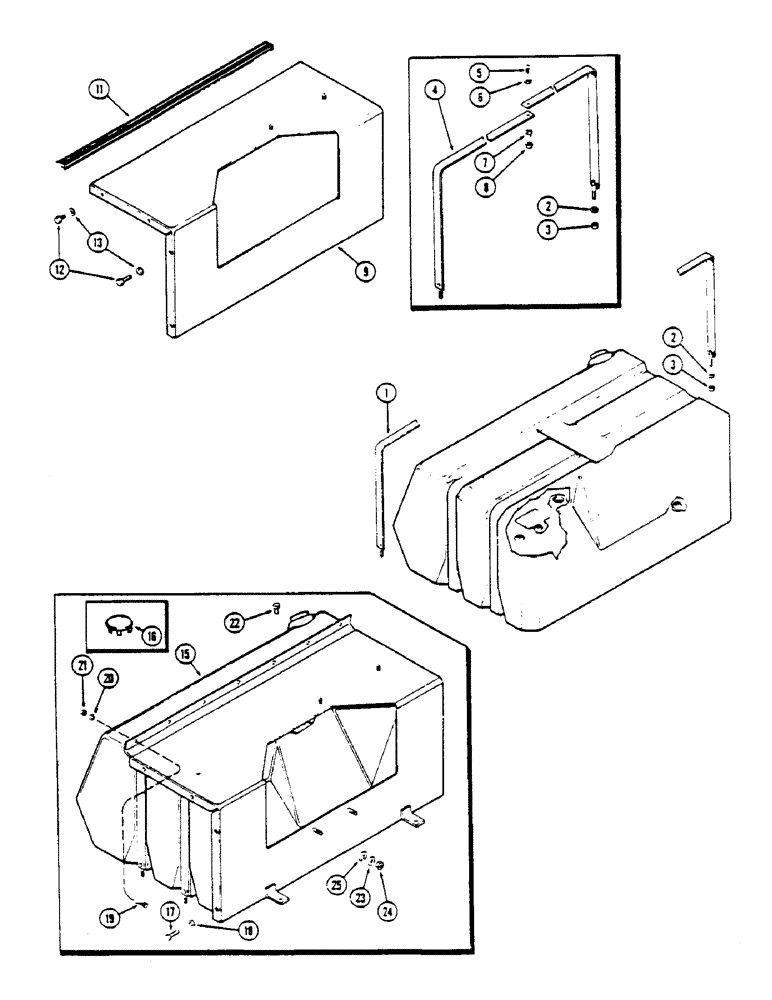

Запчасти Case IH 1175 (042) - (451B) TURBO DIESEL ENGINE, FUEL TANK COVERS (03) - FUEL SYSTEM

1

A66425

STRAP

- fuel tank mounting (Replaces A62055)

2шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

4

A62055

STRAP

- hold down, fuel tank (Order A66425)

4шт.

5

75-49

SCREW - 1/4 x 9/16 N.C. rd. Hd.

2шт.

6

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

A66661

COVER

- fuel tank (w/o cab) (Replaces A66153 & A59270)

1шт.

A39892

PLUG,33/64"

- button, 21/32" dia.

1шт.

11

A64866

GUARD

MOLDING - tank cover (Replaces A59498)

1шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

13

195-104

WASHER,3/8"

- 7/16 x 1 x 3/32"

8шт.

15

A66664

COVER

- fuel tank (w/cab) (Replaces A62681 & A66157)

1шт.

16

A39892

PLUG,33/64"

- button, 21/32"

1шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

20

92-5

LOCK WASHER,5/16"

14шт.

21

9635082

NUT,5/16" - 18, Gr 5

14шт.

22

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex.

2шт.

23

195-81

WASHER

- 7/16 x 7/8 x 3/32"

2шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

25

A62687

SHIM,.11" Thk

Cover stud .11" Thk

1шт.
