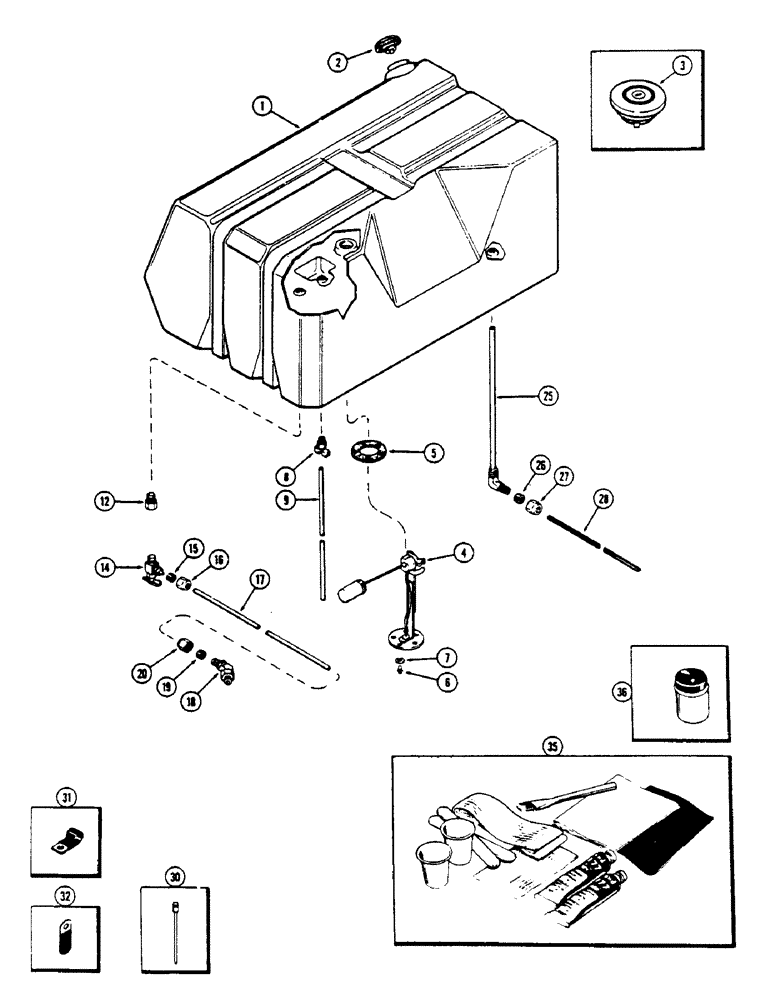

Запчасти Case IH 1175 (041A) - (451B) TURBO DIESEL ENGINE, FUEL TANK AND LINES, NYLON MATERIAL, USED PRIOR TO TRACTOR S/N 8751292 (03) - FUEL SYSTEM

1

A59490

FUEL TANK

TANK - fuel (Order 1-A66820, 1-A65893 & 1-A23656)

1шт.

2

A32119

CAP

- filler, fuel tank (See Ref. 3)

1шт.

3

A32120

CAP

- filler, fuel tank (locking type)

1шт.

4

A62092

UNIT

- sending, fuel gauge

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd.

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , P/N A65892 #10

5шт.

8

217-107

VALVE

- drain (w/1/8" P.T. thrd)

1шт.

9

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water drain (Nylon) 0.25" ID x 15.00", SAE SC716 CS

1шт.

12

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- 1/4 x 1/4"

1шт.

14

217-278

FITTING

VALVE ASSY. - fuel shut-off, Includes: Ref. 15 and 16

1шт.

15

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

16

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

17

A62320

TUBE

- tank to primer (1/4" I.D. x 105")

1шт.

18

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSY. - 45 Degrees, 3/8" tube x 1/4" P.T., Includes: Ref. 19 and 20

1шт.

19

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

20

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

25

A62274

FITTING

PIPE ASSY. - fuel tank return port (3/8" P.T. thrd), Includes: Ref. 26 and 27

1шт.

26

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

27

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

28

A60722

TUBE

- return, injector leak-off (3/16" I.D. x 102")

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, tube

1шт.

31

A57061

CLIP

-, Serial Range: tube-chassis

1шт.

32

A37179

CLIP

-, Serial Range: tube-engine

1шт.

35

A44265

KIT

- repair, nylon fuel tank, (Also order A44266)

1шт.

NYLON TANK IS IDENTIFIED BY 1/8" THRD. AT DRAIN & 3/8 THRD. AT RETURN PORT

1шт.

36

A44266

KIT

- adhesive (1 bottle), tank repair

1шт.
