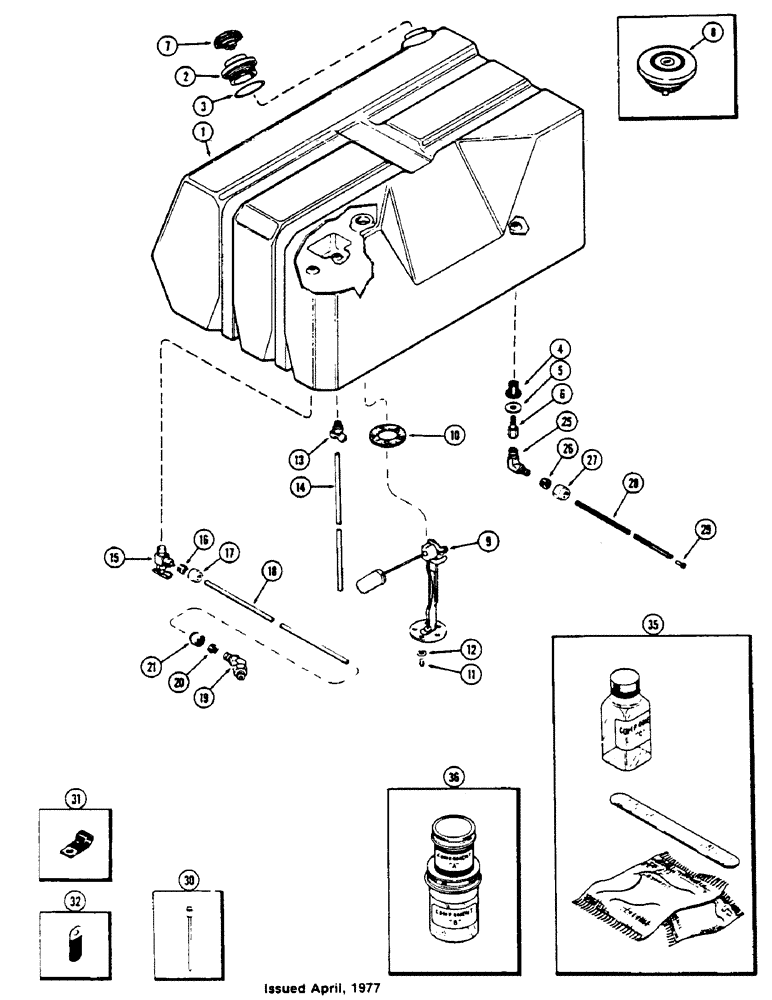

Запчасти Case IH 1175 (040) - FUEL TANK AND LINES, (451BDT) TURBO DIESEL ENGINE, POLYETHLENE MATERIAL, 1ST USED TRAC. S/N 8751292 (03) - FUEL SYSTEM

1

A143073

FUEL TANK

TANK - fuel (Replaces A66820), Includes: Ref. 2 - 6

1шт.

2

A143074

COLLAR

NECK - fuel tank filler

1шт.

3

A145752

O-RING,2.85" ID x 0.21"

- 2-55/64 x 3-1/16 x 7/32"

1шт.

5

A65892

WASHER

- 7/16 x 1-1/4 x 1/16"

3шт.

4

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud

3шт.

6

A65890

STUD,3/8" - 16 x 1/4" NPT

- fuel tank mounting

3шт.

7

A32119

CAP

- filler, fuel tank (See Ref. 8)

1шт.

8

A32120

CAP

- filler, fuel tank (locking type)

1шт.

9

A62092

UNIT

- sending, fuel gauge

1шт.

10

A11822

GASKET

- sending unit

1шт.

11

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd.

5шт.

12

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

13

A23656

COCK, DRAIN

VALVE - drain (w/1/4" P.T. thrd.)

1шт.

14

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water drain (Nylon) 0.25" ID x 15.00", SAE SC716 CS

1шт.

15

217-278

FITTING

VALVE ASSY. - fuel shut-off, Includes: Ref. 16 and 17

1шт.

16

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

17

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

18

A143009

TUBE

- tank to primer (1/4" I.D. x 108")

1шт.

19

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSY. - 45 deg., 3/8" tube x 1/4" P.T., Includes: Ref. 20 and 21

1шт.

20

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

21

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

25

222-5114

ELBOW,90 Degree, 7/16"-24 x 1/4" NPTF

ASSY. - fuel tank return port (1/4" P.T. thrd.), Includes: Ref. 26 and 27

1шт.

26

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

27

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

28

A60722

TUBE

- return, injector leak-off (3/16" I.D. x 102")

1шт.

29

A141160

INSERT

- nylon tube

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, tube

1шт.

31

A57061

CLIP

-, Serial Range: tube-chassis

1шт.

32

A37179

CLIP

-, Serial Range: tube-engine

1шт.

35

A44635

KIT

- repair, polyethlene tank (also order A44636)

1шт.

Polyethylene tank is identified by 1/4" thread at drain and return ports.

1шт.

36

A44636

KIT

- sealant, tank repair

1шт.
