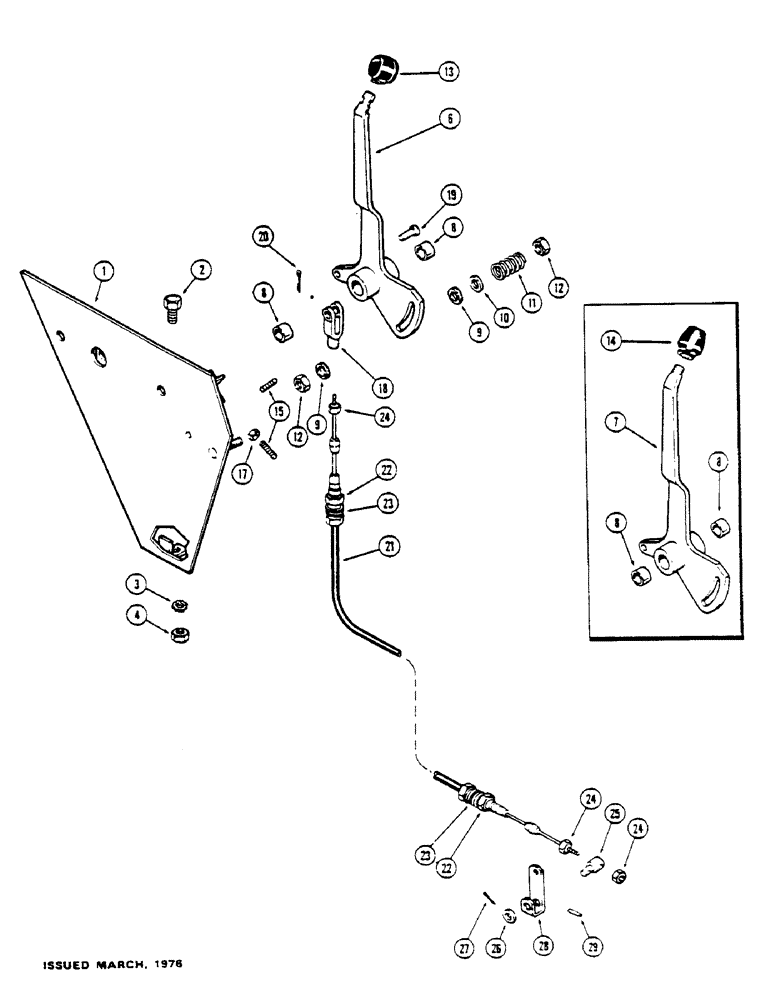

Запчасти Case IH 1175 (036) - HAND THROTTLE, (451BDT) DIESEL ENGINE (02) - ENGINE

1

A65027

PLATE

ASSY. - throttle lever pivot

1шт.

2

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

3

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - lock, 3/8" int.-ext. Shakeproof

1шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

6

A137812

LEVER

ASSY. - hand throttle (Replaces A63010), Includes: Ref. 8

1шт.

7

A63010

LEVER

ASSY. - hand throttle (Order A137812 lever and A137806 knob), Includes: Ref. 8

1шт.

8

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- bronze (5/8 x 3/4 x 1/2")

2шт.

9

A61069

DISC

- friction

1шт.

10

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4" x 14 ga

1шт.

11

A65583

SPRING

- friction disc

1шт.

12

131-1306

JAM NUT,Jam, 3/8"-16

NUT - jam, 3/8" N.C. hex

2шт.

13

A137806

KNOB

- hand lever (rubber)

1шт.

14

A65699

KNOB

- lever (plastic)

1шт.

15

A141874

SET SCREW,1/4" - 20 x 1 1/4"

- set (1/4 x 1-1/4" N.C. slotted Nylok)

2шт.

17

193-1000

NUT,Keps, w/LW,#10-32

- jam, #10-32 hex

1шт.

18

A63015

YOKE

- control cable

1шт.

19

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

20

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

21

A59434

CABLE

- control, hand throttle, Includes: Ref. 22 - 24

1шт.

22

25-157

JAM NUT,Jam, 7/16"-20, G5

- jam, 7/16" N.F. hex

4шт.

23

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - lock, 7/16" int. Shakeproof

4шт.

24

129-27

NUT,Hex, #10 - 32

- hex. jam #10-32

2шт.

25

A61703

PIVOT

- control cable

1шт.

26

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

27

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

28

A61702

LEVER

- override, throttle control

1шт.

29

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.
