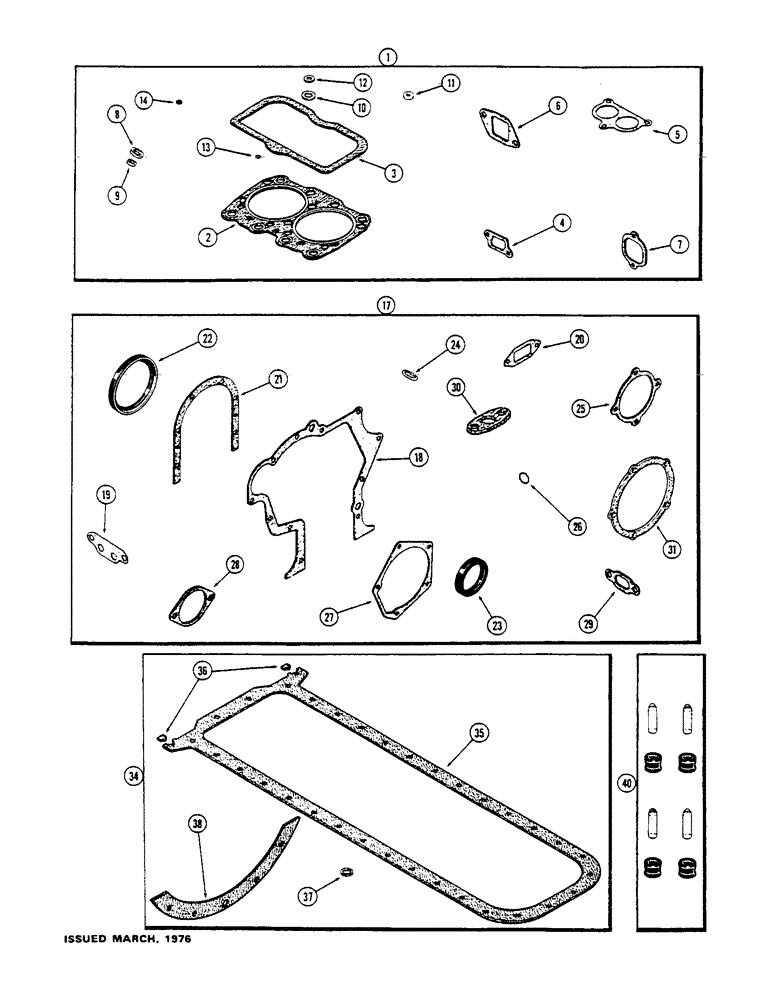

Запчасти Case IH 1175 (034) - (451B) TURBO DIESEL ENGINE, GASKET KITS (02) - ENGINE

1

A44085

GASKET

VALVE GRIND GASKET KIT - (Replaces A43077), for complete engine overhaul order 1-A44085, 1-A44075, 1-A43006 and 3-M20614, Includes: Ref. 2 - 14

1шт.

2

A138121

GASKET

- cylinder, Serial Range: head-block

3шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

4

A58637

MANIFOLD GASKET

- water manifold

3шт.

5

A58639

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A58895

GASKET

- exhaust manifold

6шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

6шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzle

6шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

3шт.

11

A23684

GASKET

GASKET - cover studs

6шт.

12

A34133

GASKET

- breather screw

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, rocker shaft

3шт.

14

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

17

A44075

GASKET KIT

CYLINDER BLOCK GASKET KIT - (Replaces A42096), for complete engine overhaul order 1-A44085, 1-A44075, 1-A43006 and 3-M20614, Includes: Ref. 18 - 31

1шт.

18

A58612

GASKET

- timing gear cover

1шт.

19

A58756

OIL PAN GASKET SET

- oil filter base (not used)

1шт.

20

A58649

GASKET

- water pump body

1шт.

21

A32830

GASKET

- rear oil seal retainer

1шт.

22

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

23

A62049

OIL SEAL

- oil, crankshaft front

1шт.

24

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

25

A58646

GASKET

- water, Serial Range: pump-body

1шт.

26

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil pump & filter base

3шт.

27

A58615

GASKET

- cover (not used this engine)

1шт.

28

A58617

GASKET

- inj. pump drive cover

1шт.

29

A58670

GASKET

- oil cooler opening cover

1шт.

30

A58680

OIL PAN GASKET SET

- oil cooler tube to water pump

1шт.

31

A76656

GASKET

- water pump body (Not used)

1шт.

34

A43006

GASKET KIT

OIL PAN GASKET KIT - , for complete engine overhaul order 1-A44085, 1-A44075, 1-A43006 and 3-M20614, Includes: Ref. 35 - 38

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET - oil, Serial Range: pan-block

1шт.

36

A62402

GASKET

- oil pan corner

2шт.

37

A27968

RING

- drain plug

1шт.

38

A57966

GASKET

- torque converter

1шт.

40

M20614

SEAL KIT

SET - valve seals (Set of 4 seals and installation sleeve)

3шт.
