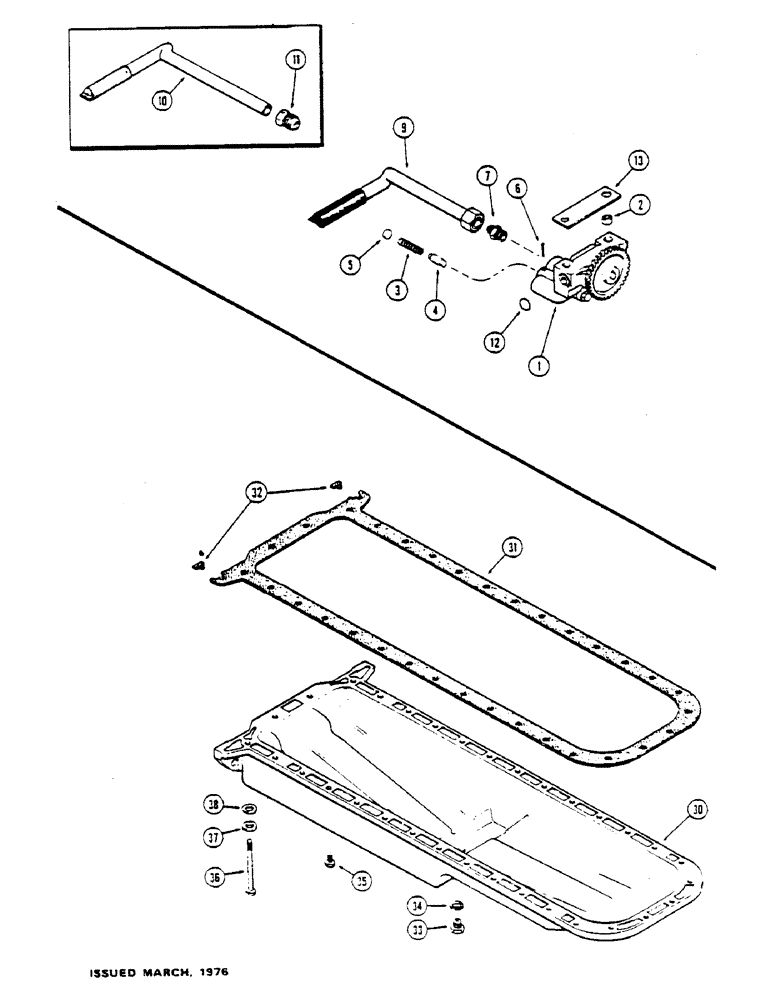

Запчасти Case IH 1175 (032) - (451B) TURBO DIESEL ENGINE, OIL PUMP (02) - ENGINE

1

A144773

PUMP

ASSY. - oil (Replaces A65080), Includes: Ref. 2 - 6

1шт.

2

A58915

SLEEVE

- pump body

1шт.

3

A59111

SPRING

- relief valve

1шт.

4

A34992

PISTON

VALVE - relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- relief valve (45/64" cup type)

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

A142004

CONNECTOR, ELEC

CONNECTOR - oil pump screen tube

1шт.

9

A142449

TUBE

ASSY. - oil suction (Incl. screen) (Replaces A65483 & A66174

1шт.

10

A66174

TUBE

ASSY. - oil suction (Incl. screen) (Order 1-A142449 & 1-A142004)

1шт.

11

222-510

TUBE NUT,1 1/4"-18

NUT - tube, 1" inverted flare (Used w/A66174)

1шт.

12

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil port (15/16 x 1-1/8 x 3/32")

1шт.

13

A58859

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

30

A63907

PAN

- oil

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order from Figure 34), oil

1шт.

32

A62402

GASKET

- corner, oil pan

2шт.

33

A140222

PLUG

- drain, oil pan (3/4" N.F.) (Replaces A14280)

1шт.

34

A58608

GASKET

- drain plug (3/4 x 1 x 1/8" nylon), oil pan

1шт.

35

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" N.C. (spec. incl. lockwasher), oil pan

28шт.

36

A57436

BOLT

- rear (3/8 x 5-3/4" N.C. hex.), oil pan

2шт.

37

A22317

WASHER

- copper (25/64 x 11/16 x 18 ga.), oil pan

2шт.

38

A7085

WASHER

- copper (25/64 x 9/16 x 18 ga.), oil pan

1шт.
