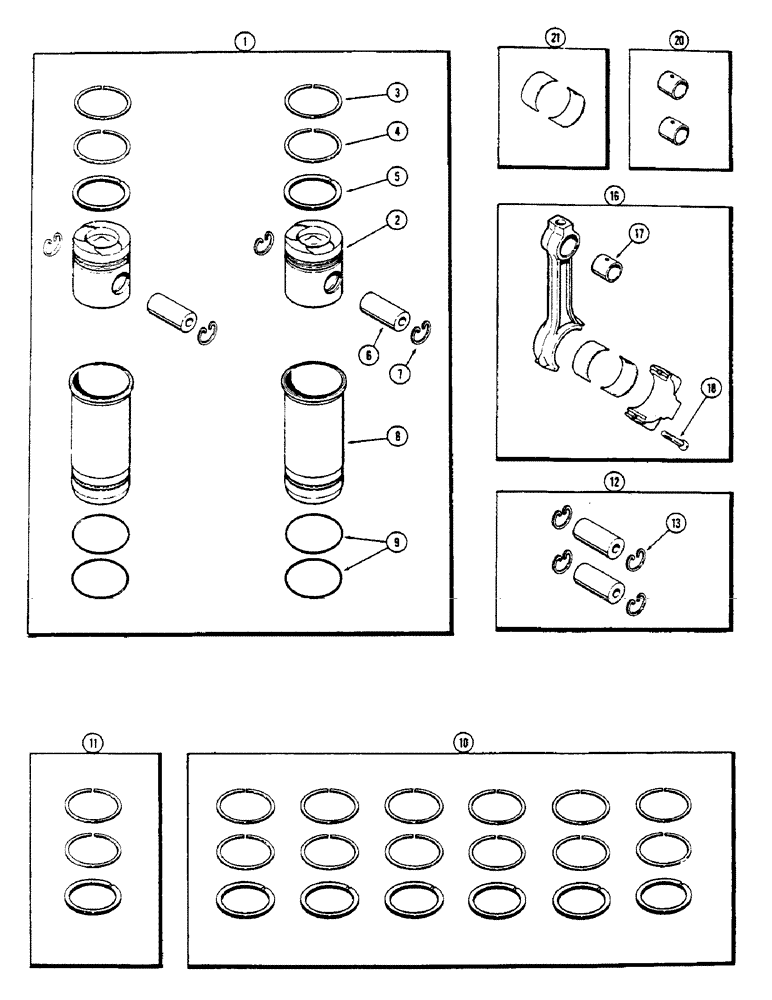

Запчасти Case IH 1175 (030) - (451B) TURBO DIESEL ENGINE, PISTON ASSEMBLY AND CONNECTING RODS (02) - ENGINE

1

A46021

PISTON

PISTON & SLEEVE SET - (matched set of 2) (Replaces A43075), Inlcudes: Ref. 2 - 9

3шт.

2

A65040

PISTON

PISTON - (4-3/8" dia.) (Replaces A64101)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - 1st groove (Order Ref. 10 or 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - 2nd groove (Order Ref. 10 or 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Order Ref. 10 or 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 12)

2шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , pin, see ref. 12 1.625", Int, #162

4шт.

8

A142367

SLEEVE

SLEEVE - cylinder liner (Replaces A59093)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve seal (4-1/4 x 4-1/2 x 1/8")

4шт.

10

A43074

RING, SET

RING KIT - (re-ring 6 pistons), Includes: Ref. 11

1шт.

11

A43073

RING

RING KIT - (re-ring 1 piston)

6шт.

12

A43095

PIN

PINS - piston (Set of 2 incl. rings), Includes: Ref. 13

3шт.

13

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

4шт.

16

A62954

ROD, CONNECTING

ROD ASSY. - connecting, Includes: Ref. 17 and 18

6шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

6шт.

AC62954

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number, N.A. Only

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 20)

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - conn. rod cap

2шт.

20

A42491

BUSHING

BUSHING - piston pin (Set of 2)

3шт.

21

A43173

BEARING LINER

LINERS - bearing, conn. rod (Std.)

6шт.

21

A43174

BEARING LINER

LINERS - bearing, conn. rod (.002" undersize)

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

LINERS - bearing, conn. rod (.010" undersize)

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

LINERS - bearing, conn. rod (.020" undersize)

6шт.

21

A43177

BEARING LINER

LINERS - bearing, conn. rod (.030" undersize)

6шт.
