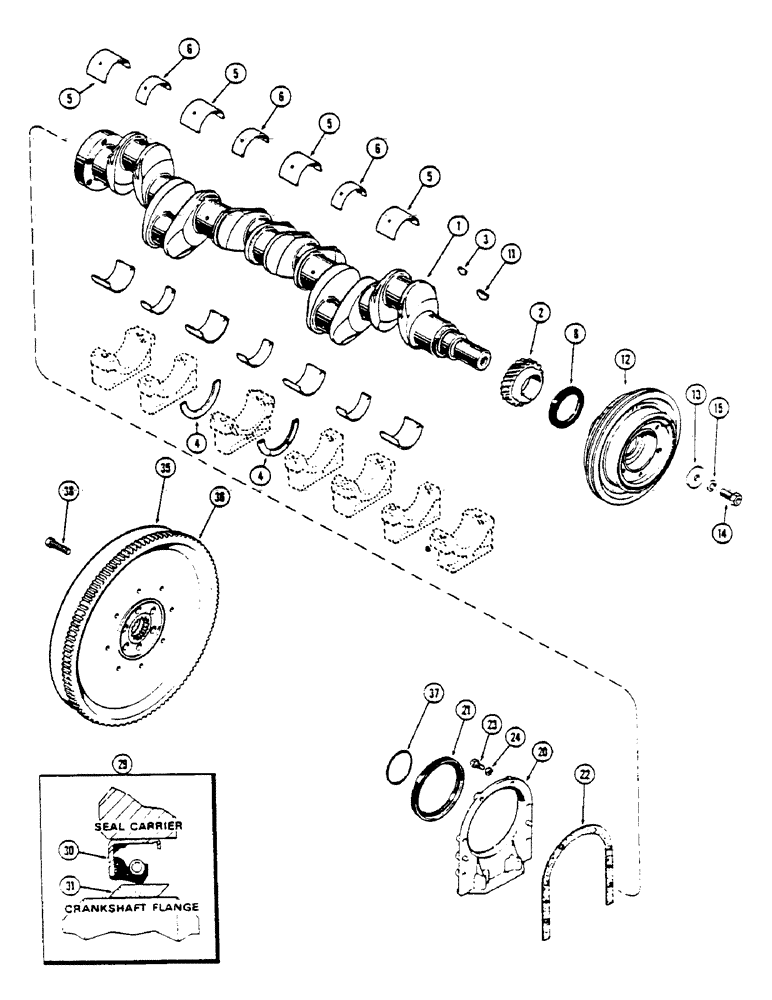

Запчасти Case IH 1175 (028) - (451B) TURBO DIESEL ENGINE, CRANKSHAFT AND FLYWHEEL (02) - ENGINE

1

A136106

CRANKSHAFT

- engine (Replaces A66436 & A64100), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft front (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear to crankshaft #C, 5/16" x 1 1/8", HT

1шт.

4

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust (.185")

2шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust (.191")

2шт.

5

A43163

BEARING LINER

LINERS - bearing, wide (Std.)

4шт.

5

A43164

BEARING LINER

LINERS - bearing, wide (.002" undersize)

4шт.

5

A43165

BEARING LINER

LINERS - bearing, wide (.010" undersize)

4шт.

5

A43166

BEARING LINER

LINERS - bearing, wide (.020" undersize)

4шт.

5

A43167

BEARING LINER

LINERS - bearing, wide (.030" undersize)

4шт.

6

A43158

BEARING LINER

LINERS - bearing, narrow (Std.)

3шт.

6

A43159

BEARING LINER

LINERS - bearing, narrow (.002" undersize)

3шт.

6

A43160

BEARING LINER

LINERS - bearing, narrow (.010" undersize)

3шт.

6

A43161

BEARING SET

LINERS - bearing, narrow (.020" undersize)

3шт.

6

A43162

BEARING LINER

LINERS - bearing, narrow (.030" undersize)

3шт.

8

A62049

OIL SEAL

- oil, crankshaft front, 2-5/8 x 3-5/8 x 15/32"

1шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

12

A66446

PULLEY

- belt drive (Replaces A64106)

1шт.

13

A27903

WASHER

- retainer, drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley to crankshaft Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- rear oil seal

1шт.

21

A62050

OIL SEAL

- rear, 4-3/4 x 5-3/4 x 1/2" (See Ref. 29)

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

29

A43194

KIT

- crankshaft wear seal, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil

1шт.

31

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal wear

1шт.

35

A58934

FLYWHEEL

ASSY. - crankshaft, Includes: Ref. 36

1шт.

36

A58778

GEAR

- ring (139T)

1шт.

37

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft (2-3/4 x 3 x 1/8")

1шт.

38

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- 5/8 x 2" N.F. hex.

6шт.
