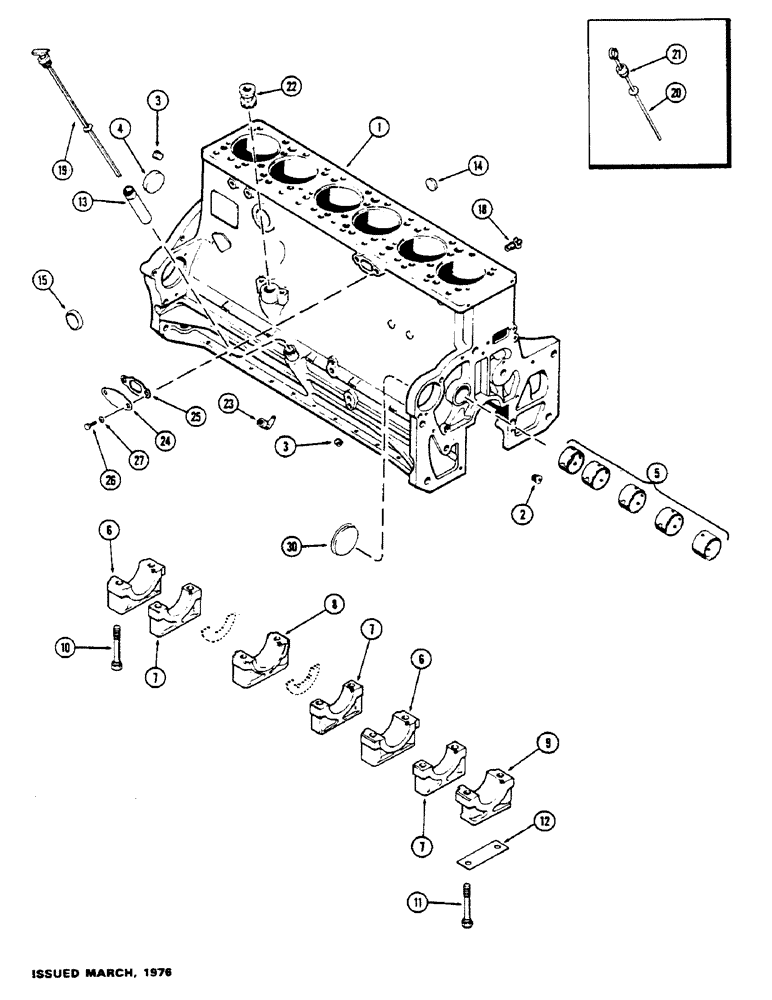

Запчасти Case IH 1175 (027A) - (451B) TURBO DIESEL ENGINE, CYLINDER BLOCK ASSEMBLY, USED PRIOR TO ENGINE SERIAL NUMBER 2555990 (02) - ENGINE

A43076

SKELETON ENGINE

BLOCK ASSY - short (Casting #A58513) (includes stripped block, pistons, rings, sleeves, crankshaft, conn. rods, camshaft, gears and push rod lifters) (Order A44095 block & 30-A76638 head bolts), Includes: Ref. 1 - 15

1шт.

1

A42068

BLOCK

ASSY. - stripped (Casting #A58513) (Order A44097 block & 30-A76638 head bolts), Includes: Ref. 2 - 15

1шт.

2

221-1843

PLUG

- pipe, 3/8" socket hd.

3шт.

3

221-1004

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/8" slotted headless

6шт.

4

A24361

PLUG

- rear (2-3/8" cup type)

1шт.

5

A23544

BUSHING

KIT - camshaft

1шт.

6

A58783

BEARING CAP

CAP - wide bearing, crankshaft

2шт.

7

A58784

BEARING CAP

CAP - narrow bearing, crankshaft

3шт.

8

A58785

BEARING CAP

CAP - thrust bearing, crankshaft

1шт.

9

A58782

CAP

- front bearing, crankshaft

1шт.

10

A58566

STEP BOLT

BOLT - bearing cap (5/8 x 4-1/2" N.C.)

12шт.

11

A58567

STEP BOLT

BOLT - oil pump & brg. cap (5/8 x 6-13/16" hex.)

2шт.

12

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

13

A34540

TUBE

SOCKET - oil filler

1шт.

14

A58568

PLUG,Cup, 1 3/8", Stainless

- L.H. side (1-3/8" cup type)

3шт.

15

A58569

PLUG,Cup, 2", Stainless

- R.H. side (2" cup type)

1шт.

18

A23656

COCK, DRAIN

VALVE - water drain (1/4" P.T.)

1шт.

19

A138328

DIPSTICK

- oil level (w/o "O" rings)

1шт.

20

A65051

DIPSTICK

- oil level (w/"O" rings), Includes: Ref. 21

1шт.

21

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - 3/4 x 1 x 1/8"

2шт.

22

A34266

DRIVE

ASSY. - tachometer

1шт.

24

A58851

PLATE

COVER - opening, water cooler tube

1шт.

25

A58670

GASKET

- cover

1шт.

26

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

30

A58750

PLUG,Cup, 3 1/4", Stainless

COVER - pump opening (3-17/64" cup type)

1шт.
