Запчасти Case IH 1175 (025A) - (451B) TURBO DIESEL ENGINE, CAMSHAFT (02) - ENGINE

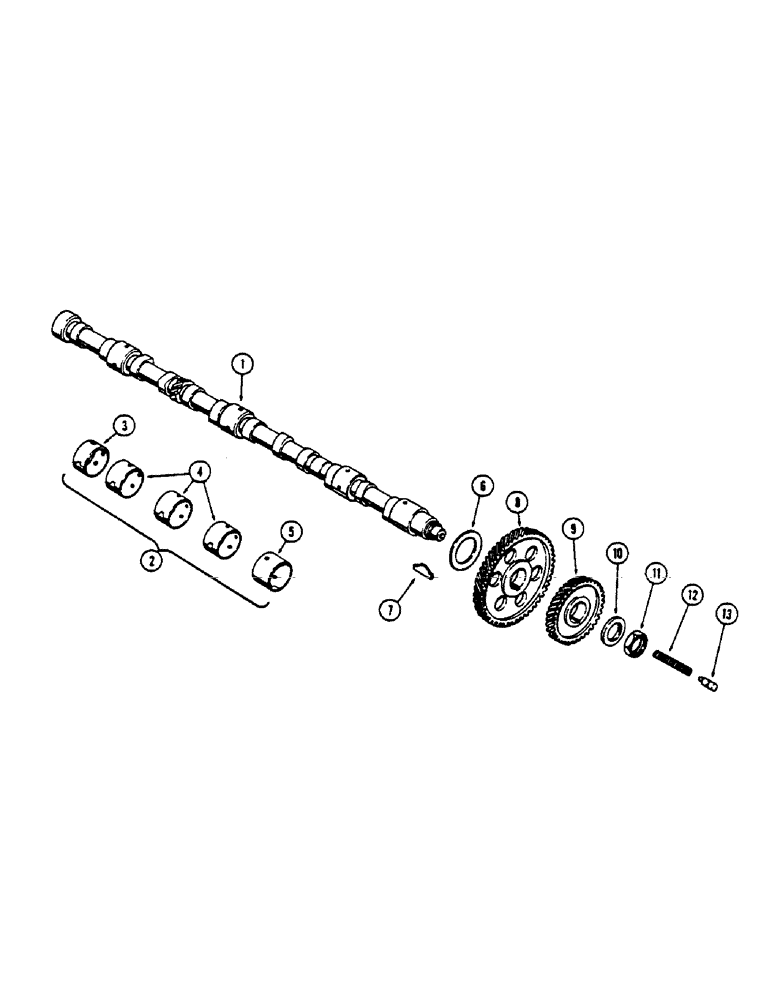

Схема запчастей Case IH 1175 - (025A) - (451B) TURBO DIESEL ENGINE, CAMSHAFT (02) - ENGINE
8
2
11
12
4
6
9
7
13
10
3
1
5

Артикул

Название

Примечание

Количество

1

A66743

CAMSHAFT

- (Replaces A62734)

1шт.

2

A23544

BUSHING

S - camshaft (Set of 5), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1-7/16" wide)

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front (1-21/32" wide)

1шт.

6

A21017

WASHER

- thrust, camshaft

1шт.

7

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - camshaft gear (5/16 x 1-5/16" Hi-Pro)

1шт.

8

A58592

GEAR

- drive, camshaft (54T)

1шт.

9

A58593

GEAR

- idler, camshaft (48T)

1шт.

10

A31038

THRUST WASHER

- camshaft nut (Replaces A58594)

1шт.

11

A58595

NUT

- camshaft

1шт.

12

P0027853A

LARGE PIN

- thrust plunger, camshaft

1шт.

13

A27852

PLUNGER

- thrust, camshaft

1шт.

Выбрано товаров: 13
