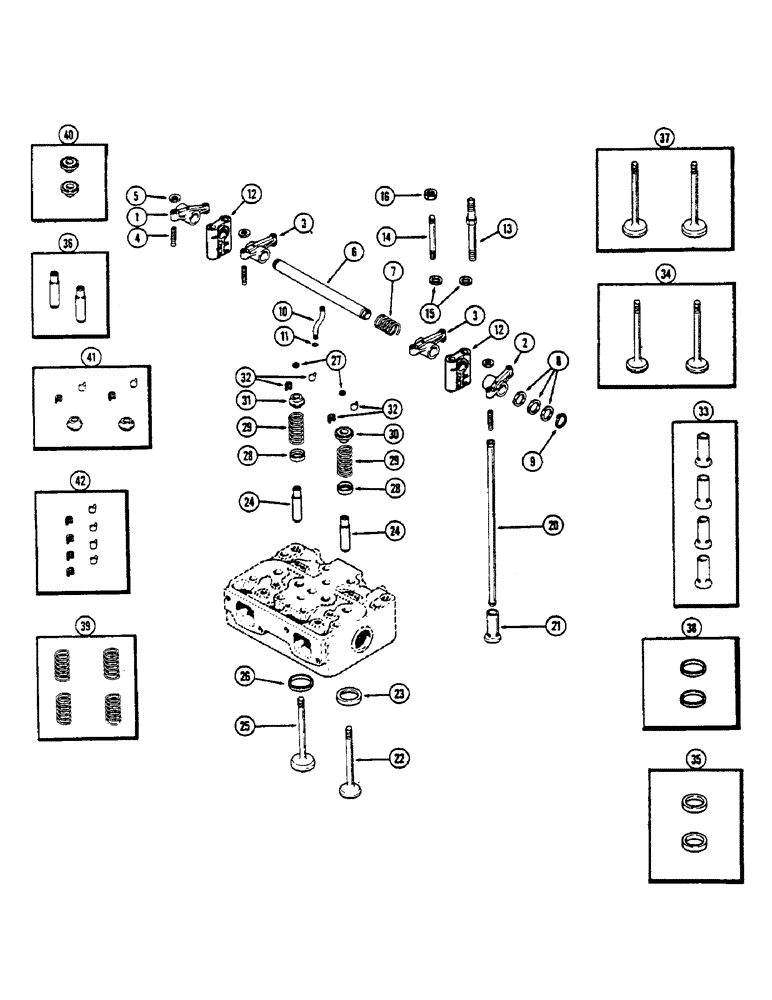

Запчасти Case IH 1175 (024) - VALVE MECHANISM, (451BDT) DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ARM - rocker, exhaust valve (1st, 3rd and 5th cyl.) (Incl. Ref. 4 and 5) (Replaces A58655)

3шт.

2

A148138

ARM

- rocker, exhaust valve (2nd, 4th and 6th cyl.) (Incl. Refs. 4 and 5) (Replaces A58656)

3шт.

3

A148136

ARM

- rocker, intake valve (Replaces A58654), Includes: Ref. 4 and 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

12шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

12шт.

6

A57532

SHAFT

ASSY. - rocker arm

3шт.

7

A27877

SPRING

- rocker shaft

3шт.

8

A27878

WASHER

- rocker shaft

3шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube (3/16 x 5/16 x 1/16")

3шт.

12

A61128

BRACKET

- rocker shaft

6шт.

13

A67121

STUD

- rockershaft bracket (7/16" N.C. x 6-1/16") (Replace A60885)

6шт.

14

A58659

STUD

- rocker shaft bracket (7/16" N.C. x 4-5/16")

6шт.

15

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16"

12шт.

16

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

6шт.

20

A141841

ROD

ASSY. - push (Replaces A58596)

12шт.

21

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order Ref. 33)

12шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 34)

6шт.

23

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 35)

6шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order Ref. 36)

12шт.

25

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 37)

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - intake valve (Order Ref. 38)

12шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A66328

SEAT

- valve spring (Replaces A58623)

12шт.

29

NSS

NOT SOLD SEPARAT

SPRING - valve (Order Ref. 39)

12шт.

30

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order Ref. 40)

6шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order Ref. 41)

6шт.

32

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order Ref. 42)

24шт.

33

A21653

KIT

LIFTERS - push rod (Set of 4 std.)

3шт.

33

A22463

KIT

LIFTERS - push rod (Set of 4) (.010" oversize)

3шт.

34

A42130

VALVE

S - exhaust (Set of 2)

3шт.

35

A44010

INSERT

S - exhaust valve seat (Set of 2) (Replaces A57485)

3шт.

36

A41781

GUIDE

S - valve stem (Set of 2)

6шт.

37

A41753

VALVE

S - intake (Set of 2) (Replaces A42129)

3шт.

38

A42761

INSERT

S - intake valve seat (Set of 2)

3шт.

39

A42895

SPRING

- valve (Set of 4)

3шт.

40

A44658

COIL

ROTO-CAP - exhaust valve (Set of 2) (Replaces A57433)

3шт.

41

A44645

KIT

RETAINER - intake valve (Set of 2 w/locks) (Replaces A21657)

3шт.

42

A40352

LOCK

S - valve spring (Set of 8)

3шт.
