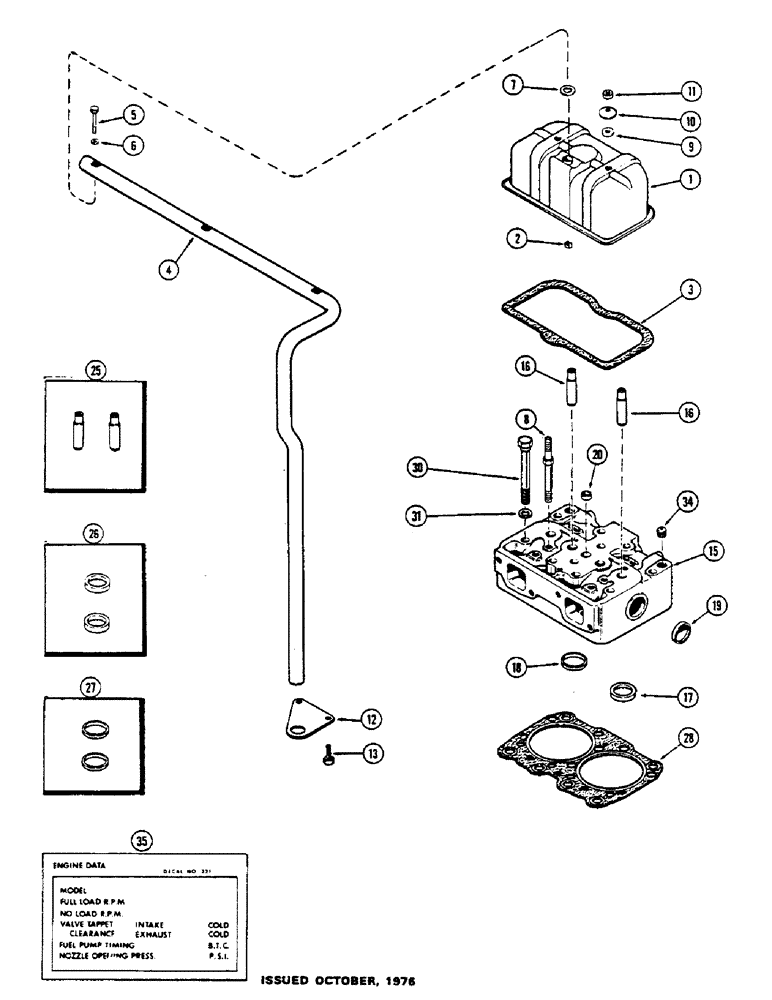

Запчасти Case IH 1175 (022) - (451B) TURBO DIESEL ENGINE, CYLINDER HEAD AND COVER (02) - ENGINE

1

A58929

COVER

ASSY. - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

-, Serial Range: cover-head

3шт.

4

A59053

TUBE

- breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

3шт.

6

A34133

GASKET

-, Serial Range: screw-tube

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

3шт.

8

A67121

STUD

- cover to head (7/16" N.C. x 6-1/16") (Replaces A60885)

6шт.

9

A23684

GASKET

GASKET - cover stud

6шт.

10

A23683

WASHER

- dished, cover stud

6шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

6шт.

12

A59054

BRACKET

- breather tube to oil pan

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. hex. (includes lockwasher)

2шт.

15

A66441

HEAD

ASSY. - cylinder (Replaces A61251), Includes: Ref. 16 - 20

3шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order Ref. 25)

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 26)

2шт.

18

NSS

NOT SOLD SEPARAT

INSERT - intake valve seat (Order Ref. 27)

2шт.

19

A34124

PLUG,Cup, 1 5/8", Stainless

- cup, 1-5/8" dia.

2шт.

20

A58620

PLUG,Cup, 3/4", Stainless

- cup, 3/4" dia.

3шт.

25

A41781

GUIDE

S - valve stem (Set of 2)

6шт.

26

A44010

INSERT

S - exhaust valve seat (Set of 2) (Replaces A57485)

3шт.

27

A42761

INSERT

S - intake valve seat (Set of 2)

3шт.

28

A138121

GASKET

- cylinder head to block (Replaces A64105)

3шт.

30

A76638

BOLT

- 5/8 x 6-1/4" N.C. hex. spec. (1st used eng. ser. no. 2555990)

30шт.

30

A62732

STEP BOLT

BOLT - 5/8 x 5-5/8" N.C. hex. to eng., Serial Range: -2555990

30шт.

31

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - head bolt (21/32 x 1 x 3/16")

30шт.

34

221-1843

PLUG

- pipe, 3/8" hex. socket

6шт.

35

321-3015

DECAL

- engine data (Replaces 321-2312)

1шт.
