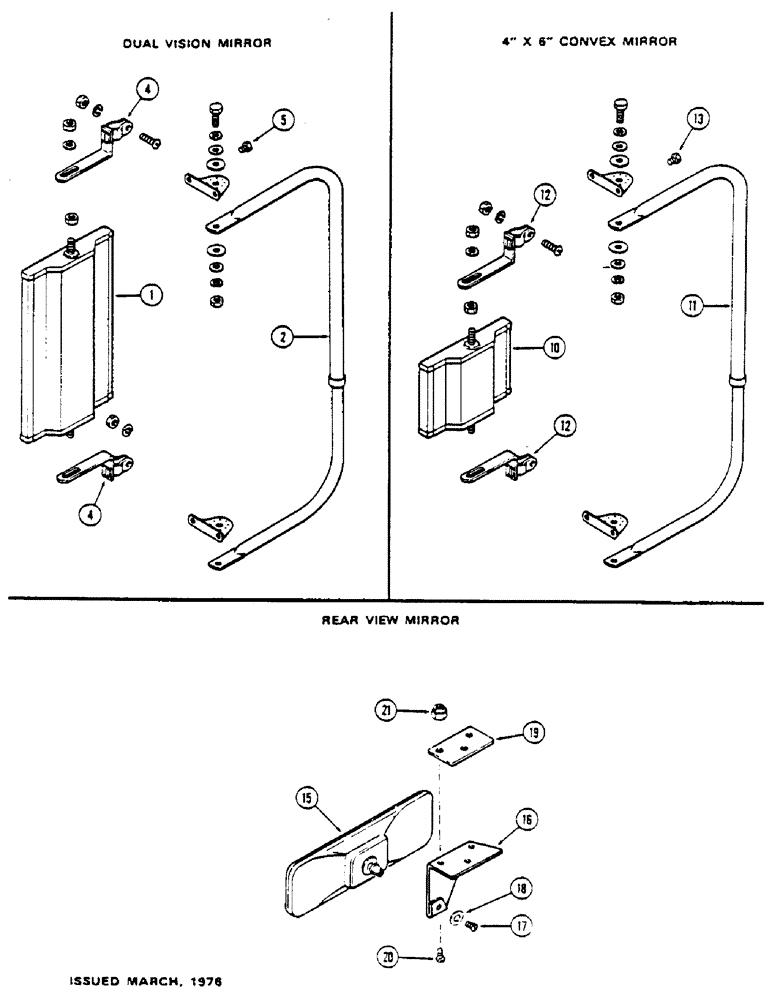

Запчасти Case IH 1175 (340) - CAB, MIRRORS, DUAL VISION (09) - CHASSIS

A61895

ATTACHMENT

KIT - mirror, Includes: Ref. 1 - 5

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSY. - dual vision (Order A61895), Includes: Ref. 1, 2 and 4

1шт.

1

A42765

MIRROR

- dual vision

1шт.

2

A42764

BRACKET

- mirror swing away

1шт.

4

A42767

ADAPTER

- mirror bracket (Replaces A42766)

2шт.

5

187-1009

BOLT

- 1/4 x 3/8" hex., Shakeproof

4шт.

A61897

KIT

- mirror, Includes: Ref. 10 - 13

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSY. - 4 x 6 convex (Order A61897), Includes: Ref. 10 - 12

1шт.

10

A42768

MIRROR

- 4 x 6 convex

1шт.

11

A42764

BRACKET

- mirror swing away

1шт.

12

A42767

ADAPTER

- mirror bracket

2шт.

13

187-1009

BOLT

- 1/4 x 3/8" hex., Shakeproof

4шт.

F89785

MIRROR

KIT - mirror - inside rear view, Includes: Ref. 15 - 21

1шт.

15

F89695

MIRROR

- rear view

1шт.

16

F63369

BRACKET

- mounting

1шт.

17

163-15

SCREW,Hex, #10 - 24 x 5/8"

- #10-24 x 3/8" flat hd.

1шт.

18

195-511

WASHER,#10

- 13/64 x 15/32 x 1/16"

1шт.

19

F63381

PLATE

- back-up, mirror

1шт.

20

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rd. hd.

3шт.

21

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.
