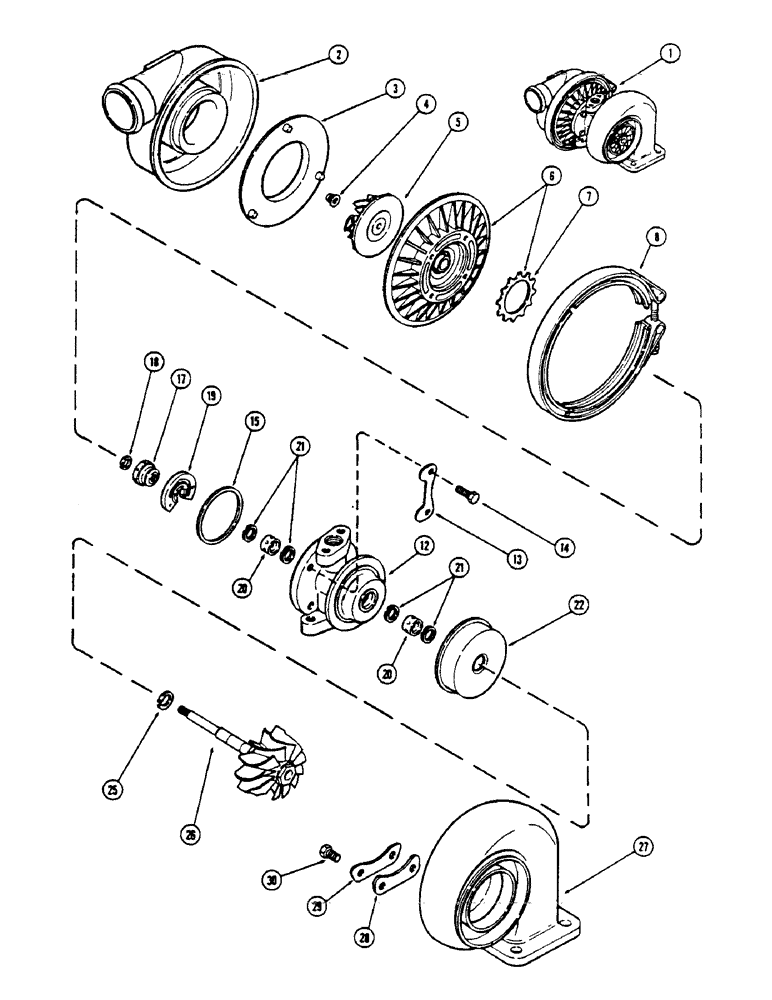

Запчасти Case IH 1175 (021C) - (451B) TURBO DIESEL ENGINE, T04 TURBO-CHARGER (02) - ENGINE

A43360

TURBOCHARGER

TURBO-CHARGER - return number, PART NO. A43360 IS USED ONLY TO RETURN ORIGINAL EQUIPMENT TURBO-CHARGER FOR CREDIT ON REBUILT TURBO-CHARGER

1шт.

1

A43361

REMAN-TURBOCHARGER

TURBO-CHARGER - rebuilt, Includes: Ref. 2 - 30

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor wheel (Order Ref. 2 - 9 Figure 21A)

1шт.

3

NSS

NOT SOLD SEPARAT

DIFFUSER - (Order Ref. 2 - 9 Figure 21A)

1шт.

4

A44831

NUT

- lock, compressor wheel

1шт.

5

NSS

NOT SOLD SEPARAT

WHEEL - compressor (Order Ref. 2 - 9 Figure 21A)

1шт.

6

A44844

PLATE

ASSY. - back, compressor, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - thrust

1шт.

8

A44822

CLAMP

- band, back, Serial Range: plate-housing

1шт.

12

A44825

HOUSING

- center

1шт.

13

A44820

PLATE

- lock, center housing bolt

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

15

A44833

RING

- seal, center housing

1шт.

17

A44830

COLLAR

- thrust

1шт.

18

A44828

RING

- piston, 1/2" O.D.

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

20

A44826

BEARING

- center housing (std.)

2шт.

20

A44849

BUSHING

BEARING - center housing (.005" undersize)

2шт.

20

A44850

BUSHING

BEARING - center housing (.010" undersize)

2шт.

21

A44827

RING

- snap, bearing retaining

4шт.

22

A44834

GUARD

SHROUD - wheel

1шт.

25

A44829

RING

- piston, 23/32" O.D.

1шт.

26

A44841

WHEEL

ASSY. - turbine

1шт.

27

A44846

HOUSING

- turbine

1шт.

28

A44823

CLAMP

- turbine housing

3шт.

29

A44824

PLATE

- lock, turbine housing bolt

3шт.

30

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.
