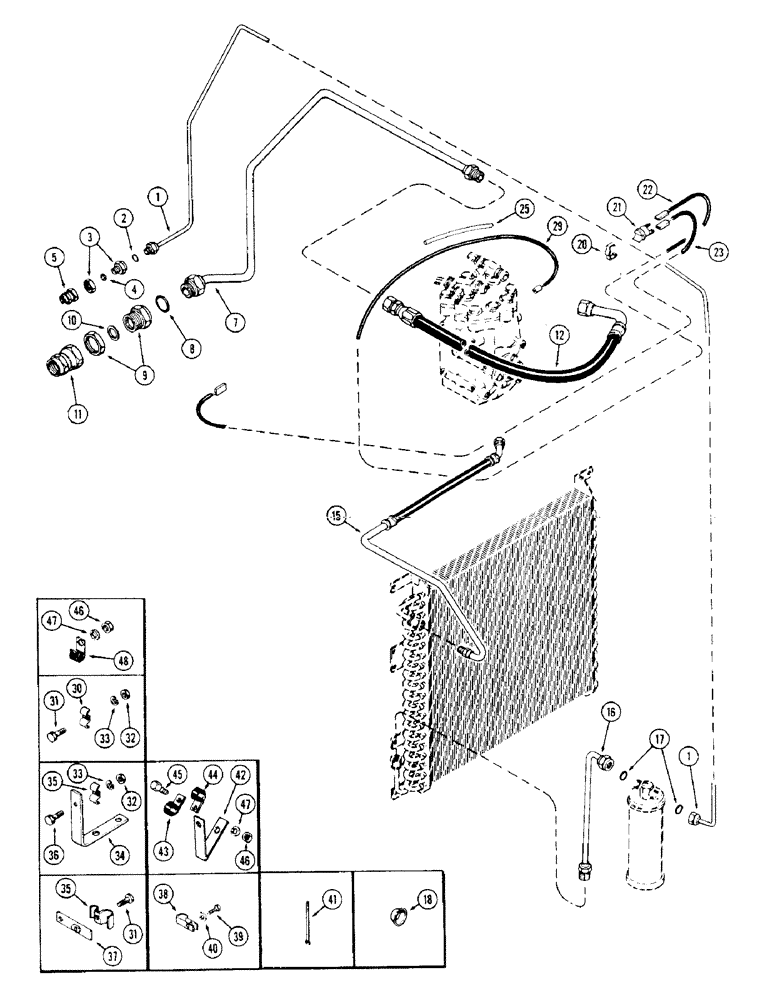

Запчасти Case IH 1175 (332) - AIR CONDITIONER, HOSES AND TUBES, WITHOUT SAFETY SWITCH, USED PRIOR TO TRACTOR SERIAL NUMBER 8731899 (09) - CHASSIS

1

A64581

TUBE

-, Serial Range: receiver-cab

1шт.

2

A61195

O-RING,0.364" ID x 0.5" OD

"O" RING - tube to coupling, 23/64 x 1/2 x 1/16"

1шт.

3

A61196

COUPLING, BREAK AWAY

COUPLING ASSY. - tractor tube, Includes: Ref. 4

1шт.

4

A42667

GASKET

"O" RING - coupling

1шт.

5

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSY. - cab tube

1шт.

7

A62225

TUBE

- cab to compressor, (w/union)

1шт.

8

A61197

O-RING,1.78mm Thk x 27mm ID

"O" RING - tube to coupling, 1-3/64 x 1-3/16 x 1/16"

1шт.

9

A61194

COUPLING, BREAK AWAY

COUPLING ASSY. - tractor tube, Includes: Ref. 10

1шт.

10

A42668

GASKET

- coupling

1шт.

11

A42664

COUPLING, BREAK AWAY

COUPLING ASSY. - cab tube

1шт.

12

A61207

HOSE

- cab, Serial Range: tube-compressor

1шт.

15

A64580

HOSE

-, Serial Range: compressor-condenser

1шт.

16

A64579

TUBE

-, Serial Range: condenser-receiver

1шт.

17

A61198

O-RING,0.07" Thk x 0.301" ID, -11

"O" RING - 5/16 x 7/16 x 1/16"

4шт.

18

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

18

222-994

GASKET,1/2 Tube, Fl, Copper

- flare, copper (for 1/2" tube)

1шт.

18

222-995

SEALING WASHER,15.88mm ID

- flare, copper (for 5/8" tube)

1шт.

20

A61789

CLAMP

- thermostat

1шт.

21

A61291

THERMOSTAT

- high temperature

1шт.

22

A61755

ELECTRICAL WIRE

WIRE - thermostat to compressor clutch, 36"

1шт.

23

A42931

ELECTRICAL WIRE

WIRE - thermostat to cab harness, 197"

1шт.

25

A62053

HARNESS

LOOM - wire

1шт.

30

A61199

CLIP

- tube

1шт.

31

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

A61819

BRACKET - air cond. tube mtg.

1шт.

35

A61704

CLAMP - tubes

2шт.

36

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

2шт.

37

A62254

BRACKET

- air cond. tube mtg. (Order A64397)

1шт.

38

A7922

CLIP

- clutch lead wire

1шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

1шт.

41

L11541

CABLE TIE,203.2mm L, Nylon

STRAP -, Serial Range: wires-tubes

2шт.

42

A62206

BRACKET - air cond. tubes

1шт.

43

NLS

NO LONGER SERVICED

CLIP - tube, 5/8"

1шт.

44

49845

CLAMP

CLIP - tube, 3/8"

1шт.

45

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

46

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

47

92-6

LOCK WASHER,3/8"

1шт.

48

A59718

CLAMP

CLIP - tube, "J" type open

1шт.
