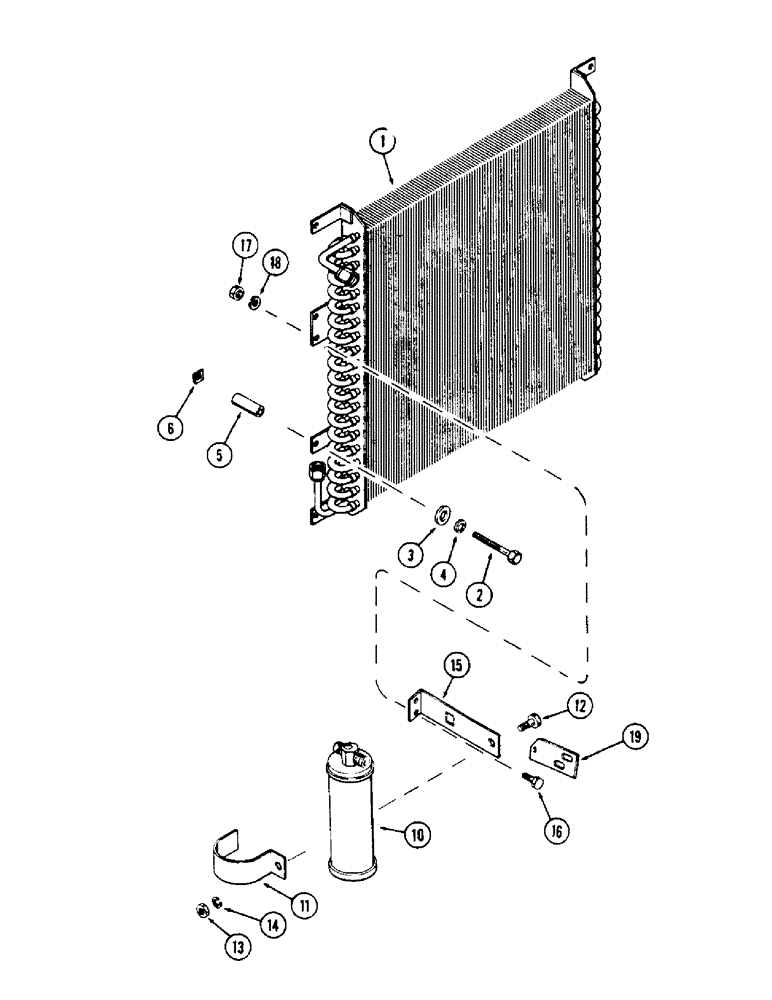

Запчасти Case IH 1175 (324) - AIR CONDITIONER, CONDENSER AND RECEIVER DRYER, USED PRIOR TO TRACTOR SERIAL NUMBER 8731899 (09) - CHASSIS

1

A61812

COIL

- condenser

1шт.

2

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

8шт.

3

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

8шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

5

A61813

SPACER - coil mounting

8шт.

6

131-611

NUT,Ret, 1/4"-20

- 1/4" N.C. Tinnerman

8шт.

10

A61688

TANK

RECEIVER - drier

1шт.

11

A61193

CLAMP

- receiver

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

A62131

BRACKET - receiver

1шт.

16

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

17

25-104

NUT,1/4"-20, G5

1шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

A65304

STRAP - support, mounting, Serial Range: bracket-grille

1шт.
