Запчасти Case IH 1175 (316) - COMPRESSOR DRIVE (09) - CHASSIS

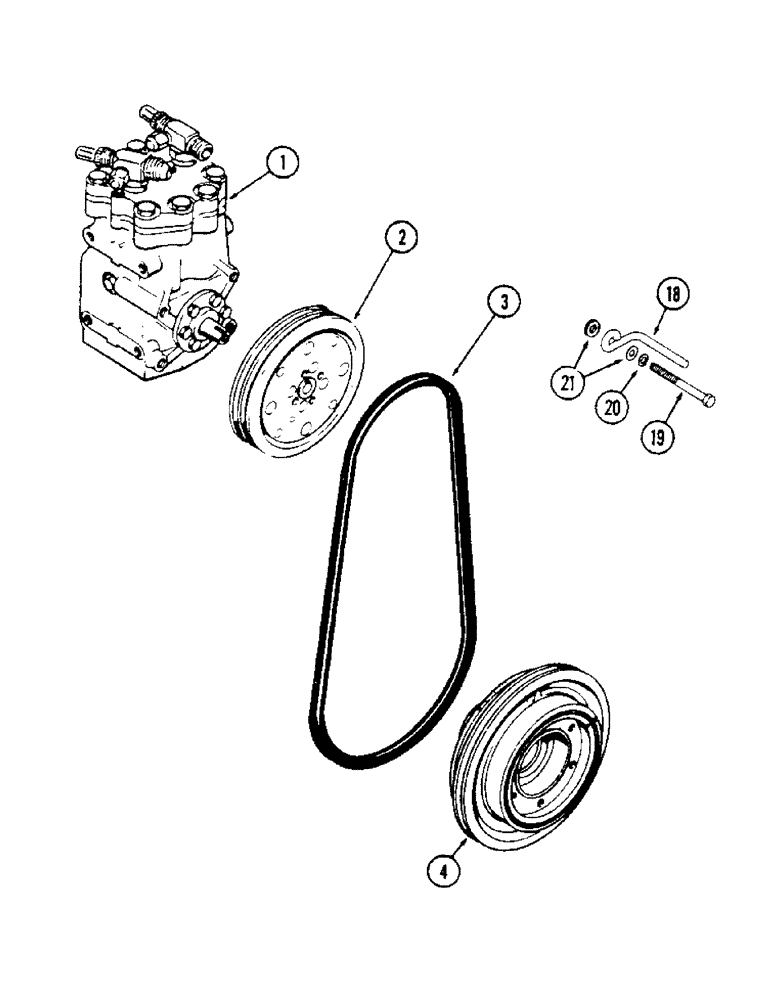

Схема запчастей Case IH 1175 - (316) - COMPRESSOR DRIVE (09) - CHASSIS
19
18
2
20
1
3
4
21

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

COMPRESSOR ASSY. - (See Figures 334 and 336)

1шт.

2

REF

INSTRUCTION

CLUTCH - compressor (See Figure 338)

1шт.

3

A65717

V-BELT,0.50" W x 72.80" L

Compressor Drive, Replaces A62962 0.50" W x 72.80" L

1шт.

4

A66446

PULLEY

- compressor drive (on crankshaft) (Replaces A64106)

1шт.

A65719

KIT

- rub bar, drive belt, Includes: Ref. 18 - 21

1шт.

18

A65718

GUARD

BAR - rub, drive belt

1шт.

19

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

Выбрано товаров: 9
