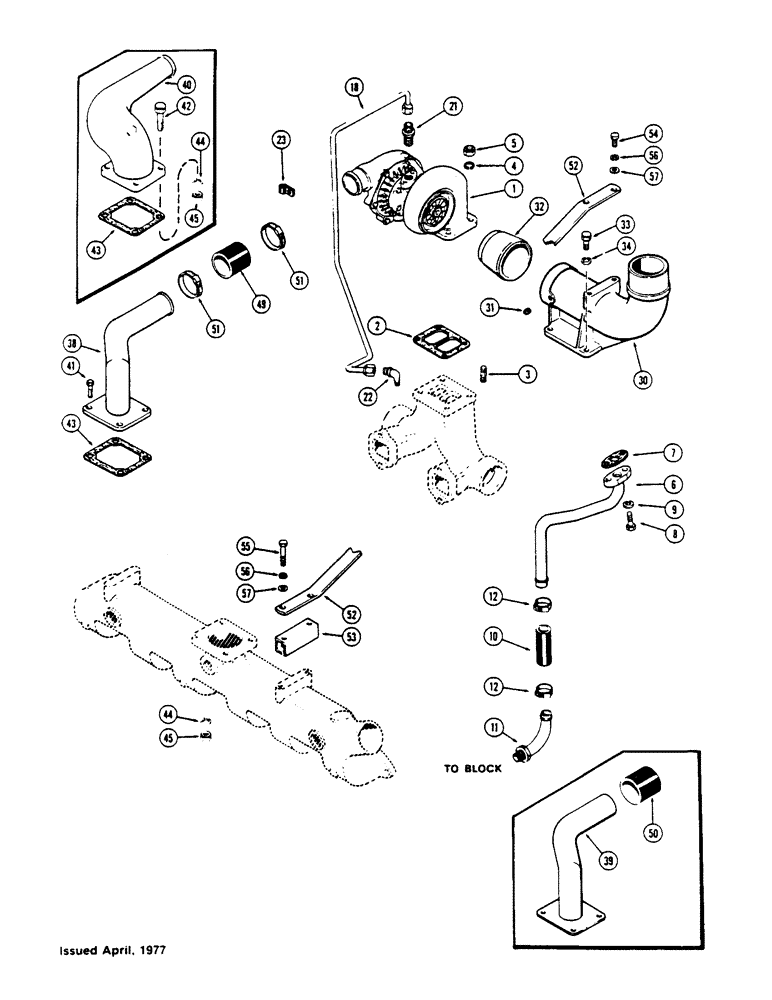

Запчасти Case IH 1175 (020) - TURBO-CHARGER, (451BDT) DIESEL ENGINE (02) - ENGINE

1

A44052

TURBOCHARGER

TURBO-CHARGER - (service no.) (See Figure 021A)

1шт.

1

A48190

REMAN-TURBOCHARGER

Remanufactured, TURBOCHARGER

1шт.

1

A48189

CORE-TURBOCHARGER

Return Number

1шт.

1

A44051

CORE-TURBOCHARGER

TURBO-CHARGER - (this part no. used only in requesting return authority on used Garret turbo-charger for credit) (Order A44052 for repairs)

1шт.

2

A58899

GASKET,0.45mm Thk

GASKET -, Serial Range: turbo-manifold

1шт.

3

G11204

STUD

STUD - 3/8" N.C. x 1-1/2"

1шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez-Pruf

4шт.

6

A62518

TUBE

TUBE ASSY. - oil drain

1шт.

7

A58892

GASKET,1.59mm Thk

GASKET - drain tube flange

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

10

A58893

HOSE

HOSE - drain tube (1-1/4" I.D. x 3-1/2")

1шт.

11

A58897

FITTING

FITTING - drain tube hose

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

18

A64375

TUBE

TUBE ASSY. - oil supply

1шт.

21

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - 3/8" tube x 1/4" P.T.

1шт.

22

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

ELBOW - 3/8" tube x 3/8" P.T.

1шт.

23

49845

CLAMP

CLIP - oil supply tube

1шт.

30

A61265

ELBOW

ELBOW - exhaust

1шт.

31

221-12

PLUG,Sq Hd, 1/4"-18

PLUG - pipe, 1/4" sq. hd

1шт.

32

A65554

TUBE

CONNECTOR - exhaust elbow p/n A65554

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

34

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

38

A150450

ELBOW

ELBOW - air intake, turbocharger (Replaces A77242 and A58903)

1шт.

39

A77242

ELBOW

ELBOW - air intake, turbo-charger (formed tube) (Replaces A58903) (Order 1-A150450 elbow and 1-A150449 hose)

1шт.

40

A58903

ELBOW UNION

Union Elbow ELBOW - turbo to air intake (cast) (Order 1-A150450 elbow and 1-A150449 hose)

1шт.

41

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" N.C. hex. (used w/A77242 & A150450 elbow)

4шт.

42

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, (Used w/A58903 elbow) Hex, 3/8"-16 x 1 3/4", G5

4шт.

43

A58910

GASKET

GASKET -, Serial Range: elbow-manifold

1шт.

44

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

45

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

4шт.

49

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

(Used w/A150450 elbow)

1шт.

50

A58894

HOSE

HOSE - intake elbow, 2-3/8" long (used w/A77242 and A58903 elbow)

1шт.

51

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

52

A61944

BRACE

BRACE - elbow, exhaust

1шт.

53

A67057

SPACER

SPACER - brace to manifold (Replaces A61945)

1шт.

54

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

55

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT - 3/8 x 2-1/2" N.C. hex

2шт.

56

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

57

95-6

WASHER,3/8"

WASHER - 7/16 x 1 x 5/64"

4шт.
