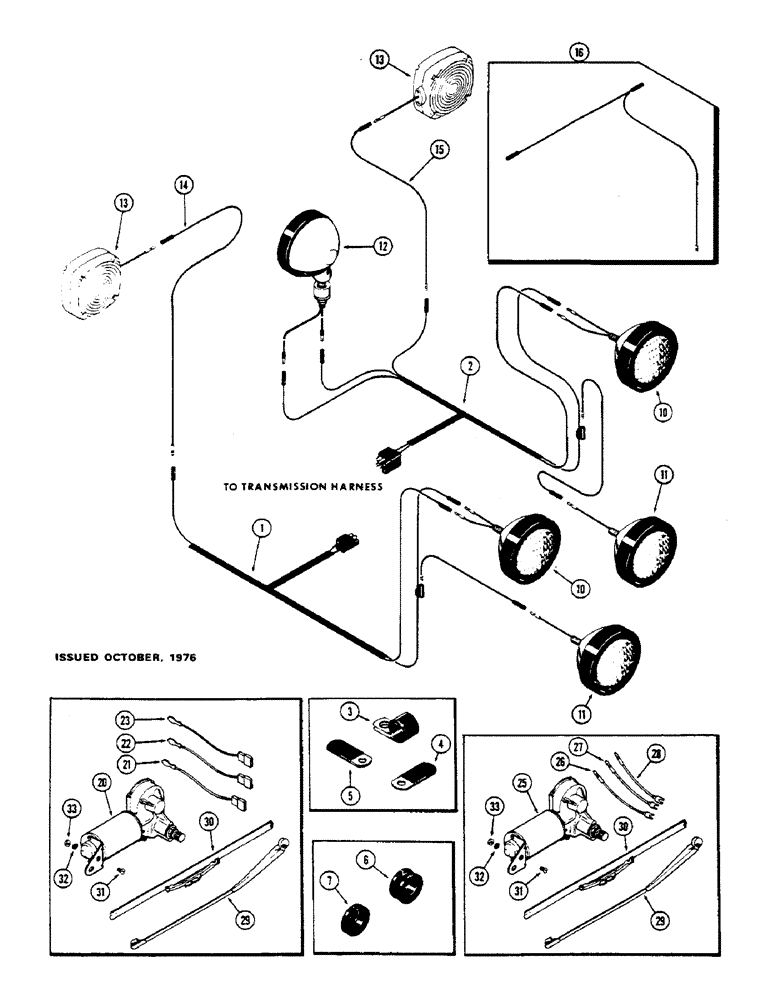

Запчасти Case IH 1175 (308) - CAB, ELECTRICAL EQUIPMENT AND WIRING, FENDER (09) - CHASSIS

1

A62414

HARNESS

- fender wire, R.H.

1шт.

2

A61146

HARNESS

- fender wire, L.H.

1шт.

3

NLS

NO LONGER SERVICED

CLIP - wire harness

4шт.

4

A22883

CLIP

- fender harness

2шт.

5

A37179

CLIP

- fender harness

2шт.

6

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- cab fender

1шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- cab front frame

2шт.

10

REF

INSTRUCTION

LAMP - front head driving (See Figure 070)

2шт.

11

REF

INSTRUCTION

LAMP - front cultivator (See Figure 072)

2шт.

12

REF

INSTRUCTION

LAMP - rear flood and tail (See Figure 070)

1шт.

13

REF

INSTRUCTION

LAMP - flasher (Order A44201 Figure 074)

2шт.

14

F63584

CABLE

WIRE - flasher, R.H. (110" dark brown) (1st used cab ser. no. 7821251)

1шт.

15

F63585

CABLE

WIRE - flasher, L.H. (60" tan w/white) (1st used cab ser. no. 7821251)

1шт.

16

F63368

ELECTRICAL WIRE

WIRE - flasher to harness to cab, Serial Range: -782151

1шт.

F98158

MOTOR, ELECTRIC

MOTOR ASSY. - windshield wiper (Replaces A42692), Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

21

F64188

ELECTRICAL WIRE

WIRE - motor, green

1шт.

22

F64189

ELECTRICAL WIRE

WIRE - motor, blue

1шт.

23

F64190

ELECTRICAL WIRE

WIRE - motor, orange

1шт.

A42692

MOTOR

ASSY. - windshield wiper (Order F98158), Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

26

A42693

ELECTRICAL WIRE

WIRE - motor, green (14" long) (to high terminal)

1шт.

27

A42694

ELECTRICAL WIRE

WIRE - motor, blue (14" long) (to low terminal)

1шт.

28

A42695

ELECTRICAL WIRE

WIRE - motor, orange (14" long) (to park terminal)

1шт.

29

T41946

ARM

- windshield wiper

1шт.

30

A42580

WIPER BLADE,203.2mm L

BLADE - windshield wiper

1шт.

31

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-16 x 1/2" rd. hd. self-tapping

1шт.

32

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

33

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C. hex

1шт.
