Запчасти Case IH 1175 (298) - CAB, CONTROLS AND WIRING, USED CAB SERIAL NUMBER 7814176 TO 7821251 (09) - CHASSIS

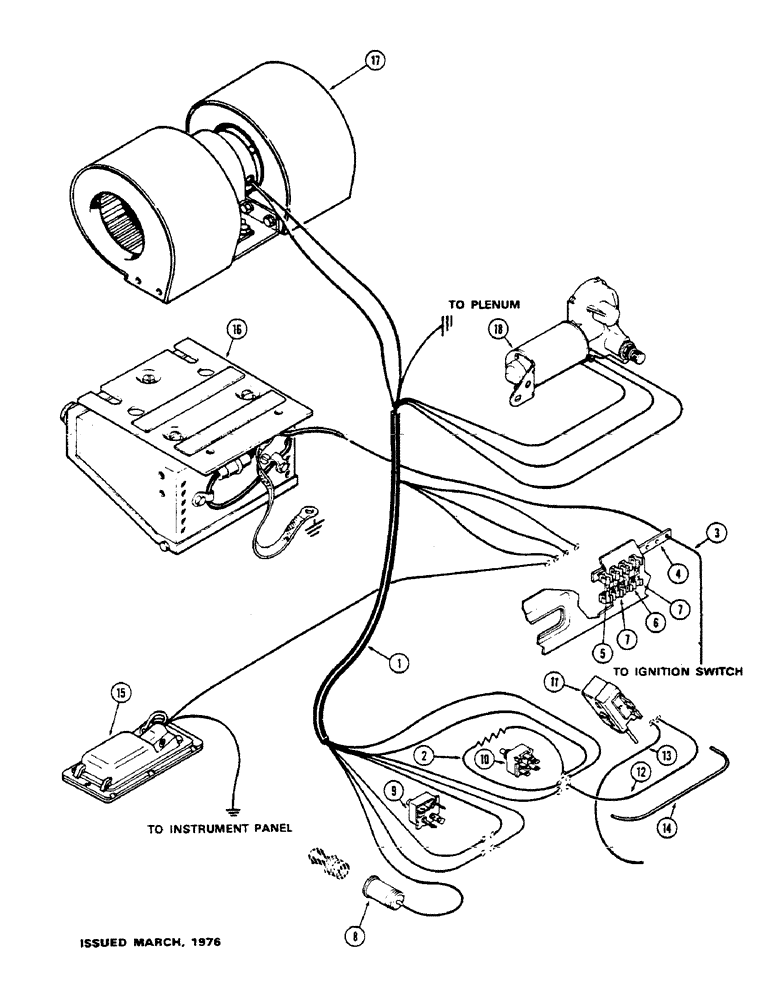

Схема запчастей Case IH 1175 - (298) - CAB, CONTROLS AND WIRING, USED CAB SERIAL NUMBER 7814176 TO 7821251 (09) - CHASSIS
4
10
17
3
14
5
11
7
15
6
7
2
8
9
13
12
1
16
18

Артикул

Название

Примечание

Количество

1

F63817

HARNESS

ASSY. - control panel wire, Includes: Ref. 2

1шт.

2

A42652

ELECTRICAL WIRE

WIRE - resistor, 18" (white w/orange and purple)

1шт.

3

F63816

ELECTRICAL WIRE

WIRE - harness to starter switch, 154-1/2" red

1шт.

4

F63512

BAR

- buss

1шт.

5

223-33

FUSE,1 Amp, Type 3AG

- buss, 1 amp.

1шт.

6

223-35

FUSE,8 Amp, Type 3AG

- buss, 8 amp.

1шт.

7

223-15

FUSE,15 Amp, Type 3AG

- buss, 15 amp.

2шт.

8

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

9

A42660

SWITCH

- wiper motor

1шт.

10

A42622

SWITCH

- blower motor

1шт.

11

A42623

CONTROL

- cab temperature

1шт.

12

A42624

ELECTRICAL WIRE

WIRE - blower switch to temp. control, 6" black

1шт.

13

F63525

ELECTRICAL WIRE

WIRE - temp. control to compressor clutch, 215" blue

1шт.

14

F63719

TUBE

- shielding, temperature control

1шт.

15

A42658

INTERIOR LIGHT

LIGHT - dome

1шт.

16

A62456

RADIO

KIT - (See Figure 314)

1шт.

17

NSS

NOT SOLD SEPARAT

BLOWER ASSY. - (See Figure 310)

1шт.

18

A42692

MOTOR

- windshield wiper

1шт.

Выбрано товаров: 18
