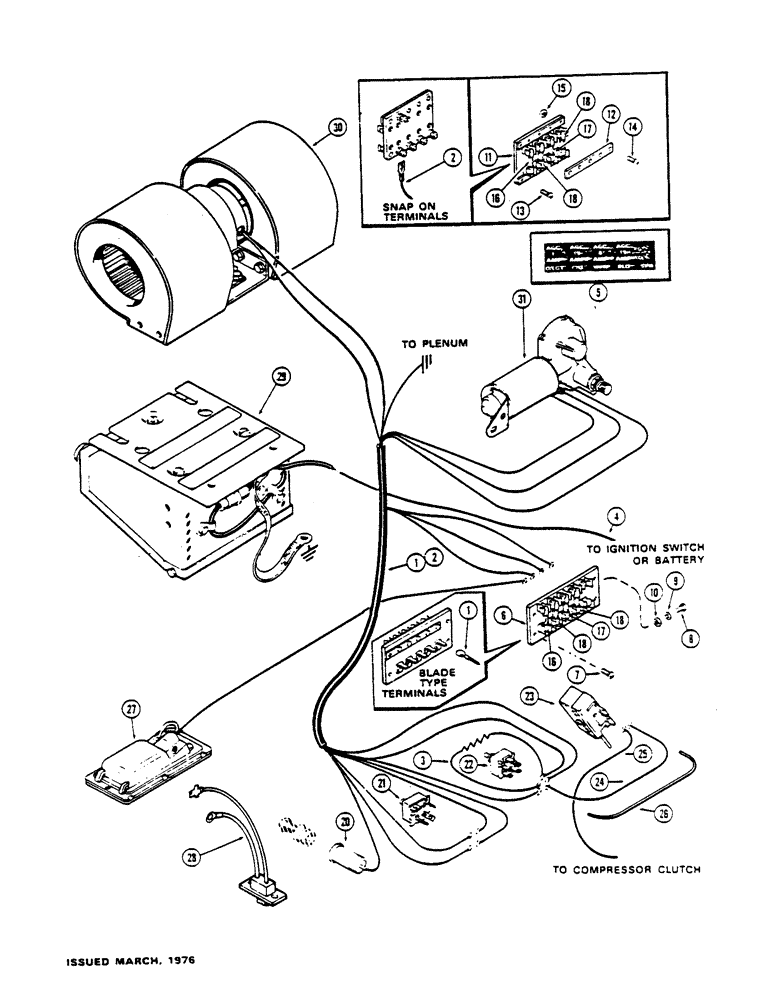

Запчасти Case IH 1175 (296) - CAB, CONTROLS AND WIRING, FIRST USED CAB SERIAL NUMBER 7821251 (09) - CHASSIS

1

F64111

HARNESS

ASSY. - control panel wire (Incl. Ref. 32) (1st used cab ser. no. 7837400) (w/blade type terminals), Includes: Ref. 3

1шт.

2

F63817

HARNESS

ASSY. - control panel wire to cab (w/snap-on terms.), Includes: Ref. 3, Serial Range: -7837400

1шт.

3

A42652

ELECTRICAL WIRE

WIRE - resistor, 18" (white w/orange and purple)

1шт.

4

F63816

ELECTRICAL WIRE

WIRE - harness to starter switch, 154-1/2" red

1шт.

5

321-2738

DECAL

- fuse

1шт.

6

F63858

BLOCK

FUSE BLOCK - (1st used cab ser. no. 7837400)

1шт.

7

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8-15

4шт.

8

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- #5-40 rd. hd. sltd.

1шт.

9

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

1шт.

10

129-630

NUT,#5-40, Brass

- #5-40 hex

1шт.

11

F64047

HOLDER

FUSE BLOCK - 5 pole to cab, Serial Range: -7837400

1шт.

12

F63512

BAR

- buss

1шт.

13

173-251

SCREW,Sl Rnd Hd, #6 - 32 x 3/4", Brass

- #6-32 x 3/4" rd. hd.

5шт.

14

182-533

SCREW,Sl Pan Hd, #6 - 32 x 1/4"

- #6-32 x 1/4" rd. hd.

3шт.

15

129-640

NUT,#6-32, Brass

- #6-32 hex

10шт.

16

223-33

FUSE,1 Amp, Type 3AG

- buss, 1 amp. (dome light)

1шт.

17

223-35

FUSE,8 Amp, Type 3AG

- buss, 8 amp. (wiper)

1шт.

18

223-15

FUSE,15 Amp, Type 3AG

- buss, 15 amp. (blower and cigar lighter)

2шт.

20

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

21

A42660

SWITCH

- wiper motor

1шт.

22

A42622

SWITCH

- blower motor (Order L73617)

1шт.

23

A42623

CONTROL

- cab temperature

1шт.

24

A42624

ELECTRICAL WIRE

WIRE - blower switch to temp. control, 6" black

1шт.

25

F63661

ELECTRICAL WIRE

WIRE - temp. control to comp. clutch, 230" 1. blue

1шт.

26

F63719

TUBE

- shielding, temperature control

1шт.

27

F63894

LAMP

LIGHT - dome

1шт.

28

F63760

SWITCH

- dome light

1шт.

29

A62456

RADIO

KIT - radio (See Figure 314)

1шт.

30

NSS

NOT SOLD SEPARAT

BLOWER - (See Figure 310)

1шт.

31

REF

INSTRUCTION

MOTOR - windshield wiper (See Figure 308)

1шт.
