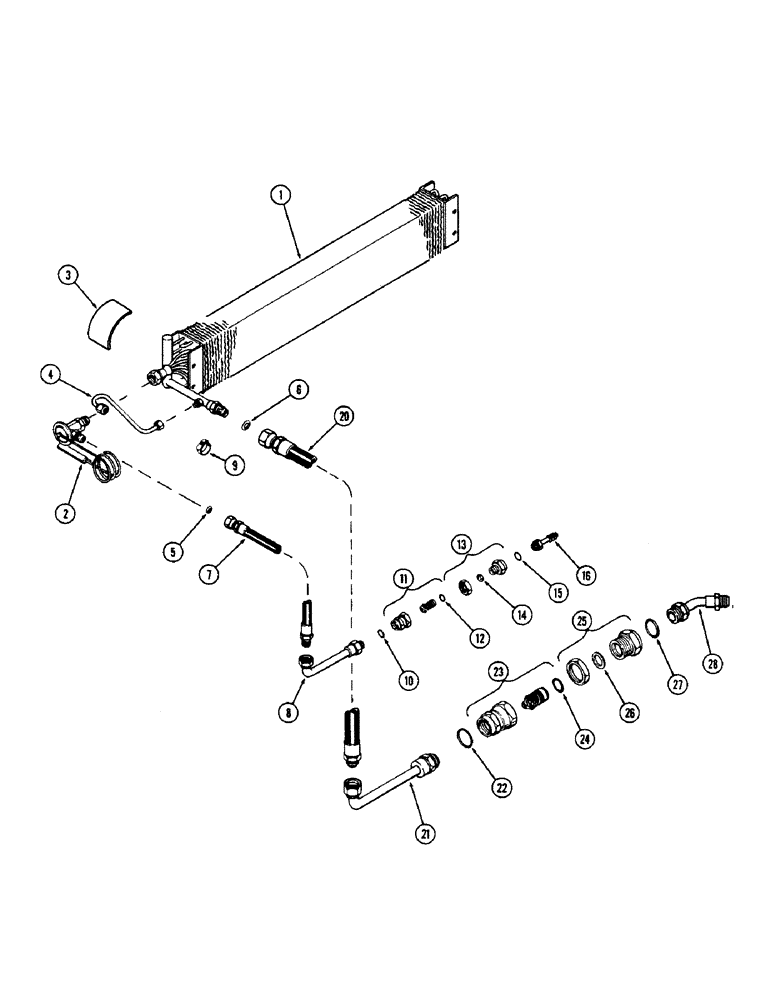

Запчасти Case IH 1175 (292) - CAB, AIR CONDITIONER, COOLING SYSTEM, USED CAB SERIAL NUMBER 7814176 TO 7821251 (09) - CHASSIS

1

F63646

EVAPORATOR

- air conditioner evaporation

1шт.

2

F63726

VALVE

- expansion

1шт.

3

NSS

NOT SOLD SEPARAT

INSULATION - valve (Order A42902)

1шт.

A42902

SEALING STRIP

INSULATION - 2-1/2" wide x 30 ft. roll

1шт.

4

F63727

TUBE

- equalizer

1шт.

5

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

6

222-995

SEALING WASHER,15.88mm ID

- 45 Degrees, #10 copper

1шт.

7

F63753

HOSE

- high side, 75-1/2"

1шт.

8

F63668

TUBE,0.38" OD x 9.25" L

- high side hose to coupling

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - valve tube to core, 9/16" to 1-1/16"

2шт.

10

A61195

O-RING,0.364" ID x 0.5" OD

"O" RING - coupling, 23/64 x 1/2 x 1/16"

2шт.

11

A42663

COUPLING,1/2" - 20 NPT

COUPLING - cab, Includes: Ref. 12

1шт.

12

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

"O" RING - coupling piston

1шт.

13

A61196

COUPLING, BREAK AWAY

COUPLING - tractor, Includes: Ref. 14

1шт.

14

A42667

GASKET

- coupling

1шт.

15

A61195

O-RING,0.364" ID x 0.5" OD

"O" RING - coupling, 23/64 x 1/2 x 1/16"

1шт.

16

A65796

ADAPTOR - receiver drier hose

1шт.

20

F63754

HOSE

- low side, 78-5/16"

1шт.

21

F63380

TUBE

-, Serial Range: hose-coupling

1шт.

22

A61197

O-RING,1.78mm Thk x 27mm ID

"O" RING - coupling, 1-3/64 x 1-3/16 x 1/16"

2шт.

23

A42664

COUPLING, BREAK AWAY

COUPLING - cab, Includes: Ref. 24

1шт.

24

A42666

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING - coupling piston

1шт.

25

A61194

COUPLING, BREAK AWAY

COUPLING - tractor half, Includes: Ref. 26

1шт.

26

A42668

GASKET

- coupling

1шт.

27

A61197

O-RING,1.78mm Thk x 27mm ID

"O" RING - coupling to adaptor, 1-3/64 x 1-3/16 x 1/16"

1шт.

28

A65788

ADAPTER

ADAPTOR - compressor hose

1шт.
