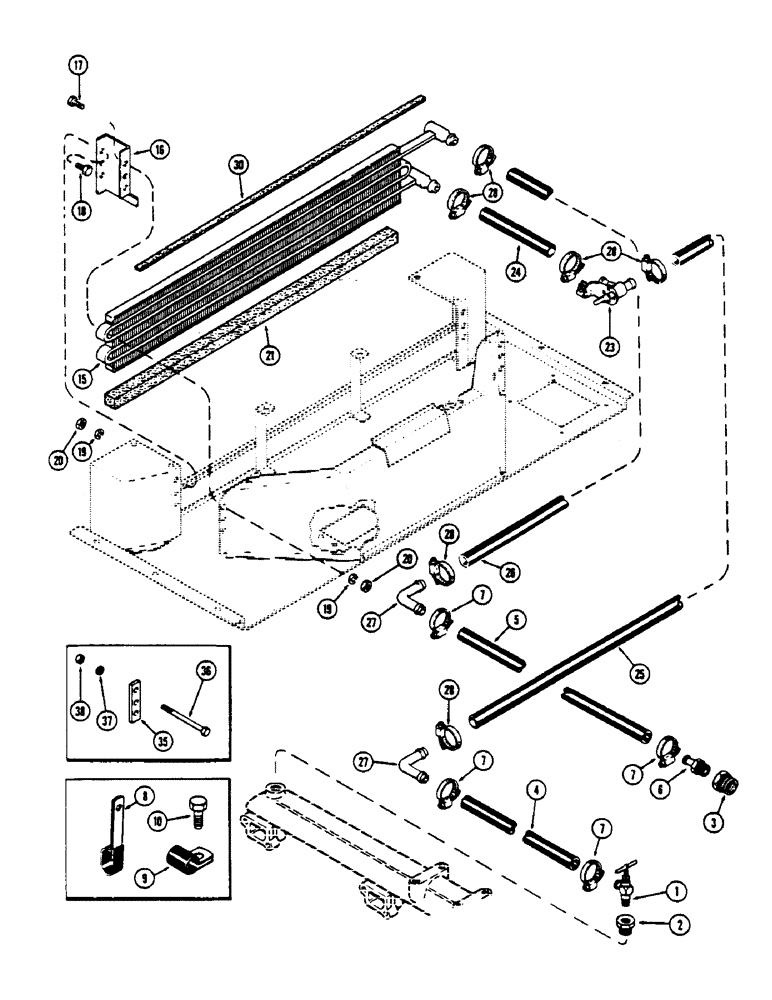

Запчасти Case IH 1175 (284) - CAB, HEATER, USED PRIOR TO CAB SERIAL NUMBER 7814176 (09) - CHASSIS

A60153

ATTACHMENT - heater (Mach. Item), Includes: Ref. 1 - 10

1шт.

A60125

HEATER - attaching parts (Mach. Item)

1шт.

1

A16764

VALVE

- water manifold

1шт.

2

221-1059

BUSHING - reducing, 3/4 to 3/8" (at manifold)

1шт.

3

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducing, 3/4 to 1/2" (at water pump)

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater to water manifold, 41" (Order A42610)

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE - heater to water pump, 55" (Order A42610)

1шт.

6

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose to water pump

1шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

4шт.

8

A60824

CLIP

- hose

1шт.

9

R14668

CLAMP

- hose

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Used w/gas only) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

A60154

HEATER - field kit (Mach. Item), Includes: Ref. 15 - 28

1шт.

15

A42611

CORE

- heater

1шт.

16

A42612

FILLER

- plenum, R.H. (used w/o air cond.)

1шт.

16

A42613

FILLER

- plenum, L.H. (used w/o air cond.)

1шт.

17

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

- 1/4 x 1-1/4" N.C. hex.

3шт.

18

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

21

A42912

FOAM - filler, 1 x 1 x 26-5/8"

1шт.

23

A42609

VALVE

- heater (Order F63865)

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE - heater (6-3/4" long) (Order A42610)

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE - heater (69-1/2" long) (Order A42610)

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE - heater (75-1/2" long) (Order A42610)

1шт.

27

A60823

ELBOW

- hose

2шт.

28

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

6шт.

A42614

CABLE

- heater control (See Figures 302 and 304)

1шт.

30

A42905

FOAM

- core top, 1/8 x 1/2 x 50' roll

1шт.

345-38

TAPE - drip pan holes (7" long) (cut as req'd)

2шт.

35

F63382

CABINET

SPACER - core (used w/heater and air cond.)

2шт.

36

113-43

BOLT - 1/4 x 4-1/2" N.C. hex.

4шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

A42610

LARGE HOSE

HOSE - heater, 5/8 x 1" x 50'

1шт.
