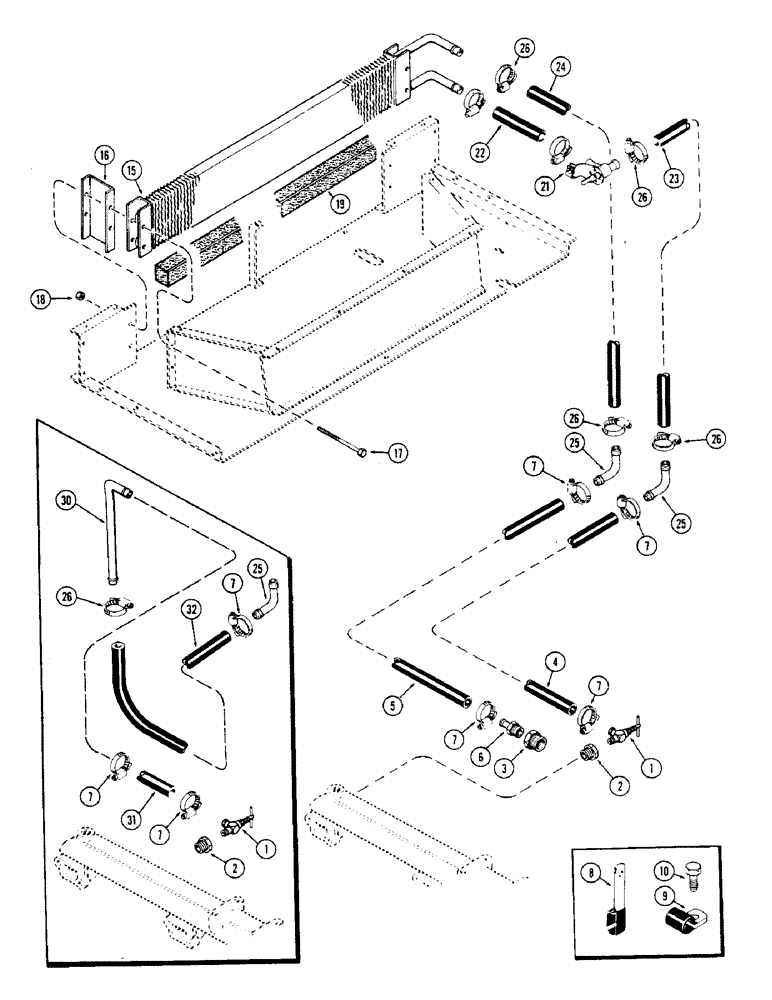

Запчасти Case IH 1175 (282) - CAB, HEATER, FIRST USED CAB SERIAL NUMBER 7814176 (09) - CHASSIS

A66077

ATTACHMENT - heater (Mach. Item), Includes: Ref. 1 - 10

1шт.

A60125

HEATER - attaching parts (Mach. Item)

1шт.

1

A16764

VALVE

- water manifold

1шт.

2

221-1059

BUSHING - reducing, 3/4 to 3/8" (at manifold)

1шт.

3

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducing, 3/4" to 1/2" (at water pump) (Used w/A59220 water pump) (See Figure 009A)

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - cab to water manifold, 41" (Order A42610) (See Ref. 30, 31 and 32)

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE - cab to water pump, 55" (Order A42610)

1шт.

6

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose to water pump (1/2" P.T.)

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

4шт.

8

A60824

CLIP

- hose

1шт.

9

R14668

CLAMP

- hose

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(w/gas only) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

F89881

HEATER - field kit (Mach. Item), Includes: Ref. 15 - 26

1шт.

15

F63647

CORE

- heater

1шт.

16

F63748

BRACKET

FILLER - plenum, R.H. and L.H.

2шт.

17

113-45

BOLT,Hex, 1/4" - 20 x 5", Gr 5

- 1/4 x 5" N.C. hex

4шт.

18

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" N.C. hex

4шт.

19

F63756

FILLING STRIP

FOAM - filler, 1-1/2" sq. x 30"

1шт.

21

F63865

VALVE

- heater

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater (6-3/4" long) (Order A42610)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - heater, red (69-1/2" long) (Order A42610)

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE - heater, black (75-1/2" long) (Order A42610)

1шт.

25

A60823

ELBOW

- hose

2шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

6шт.

A42614

CABLE

- heater control (See Figure 300)

1шт.

30

A137068

TUBE - heater (Production Only)

1шт.

31

A135900

MAKING-UP

HOSE - heater tube to valve, 3" long (Prod. Only) (See A42610)

1шт.

32

A135901

HOSE - heater to tube, 18" long (Prod. Only) (See A42610)

1шт.

A42610

LARGE HOSE

HOSE - heater, 5/8 x 1" x 50'

1шт.
