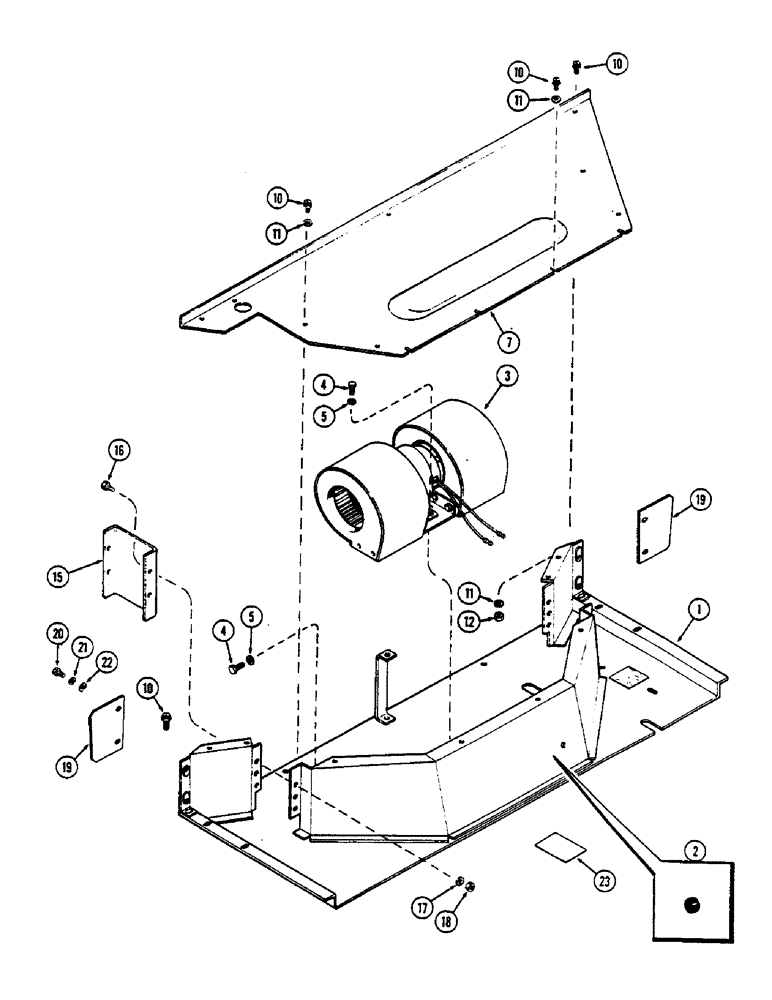

Запчасти Case IH 1175 (278) - CAB, PLENUM, WITHOUT HEATER OR AIR CONDITIONER, FIRST USED CAB SERIAL NUMBER 7814176 (09) - CHASSIS

1

F89840

HEATER

PLENUM - cab

1шт.

2

A42502

GROMMET

- blower wire

1шт.

3

NSS

NOT SOLD SEPARAT

BLOWER ASSY. - cab air (See Figure 310)

1шт.

4

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" hex. sltd. washer hd.

6шт.

5

193-6

LOCK WASHER,Ext Tooth, #10

WASHER - Shakeproof, #10 int.

6шт.

7

F63745

HEATER

COVER - plenum

1шт.

8

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-16 x 1/2" hex. sltd. washer hd.

4шт.

10

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-16 x 1/2" hex. sltd. washer hd.

9шт.

11

195-511

WASHER,#10

- 13/64 x 15/32 x 1/16"

9шт.

12

129-17

NUT,Hex, #10 - 24

NUT - hex. #10-24

9шт.

15

F63749

BRACKET

FILLER - plenum, R.H. and L.H.

2шт.

16

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

8шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

19

F63250

SEAL

-, Serial Range: plenum-cab

2шт.

20

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

22

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

23

345-38

TAPE - drip pan holes (7-1/2" long, Serial Range: cut-size)

1шт.
