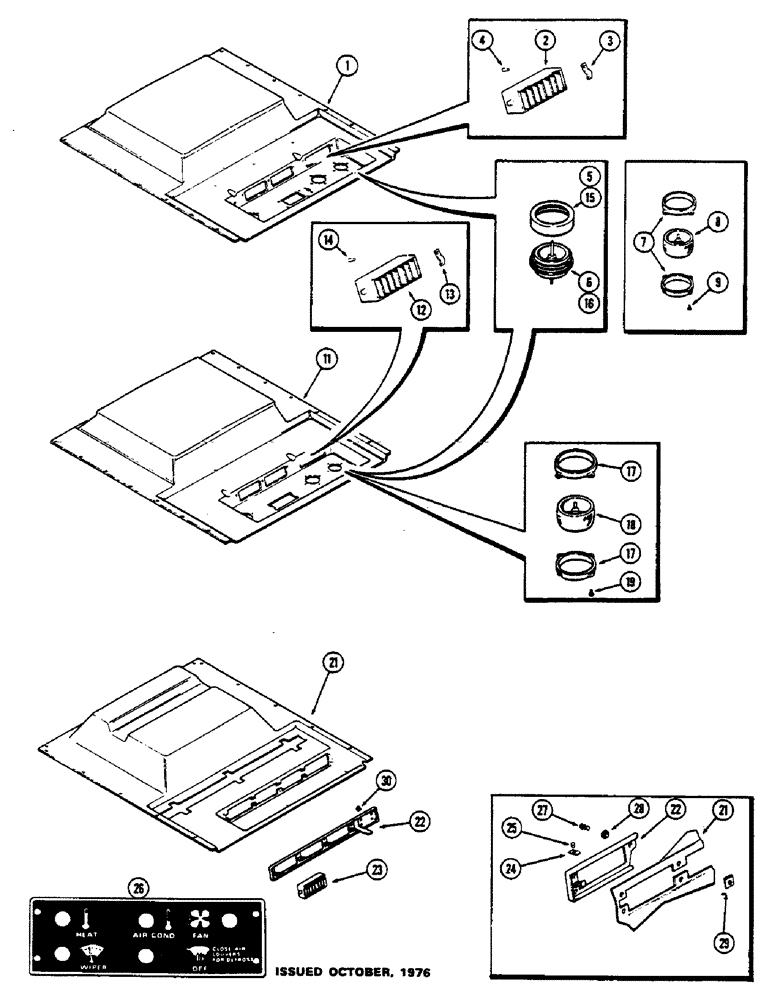

Запчасти Case IH 1175 (276) - CAB, LOUVERS, FIRST USED CAB SERIAL NUMBER 7821251 (09) - CHASSIS

1

F63899

NO LONGER SERVICED

HEADLINER ASSY. - cab

1шт.

2

F89673

GUARD

LOUVER - air deflection

2шт.

3

A42575

CLIP

- louver mounting

4шт.

4

151-526

RIVET,Pop, 1/8" x .337"

4шт.

5

F64131

RING

- louver retaining (Replaces F63776)

3шт.

6

F64132

GUARD

BALL - louver (Replaces F63777)

3шт.

7

F63776

FRAME

- ball lourver (Order F64131 and F64132)

6шт.

8

F63777

BALL

LOUVER - ball (Order F64131 and F64132)

3шт.

9

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8 x 5/8" Phillips self-tapping

12шт.

11

F89842

LINING

HEADLINER ASSY. - cab

1шт.

12

F89673

GUARD

LOUVER - air deflection

2шт.

13

A42575

CLIP

- louver mounting

4шт.

14

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8"

4шт.

15

F64131

RING

- louver retaining (Replaces F63776)

3шт.

16

F64132

GUARD

BALL - louver (Replaces F63777)

3шт.

17

F63776

FRAME

- ball louver (Order F64131 and F64132)

6шт.

18

F63777

BALL

LOUVER - ball (Order F64131 and F64132)

3шт.

19

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8 x 5/8" Phillips, self-tapping

12шт.

21

F89664

CAB

HEADLINER ASSY. - cab

1шт.

22

A42552

PANEL ASSY. - control (Replaces A42641), Includes: Ref. 23 - 26

1шт.

23

F89673

GUARD

LOUVER - control panel

3шт.

24

A42575

CLIP

- louver mounting

6шт.

25

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8"

6шт.

26

321-1914

DECAL

- control panel

1шт.

27

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

- #10 x 3/4" N.C. Phillips

10шт.

28

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16"

4шт.

29

131-861

SPRING NUT,Tinn, U, #10-24

10шт.

30

353-403

PLUG,Dome, .437" hole, Nylon

Panel, Switch holes Dome, .437" hole, Nylon

1шт.
