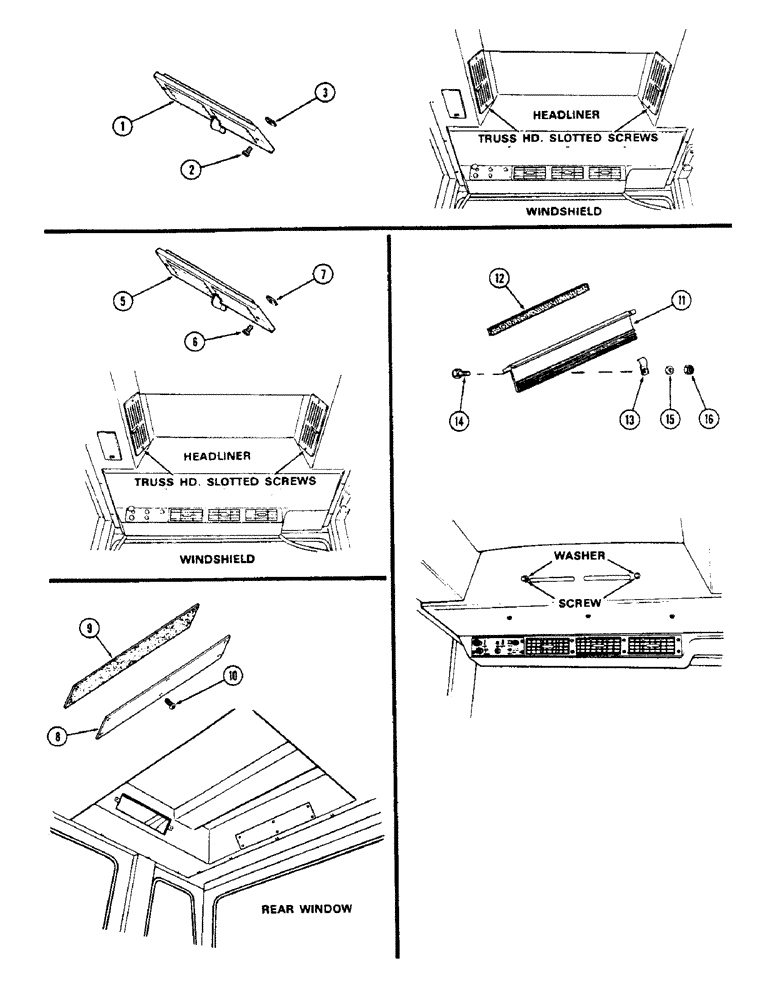

Запчасти Case IH 1175 (274) - CAB, RECIRCULATION GRILLE, USED WITH REAR MOUNTED VALVE, USED CAB SERIAL NUMBER 7806201 THRU 7808979 (09) - CHASSIS

A44650

ATTACHMENT

KIT - recirculation grille, Includes: Ref. 1 - 3

1шт.

1

A44646

GRILLE

ASSY. - recirculation

2шт.

2

187-1086

SCREW - #10 x 3/4" Truss hd. self-tapping

4шт.

3

131-606

SPRING NUT,Tinn, U, #10

- #10 "U" Type Tinnerman

4шт.

A44649

ATTACHMENT

KIT - cab air recirculation, Includes: Ref. 5 - 16

1шт.

5

A44646

GRILLE

ASSY. - recirculation

2шт.

6

187-1086

SCREW - #10 x 3/4" Truss hd. self-tapping

4шт.

7

131-606

SPRING NUT,Tinn, U, #10

- #10 "U" Type Tinnerman

4шт.

8

A44647

PLATE

- rear valve cover

1шт.

9

A44648

GASKET

- plate

1шт.

10

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8 x 5/8" Phillips hd. self-tapping

6шт.

11

F89764

FLAP

VALVE - auto-pressurization

1шт.

12

F63261

SEAL

- valve

1шт.

13

F63260

CLIP

- hinge pin

2шт.

14

163-11

SCREW,Hex, #10 - 24 x 9/16"

- #10-24 x 9/16" hex. hd. mach.

2шт.

15

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64"

2шт.

16

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

2шт.

345-45

TAPE

- duct, 2 x 20" vinyl

1шт.
