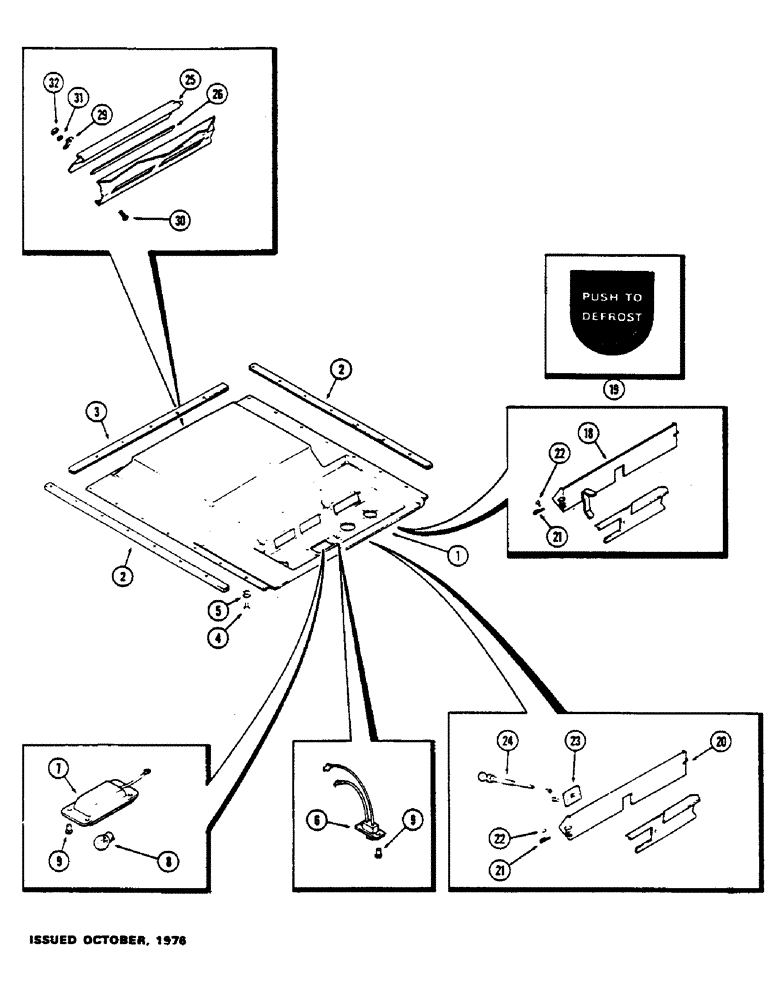

Запчасти Case IH 1175 (268) - CAB, HEADLINER, FIRST USED CAB SERIAL NUMBER 7821251 (09) - CHASSIS

1

F63899

NO LONGER SERVICED

HEADLINER - cab

1шт.

2

F63800

MOLDING

TRIM - side, headliner

2шт.

3

F63799

MOLDING

TRIM - rear, headliner

1шт.

4

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10-16 x 3/4" Phillips drive

19шт.

5

F63765

WASHER

- finishing

19шт.

6

F63760

SWITCH

- dome light

1шт.

7

F63894

LAMP

LIGHT ASSY. - dome, Includes: Ref. 8

1шт.

8

B50217

BULB

- dome light

1шт.

9

151-526

RIVET,Pop, 1/8" x .337"

6шт.

18

F89893

BRACKET

DOOR ASSY. - defroster (lever controlled)

1шт.

19

321-2995

DECAL

- defroster control arm

1шт.

20

F89925

BRACKET

DOOR ASSY. - defroster (Cable controlled)

1шт.

21

A42575

CLIP

- froster

2шт.

22

151-526

RIVET,Pop, 1/8" x .337"

2шт.

23

F63902

PLATE

PANEL - defroster

1шт.

24

F63892

LEVER

CONTROL - defroster

1шт.

25

F89764

FLAP

VALVE - pressure adjusting (rear mounted)

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - valve, 11" (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50' roll)

1шт.

29

F63810

CLIP

- valve hinge

2шт.

30

163-11

SCREW,Hex, #10 - 24 x 9/16"

- #10 x 9/16" N.C. hex.

2шт.

31

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64"

2шт.

32

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.
