(260) - INSULATION, FIREWALL, FIRST USED TRACTOR SERIAL NUMBER 8736722

Запчасти Case IH 1175 (260) - INSULATION, FIREWALL, FIRST USED TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS

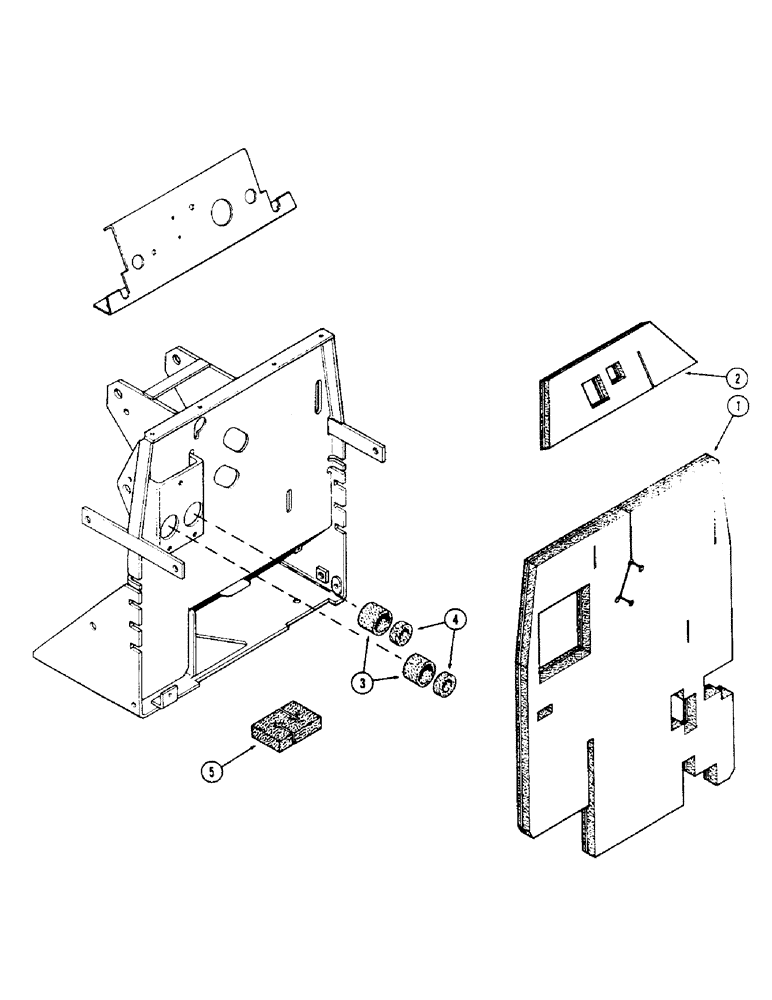

Схема запчастей Case IH 1175 - (260) - INSULATION, FIREWALL, FIRST USED TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS
2
1
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A145163

PAD

- acoustical, firewall (Replaces A66556)

1шт.

2

A145162

PAD

- acoustical, firewall baffle (Replaces A66555)

1шт.

3

A61288

COLLAR

- master cylinder air seal, outer

2шт.

4

A61287

COLLAR

- master cylinder air seal, inner

2шт.

5

A64965

SEAL

- firewall sealing

4шт.
