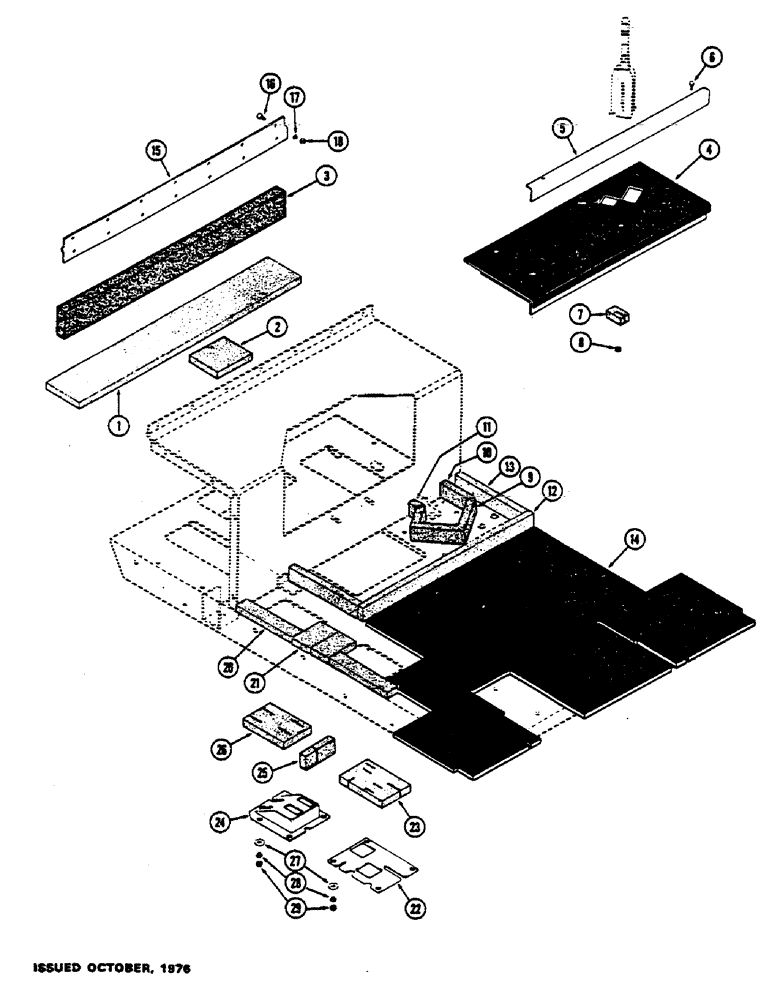

Запчасти Case IH 1175 (257A) - INSULATION, PLATFORM, USED TRACTOR SERIAL NUMBERS 8736722 TO 8755998 (09) - CHASSIS

1

A61699

SEAL

- fuel tank sealing, to be attached with adhesive 345-22

1шт.

2

A62594

FOAM

- fuel tank, top groove, to be attached with adhesive 345-22

1шт.

3

A66558

FOAM

- fuel tank, cover filler, to be attached with adhesive 345-22

1шт.

4

A64991

MAT

- floor, rear, to be attached with adhesive 345-22

1шт.

5

A62461

FLOOR

ANGLE - floor mat retaining

1шт.

6

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW - 1/4 x 3/4" sltd. self-drill and tap

2шт.

7

A60819

FOAM

- hand brake sealing

1шт.

8

A60818

GROMMET

- hand brake cable

1шт.

9

A62674

FOAM

- hand brake sealing, to be attached with adhesive 345-22

1шт.

10

A62675

FOAM

- hand brake sealing, to be attached with adhesive 345-22

1шт.

11

A62676

FOAM - hand brake sealing, to be attached with adhesive 345-22

1шт.

12

A60828

FOAM

- seat support sealing, front, to be attached with adhesive 345-22

1шт.

13

A60827

FOAM

- seat support sealing, sides, to be attached with adhesive 345-22

2шт.

14

A60820

MAT

- floor, front, to be attached with adhesive 345-22 (Order A135685)

1шт.

20

A60814

FOAM

- sealing, console bottom, to be attached with adhesive 345-22

2шт.

21

A60815

FOAM

- sealing, console bottom, to be attached with adhesive 345-22

2шт.

22

A60810

COVER ASSY. - console front, Includes: Ref. 23

1шт.

23

A60812

FOAM

- sealing, cover, to be attached with adhesive 345-22

1шт.

24

A61088

COVER ASSY. - console, rear, Includes: Ref. 25 and 26

1шт.

25

A60807

FOAM

- sealing, cover front, to be attached with adhesive 345-22

1шт.

26

A61090

FOAM

- sealing, cover top, to be attached with adhesive 345-22

1шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

29

92-5

LOCK WASHER,5/16"

8шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

8шт.
