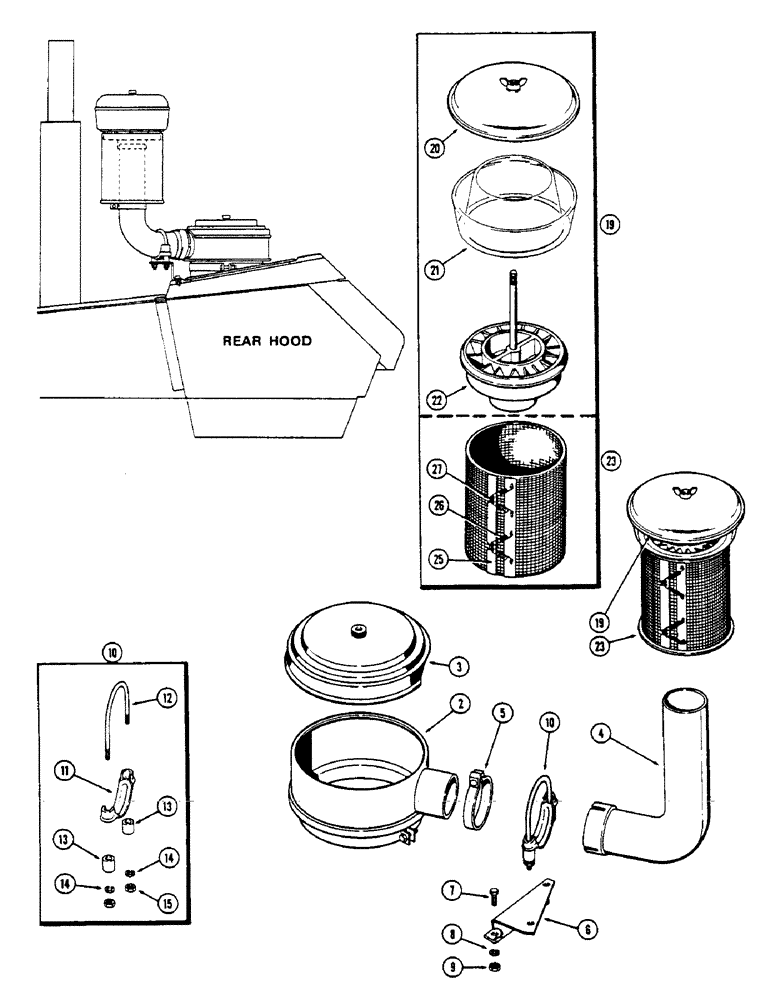

Запчасти Case IH 1175 (016) - (451B) TURBO DIESEL ENGINE, PRE-CLEANER, WITHOUT CAB (02) - ENGINE

A62794

PRE-CLEANER ATTACHMENT - (Mach. Item), Includes: Ref. 2 - 27

1шт.

2

A62762

ADAPTER - air cleaner

1шт.

3

A62761

COVER

- adapter

1шт.

4

A62795

TUBE - inlet, pre-cleaner

1шт.

5

A62878

CLAMP

-, Serial Range: tube-adapter

1шт.

6

A62796

SUPPORT - tube

1шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Support Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

10

A62865

CLAMP

ASSY. - tube support, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

SADDLE - bolt

1шт.

12

NSS

NOT SOLD SEPARAT

"U" BOLT - clamp

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - clamp (13/32 x 1/2 x 1-7/64")

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

19

A43486

PRECLEANER

PRE-CLEANER ASSY., Includes: Ref. 20 - 22

1шт.

20

A42465

COVER

ASSY. - pre-cleaner

1шт.

21

A42467

HOUSING

BOWL - plastic, collector

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE - pre-cleaner

1шт.

23

A43488

PRESCREENER

PRE-SCREENER ASSY., Includes: Ref. 25 - 27

1шт.

25

A42286

SCREEN

ASSY., Includes: Ref. 26 and 27

1шт.

26

A22780

SPRING

- screen clamp

4шт.

27

A22781

CLIP

CLAMP - anchor

2шт.
