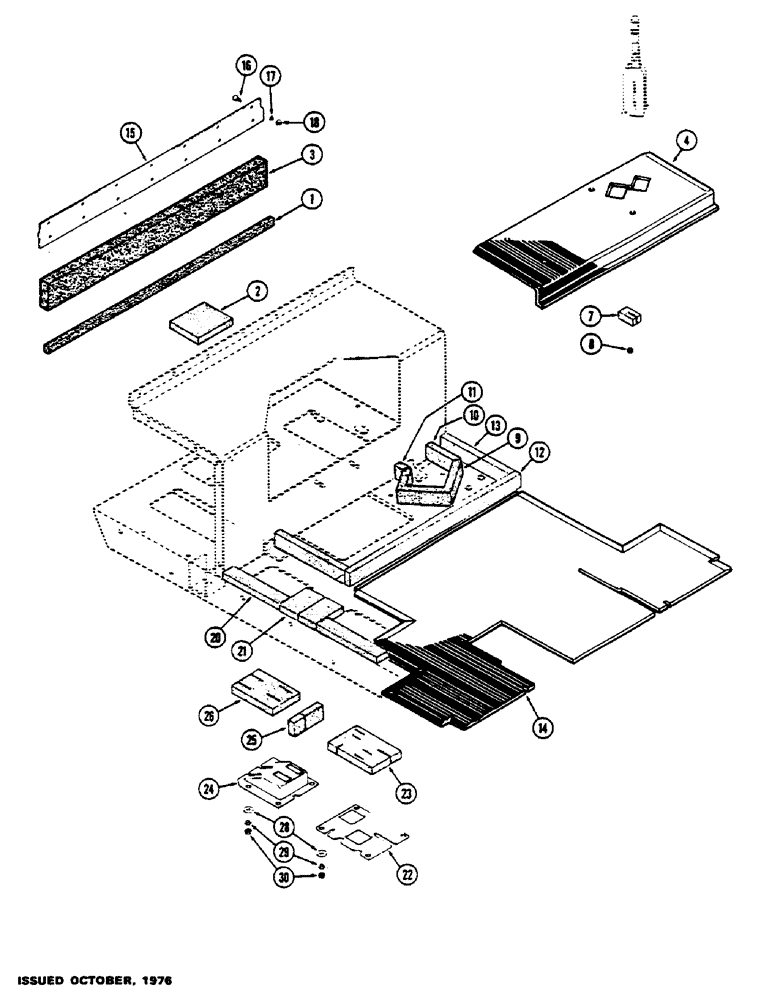

Запчасти Case IH 1175 (256) - INSULATION, PLATFORM, FIRST USED TRACTOR SERIAL NUMBER 8755998 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
A139751
FILLING STRIP
FOAM - fuel tank sealing, to be attached with adhesive 345-22 (Replaces A61699)
1шт.
2
A62594
FOAM
- fuel tank, top groove, to be attached with adhesive 345-22
1шт.
3
A66558
FOAM
- fuel tank, cover filler, to be attached with adhesive 345-22
1шт.
4
A135686
MAT
- floor, rear, to be attached with adhesive 345-22
1шт.
7
A60819
FOAM
- hand brake sealing
1шт.
8
A60818
GROMMET
- hand brake cable
1шт.
9
A62674
FOAM
- hand brake sealing, to be attached with adhesive 345-22
1шт.
10
A62675
FOAM
- hand brake sealing, to be attached with adhesive 345-22
1шт.
11
A62676
FOAM - hand brake sealing, to be attached with adhesive 345-22
1шт.
12
A60828
FOAM
- seat support sealing, front, to be attached with adhesive 345-22
1шт.
13
A60827
FOAM
- seat support sealing, sides, to be attached with adhesive 345-22
2шт.
14
A135685
MAT
- floor, front, to be attached with adhesive 345-22
1шт.
15
A62688
PLATE
- cab to fuel tank cover
1шт.
16
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
14шт.
17
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
14шт.
18
9635082
NUT,5/16" - 18, Gr 5
14шт.
20
A60814
FOAM
- sealing, console bottom, to be attached with adhesive 345-22
2шт.
21
A60815
FOAM
- sealing, console bottom, to be attached with adhesive 345-22
2шт.
22
A60810
COVER ASSY. - console front, Includes: Ref. 23
1шт.
23
A60812
FOAM
- sealing, cover, to be attached with adhesive 345-22
1шт.
24
A61088
COVER ASSY. - console, rear, Includes: Ref. 25 and 26
1шт.
25
A60807
FOAM
- sealing, cover front, to be attached with adhesive 345-22
1шт.
26
A61090
FOAM
- sealing, cover top, to be attached with adhesive 345-22
1шт.
28
95-5
WASHER,3/8" x 7/8" x .083"
- 3/8 x 7/8 x 5/64"
4шт.
29
92-5
LOCK WASHER,5/16"
8шт.
30
9635082
NUT,5/16" - 18, Gr 5
- 5/16 N.C. hex.
8шт.
Выбрано товаров: 26
